Here you will find all available parts and drawings of the 'Festool 489851 ( PS200E230V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

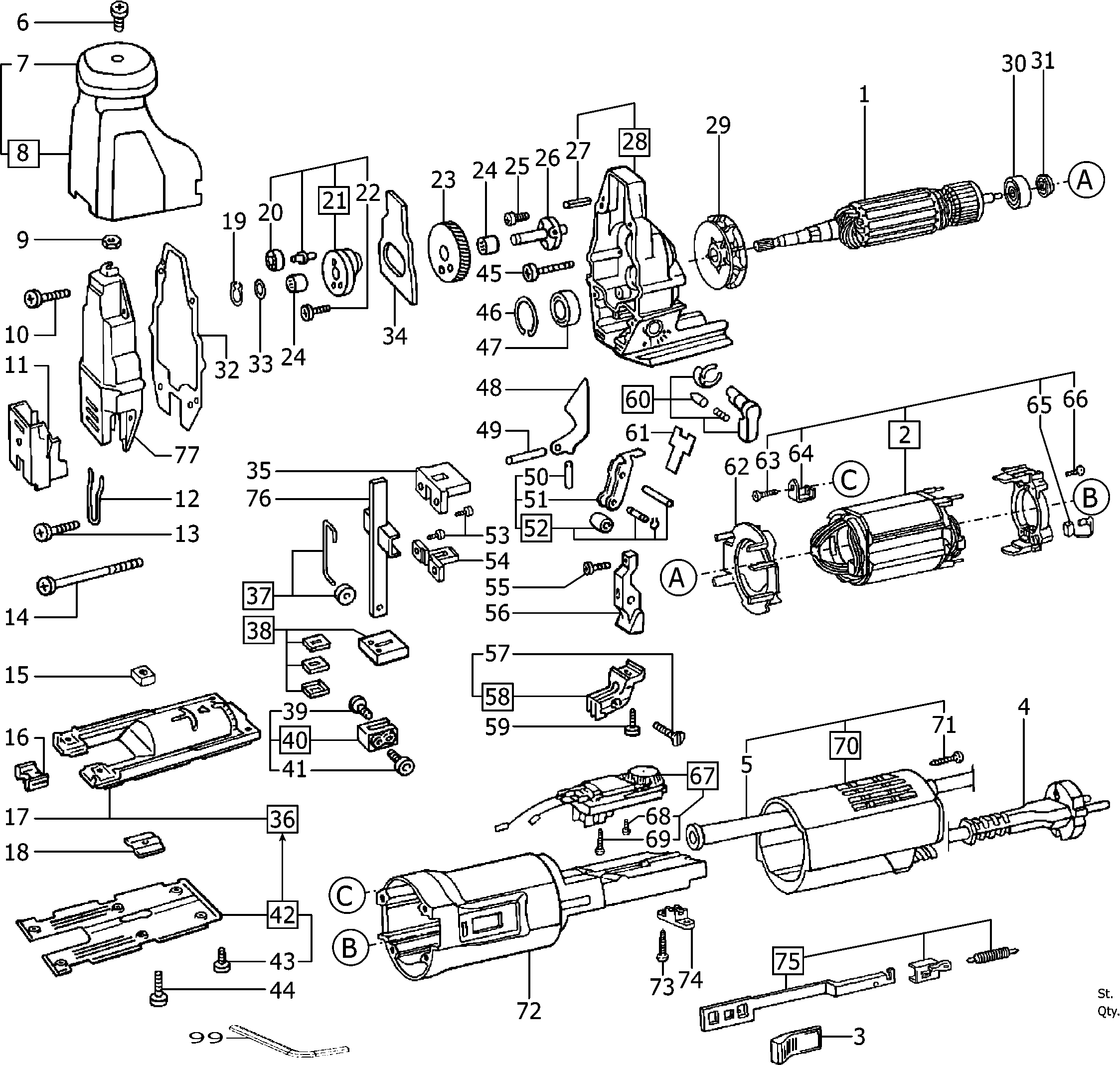

Technical drawing of model Festool 489851 ( PS200E230V )
Spare parts list of model Festool 489851 ( PS200E230V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 496040 | |||
| FIELD PS 200 E | ||||
| 2 | 489355 | 75.99 | 91.95 | |
| SLIDE SWITCH RO 2 E | ||||
| 3 | 446002 | 1.51 | 1.83 | |
| CABLE WITH PLUG AP 55 E DIN-H05RN-F | ||||
| 4 | 457410 | 24.32 | 29.43 | |
| Cable sleeve PS 2 | ||||
| 5 | 445738 | 1.85 | 2.24 | |
| Oval head screw DIN 7985-M4x8-4.8 | ||||
| 6 | 203806 | 1.39 | 1.68 | |
| TOP CAP PS 2 E OBEN | ||||
| 7 | 442506 | 3.36 | 4.07 | |
| CAP PS 2 E VOLLST. | ||||
| 8 | 487849 | 36.03 | 43.60 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 9 | 200715 | 1.39 | 1.68 | |
| Oval head screw M4x12-TAPTITE-T15 | ||||
| 10 | 228509 | 1.39 | 1.68 | |
| CHIP GUARD. PS 2 E | ||||
| 11 | 448596 | 17.06 | 20.64 | |
| PROTECTIVE BOW PS 2 E | ||||
| 12 | 449929 | 2.18 | 2.64 | |
| Oval head screw DIN 7985-M4x4-4.8 | ||||
| 13 | 400440 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x50-KT15 | ||||
| 14 | 400005 | 1.39 | 1.68 | |
| Square nut DIN 557-M5-05 | ||||
| 15 | 228520 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 16 | 483372 | |||
| BASE PS 2 E | ||||
| 17 | 445421 | 18.03 | 21.82 | |
| CLAMP BRACKET PS 2 E | ||||
| 18 | 442507 | 1.45 | 1.75 | |
| Circlip DIN 471-8x0,8 | ||||
| 19 | 200617 | 1.39 | 1.68 | |
| BEARING L-1150 NMB | ||||
| 20 | 400004 | 11.54 | 13.96 | |
| ECCENTER PS 2 E | ||||
| 21 | 487842 | 71.27 | 86.24 | |
| Ch. head screw DIN 912-M4x16-12.9 | ||||
| 22 | 400096 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 23 | 444805 | |||
| Needle sleeve HK 0810 159.271 | ||||
| 24 | 400008 | 3.77 | 4.56 | |
| Oval head screw M4x10-TAPTITE-T15 | ||||
| 25 | 228582 | 1.39 | 1.68 | |
| STEEL SLEEVE PS 2 E | ||||
| 26 | 442496 | 22.51 | 27.24 | |
| No information available, not orderable | ||||
| 27 | xxx | |||
| GEAR HOUSING PS 2 E VOLLST. | ||||
| 28 | 487851 | 71.51 | 86.53 | |
| Fan RO 2 E | ||||
| 29 | 485108 | 4.62 | 5.59 | |
| Ball bearing 626 DD M5MTLY 121 | ||||
| 30 | 228672 | 4.49 | 5.43 | |
| Solenoid ring RO 2 E | ||||
| 31 | 444018 | 2.11 | 2.55 | |
| GASKET PS 2 E | ||||
| 32 | 442557 | 1.45 | 1.75 | |
| Supporting ring DIN 988-S-8x14 | ||||
| 33 | 400009 | 1.39 | 1.68 | |
| ECCENTRIC PLATE PS 2 E | ||||
| 34 | 442494 | 16.82 | 20.35 | |
| BRONZE GUIDE BU PS 2 E | ||||
| 35 | 453072 | 11.20 | 13.55 | |
| Base PS 200 E | ||||
| 36 | 496114 | 37.39 | 45.24 | |
| ROLLER PS 2 E | ||||
| 37 | 487844 | 20.09 | 24.31 | |
| No information available, not orderable | ||||
| 38 | xxx | |||
| Ch. head screw DIN 912-M5x12-12.9 | ||||
| 39 | 400095 | 1.39 | 1.68 | |
| CLAMP SHOE PS 2 E | ||||
| 40 | 487845 | 45.86 | 55.49 | |
| Ch. head screw DIN 912-M5x8-12.9 | ||||
| 41 | 400576 | 1.39 | 1.68 | |
| PLASTIC BASE PL PS 2 E | ||||
| 42 | 487841 | 17.30 | 20.93 | |
| Ch. head screw M4x7-TAPTITE-T15 | ||||
| 43 | 400062 | 1.39 | 1.68 | |
| Ch. head screw DIN 912-M5x16-8.8 | ||||
| 44 | 228643 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 45 | 228663 | 1.39 | 1.68 | |
| Circlip DIN 472-22x1 | ||||
| 46 | 204471 | 1.39 | 1.68 | |
| BALL BEARING 608 2Z C3 DIN 625 | ||||
| 47 | 228559 | 4.30 | 5.20 | |
| ECCENTRIC LEVER PS 2 E | ||||
| 48 | 442493 | 3.50 | 4.24 | |
| SCREW 4 M6x24 DIN 6325 | ||||
| 49 | 203748 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 50 | 200757 | |||
| No longer available, no replacement | ||||
| 51 | 442500 | |||
| No information available, not orderable | ||||
| 52 | xxx | |||
| Oval head screw M4x12-TAPTITE-T15 | ||||
| 53 | 228509 | 1.39 | 1.68 | |
| BRONZE GUIDE BU PS 2 E | ||||
| 54 | 448475 | 13.43 | 16.25 | |
| Oval head screw M4x12-TAPTITE-T15 | ||||
| 55 | 228509 | 1.39 | 1.68 | |
| BRACKET PS 2 E | ||||
| 56 | 442501 | 5.21 | 6.30 | |
| C-h count. scre DIN 964-M3x8-8.8-TUF | ||||
| 57 | 400077 | 1.39 | 1.68 | |
| BLADE GUIDE HM PS 2 E VOLLST. | ||||
| 58 | 487847 | 50.70 | 61.35 | |
| Oval head screw M4x12-TAPTITE-T15 | ||||
| 59 | 228509 | 1.39 | 1.68 | |
| PEND. ADJ. KNOB PS 2 E | ||||
| 60 | 487848 | 34.24 | 41.43 | |
| No information available, not orderable | ||||
| 61 | xxx | |||
| HOUSING INSERT RO 2 E | ||||
| 62 | 442901 | 4.42 | 5.35 | |
| Oval head screw PT-3,0x12-PZV | ||||
| 63 | 228717 | 1.39 | 1.68 | |
| CLIP RO 2 E | ||||
| 64 | 439918 | 1.39 | 1.68 | |
| Carbon brush RO 150 E ET-BG | ||||
| 65 | 492629 | 10.56 | 12.78 | |
| Oval head screw PT-1,8x10-PZV | ||||
| 66 | 447573 | 1.39 | 1.68 | |
| No longer available, no replacement | ||||
| 67 | 489356 | |||
| Oval head screw PS 2 E M3x 6,5 | ||||
| 68 | 228718 | 1.39 | 1.68 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 69 | 228663 | 1.39 | 1.68 | |
| CAP RO 2 E | ||||
| 70 | 487674 | 22.99 | 27.82 | |
| Oval head screw PT-3,5x20-PZV | ||||
| 71 | 445743 | 1.39 | 1.68 | |
| MOTOR HOUSING RO 2 E | ||||
| 72 | 487146 | 16.21 | 19.61 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 73 | 228663 | 1.39 | 1.68 | |
| CABLE CLAMP RO 2 E | ||||
| 74 | 439662 | 1.39 | 1.68 | |
| SWITCH ROD RAS 115.04 E BASIC UNIT | ||||
| 75 | 487794 | 14.70 | 17.79 | |
| PISTON ROD PS 2 E COMPL. | ||||
| 76 | 489267 | 37.15 | 44.95 | |
| GEAR COVER PS 2 E | ||||
| 77 | 453841 | 31.10 | 37.63 | |
| Screw driver SW 4 DIN 911 | ||||
| 99 | 202751 | 1.39 | 1.68 | |
