Here you will find all available parts and drawings of the 'Festool 10016584 (PLANEXLHS-E225230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

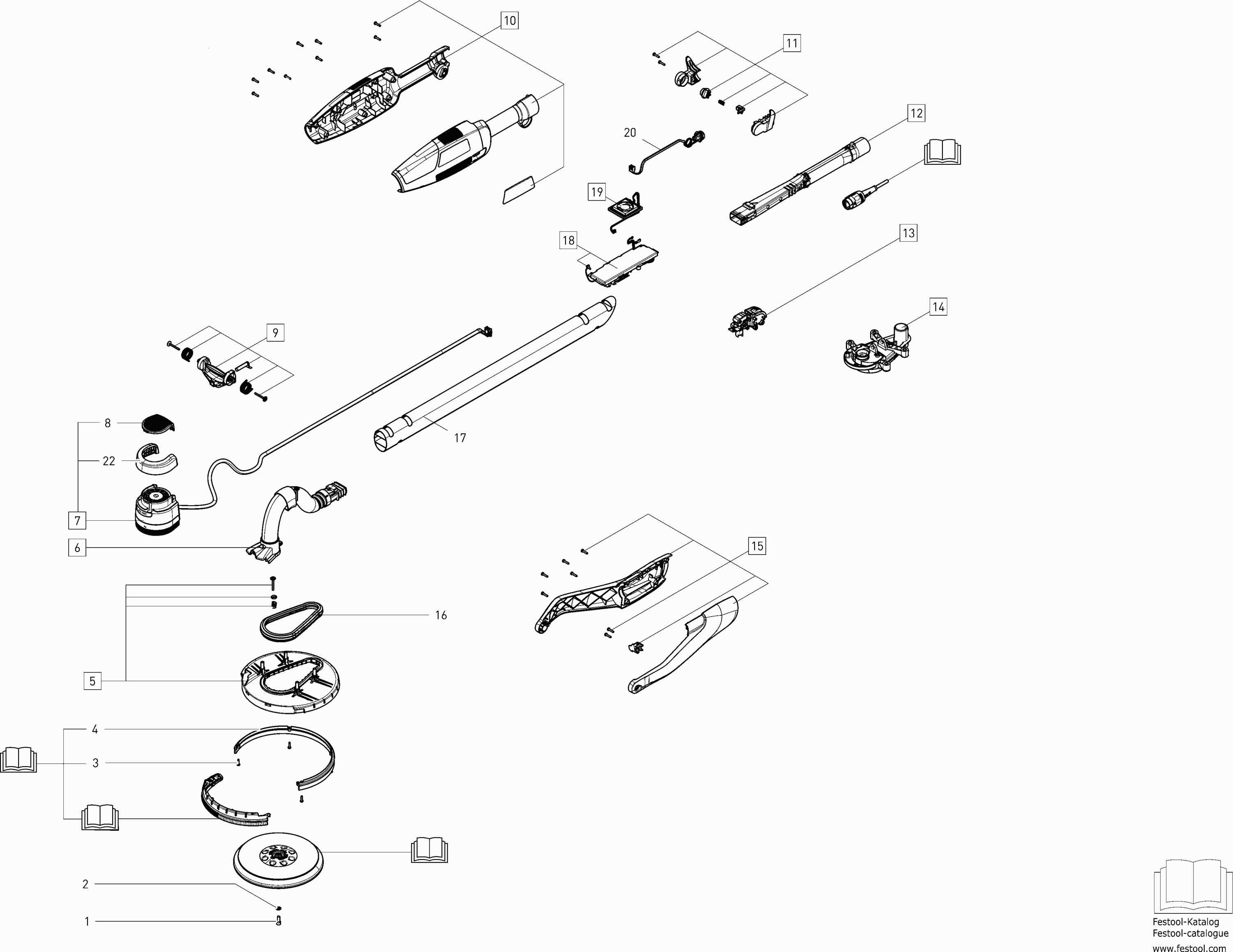

Technical drawing of model Festool 10016584 (PLANEXLHS-E225230V)
Spare parts list of model Festool 10016584 (PLANEXLHS-E225230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ch. head screw DIN 912-M6x16-10.9 | ||||
| 1 | 200685 | 1.51 | 1.83 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 2 | 200578 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 3 | 400468 | 1.51 | 1.83 | |
| Brush cover str LHS 225 EQ | ||||
| 4 | 465407 | 21.54 | 26.06 | |
| Dust-extr. Syst LHS-E 225 | ||||
| 5 | 202072 | 46.46 | 56.22 | |
| Suction hose LHS-E 225 | ||||
| 6 | 202074 | 56.14 | 67.93 | |
| motor unit LHS-E 225 230V | ||||
| 7 | 202071 | 191.42 | 231.62 | |
| Filter strainer PLANEX LHS-E 225 | ||||
| 8 | 10017741 | 2.81 | 3.40 | |
| Bridge LHS-E 225 | ||||
| 9 | 202073 | 38.36 | 46.42 | |
| Casing box LHS-E 225 | ||||
| 10 | 201720 | 56.87 | 68.81 | |
| Casing box LHS-E 225 Plug it | ||||
| 11 | 201730 | 31.70 | 38.36 | |
| suction duct LHS-E 225 | ||||
| 12 | 202076 | 28.92 | 34.99 | |
| Switch LHS-E 225 | ||||
| 13 | 202075 | 40.41 | 48.90 | |
| Gear LHS-E 225 | ||||
| 14 | 202078 | 161.66 | 195.61 | |
| Clevis LHS-E 225 | ||||
| 15 | 202079 | 44.53 | 53.88 | |
| Collar LHS-E 225 | ||||
| 16 | 202512 | 24.44 | 29.57 | |
| Pipe LHS-E 225 | ||||
| 17 | 201731 | 75.87 | 91.80 | |
| Electronics LHS-E 225 EU | ||||
| 18 | 201733 | 153.79 | 186.09 | |
| Fan LHS-E 225 | ||||
| 19 | 201732 | 43.68 | 52.85 | |
| Socket housing LHS-E 225 EU | ||||
| 20 | 202522 | 35.21 | 42.60 | |
| Insert LHS-E 225 | ||||
| 21 | 202514 | 50.09 | 60.61 | |
| Starting cont. PLANEX LHS-E 225 | ||||
| 22 | 10017742 | 9.50 | 11.50 | |
