Here you will find all available parts and drawings of the 'Festool 10011170 (PL205E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

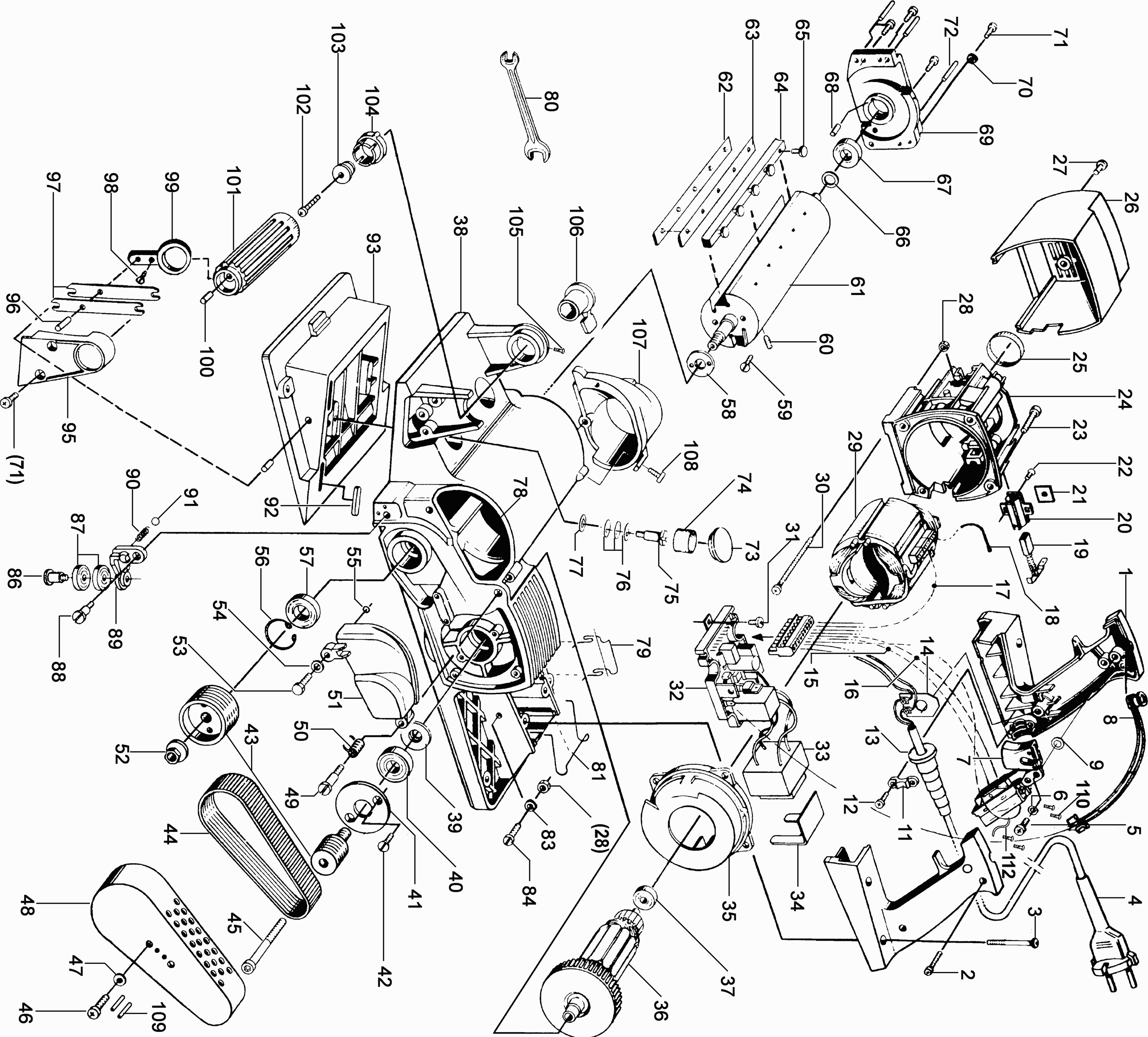

Technical drawing of model Festool 10011170 (PL205E)
Spare parts list of model Festool 10011170 (PL205E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle PLP 205 E | ||||
| 1 | 779667 | 34.24 | 41.43 | |
| Screw PT 40x25 K-TORX | ||||
| 2 | 614772 | 1.51 | 1.83 | |
| Screw M4x40 DIN 7500 | ||||
| 3 | 634765 | 1.51 | 1.83 | |
| Cord with plug H07RN-F2x2,5x10000 | ||||
| 4 | 729035 | 89.66 | 108.49 | |
| Oval head screw 4x12-Z/KU | ||||
| 5 | 430145 | 1.51 | 1.83 | |
| Serrated washer S4 | ||||
| 6 | 761541 | 1.51 | 1.83 | |
| Switch Marquardt 1269.0508 | ||||
| 7 | 779768 | 34.73 | 42.02 | |
| Indicator circu | ||||
| 8 | 717053 | 19.00 | 22.99 | |
| Disc DIN 125-A-5,3-140 HV | ||||
| 9 | 761515 | 1.51 | 1.83 | |
| Coupler 1x1,5x40 schwarz | ||||
| 10 | 779643 | 7.13 | 8.63 | |
| Cable clamp SYMMETRIC 70 | ||||
| 11 | 761618 | 1.51 | 1.83 | |
| Screw 4x16 ECO-SYN BN 84229 | ||||
| 12 | 625697 | 1.51 | 1.83 | |
| Cord guard 11 /11.5 | ||||
| 13 | 326135 | 2.16 | 2.61 | |
| Connector board | ||||
| 14 | 732785 | 26.14 | 31.63 | |
| Coupler 1x1,5x220 schwarz | ||||
| 15 | 779645 | 4.82 | 5.83 | |
| Coupler 1x1,5x280 schwarz | ||||
| 15 | 779642 | 3.38 | 4.09 | |
| Coupler 1x1,5x280 schwarz | ||||
| 16 | 779644 | 6.70 | 8.11 | |
| Connecting cond 1x1.5x260 | ||||
| 17 | 624009 | 12.08 | 14.62 | |
| Wire, complete 260 mm | ||||
| 17 | 838683 | 10.30 | 12.46 | |
| Wire, complete 260 mm | ||||
| 17 | 838682 | 7.92 | 9.58 | |
| Wire, complete 260 mm | ||||
| 17 | 838684 | 4.03 | 4.88 | |
| Connecting cond 1x1.5x154 | ||||
| 18 | 624008 | 6.55 | 7.93 | |
| Brush-set CSP 85 | ||||
| 19 | 627026 | 45.25 | 54.75 | |
| Brush holder | ||||
| 20 | 728217 | 17.30 | 20.93 | |
| Plate insulatin 1x8x12,5 | ||||
| 21 | 729000 | 1.51 | 1.83 | |
| Oval head screw 4x12-Z/KU | ||||
| 22 | 430145 | 1.51 | 1.83 | |
| Allen screw M5x20 DIN 912 | ||||
| 23 | 761440 | 1.51 | 1.83 | |
| Motor support | ||||
| 24 | 728446 | 44.29 | 53.59 | |
| Tolerance sleev 24x7 | ||||
| 25 | 718165 | 12.14 | 14.69 | |
| Motor hood | ||||
| 26 | 728519 | 18.51 | 22.40 | |
| Screw 4x16 ECO-SYN BN 84229 | ||||
| 27 | 625697 | 1.51 | 1.83 | |
| Nut M4 | ||||
| 28 | 614467 | 1.51 | 1.83 | |
| Field assembly 230V | ||||
| 29 | 729531 | 230.75 | 279.21 | |
| Screw M4x85 DIN 84A | ||||
| 30 | 624409 | 4.68 | 5.66 | |
| Allen screw M5x8 DIN 912 | ||||
| 31 | 761435 | 1.51 | 1.83 | |
| Electronics com 230V 50Hz | ||||
| 32 | 728861 | 185.13 | 224.01 | |
| Transformer PLP 205 E | ||||
| 33 | 838580 | 36.91 | 44.66 | |
| Cover PLP 205 E | ||||
| 34 | 718181 | 43.56 | 52.71 | |
| Air guiding | ||||
| 35 | 728500 | 7.34 | 8.88 | |
| Armature,comple 230V | ||||
| 36 | 706310 | 349.57 | 422.98 | |
| Bearing 609 2RS1/C3 | ||||
| 37 | 620010 | 10.08 | 12.20 | |
| Base plate PLP 205 E | ||||
| 38 | 648820 | 718.98 | 869.97 | |
| Nilos ring,spec 6003JV | ||||
| 39 | 298468 | 8.42 | 10.19 | |
| Bearing 6202 2RS1 TN9/GWF4 VP178 | ||||
| 40 | 614869 | 11.81 | 14.29 | |
| Cover | ||||
| 41 | 459954 | 10.15 | 12.28 | |
| Countersunk bolt M5 x 16 | ||||
| 42 | 414417 | 1.51 | 1.83 | |
| Repair exchange belt transmission ass'y | ||||
| 43 | 722421 | 56.63 | 68.52 | |
| Multi-V-belt | ||||
| 44 | 728829 | 62.44 | 75.55 | |
| Allen screw M5x50 DIN 912 | ||||
| 45 | 761446 | 1.51 | 1.83 | |
| Cheese-head scr M5x12-H | ||||
| 46 | 430137 | 1.51 | 1.83 | |
| Disc DIN 125-A-5,3-140 HV | ||||
| 47 | 761515 | 1.51 | 1.83 | |
| Gear cover | ||||
| 48 | 728608 | 60.62 | 73.35 | |
| Flat head screw DIN 923-M5x25-4.8 | ||||
| 49 | 433527 | 11.29 | 13.66 | |
| Torsional sprin 1,0x8,5x10 | ||||
| 50 | 729817 | 3.10 | 3.75 | |
| Geh usedeckel | ||||
| 51 | 729558 | 9.14 | 11.06 | |
| Hexagon nut Ten M 12 | ||||
| 52 | 430781 | 3.10 | 3.75 | |
| Hex head cap sc DIN 933-M5x16 | ||||
| 53 | 412872 | 1.51 | 1.83 | |
| Disc DIN 125-A-5,3-140 HV | ||||
| 54 | 761515 | 1.51 | 1.83 | |
| O-ring 4,47x1,78 | ||||
| 55 | 761588 | 1.51 | 1.83 | |
| Safety ring D32, CSN 02 2931 | ||||
| 56 | 614792 | 1.51 | 1.83 | |
| Bearing 6002 2RS | ||||
| 57 | 615496 | 9.65 | 11.68 | |
| Axial washer 18,5x50x1,5 | ||||
| 58 | 728950 | 6.05 | 7.32 | |
| Countersunk scr M4x10 | ||||
| 59 | 426695 | 1.51 | 1.83 | |
| Grub screw DIN 915-M5x10-45H | ||||
| 60 | 433543 | 1.51 | 1.83 | |
| Knife head,moun PL 205 E | ||||
| 61 | 706183 | 288.59 | 349.19 | |
| Clamping bar PLP 205 E | ||||
| 62 | 728896 | 30.37 | 36.75 | |
| No information available, not orderable | ||||
| 63 | --- | |||
| Clamping rail PLP 205 E | ||||
| 64 | 728969 | 50.22 | 60.77 | |
| SCHROEF EDH 82 | ||||
| 65 | 622581 | 4.25 | 5.14 | |
| Supporting wash S 12x18x1,2 | ||||
| 66 | 431451 | 1.51 | 1.83 | |
| Ball bearing 6001 DDU CM D8SSM | ||||
| 67 | 401576 | 8.21 | 9.93 | |
| Plug | ||||
| 68 | 729841 | 2.02 | 2.44 | |
| End shield | ||||
| 69 | 763235 | 46.83 | 56.66 | |
| Crown gear S 5 | ||||
| 70 | 761542 | 1.51 | 1.83 | |
| Ch. head screw DIN 912-M5x16-8.8 | ||||
| 71 | 228643 | 1.51 | 1.83 | |
| Parallel pin A 5x16 | ||||
| 72 | 412538 | 1.51 | 1.83 | |
| Plug | ||||
| 73 | 729868 | 4.82 | 5.83 | |
| Plug 35 Durchm.x27 | ||||
| 74 | 730329 | 1.51 | 1.83 | |
| Cheese head scr M6x16 | ||||
| 75 | 426857 | 4.03 | 4.88 | |
| Plate spring B 16x8.2x0.6 | ||||
| 76 | 832605 | 1.51 | 1.83 | |
| Washer 10x16x0,3 DIN 988 PS ST | ||||
| 77 | 761527 | 1.51 | 1.83 | |
| Ring 40x2,5 | ||||
| 78 | 618731 | 1.51 | 1.83 | |
| Retainer spring | ||||
| 79 | 729833 | 13.43 | 16.25 | |
| Fork wrench FWR-SW 8 | ||||
| 80 | 761390 | 5.69 | 6.88 | |
| Bracket | ||||
| 81 | 729825 | 10.08 | 12.20 | |
| Serrated washer S4 | ||||
| 83 | 761541 | 1.51 | 1.83 | |
| Allen screw M4x16 DIN 912 | ||||
| 84 | 761434 | 1.51 | 1.83 | |
| Flat head screw DIN 923-M5X16-4.8 | ||||
| 86 | 433411 | 5.26 | 6.36 | |
| Bearing 627 ZZ1 MC3 E | ||||
| 87 | 614955 | 8.06 | 9.75 | |
| Cheese head scr M6x16 | ||||
| 88 | 426857 | 4.03 | 4.88 | |
| Lever PLP 205 E | ||||
| 89 | 648832 | 69.58 | 84.19 | |
| Compression spr 0,8Ax5x12,5 | ||||
| 90 | 761291 | 3.89 | 4.71 | |
| Ball 6-40 CSN 02 3680 | ||||
| 91 | 614487 | 1.44 | 1.74 | |
| Feather key A 6x6x28 DIN 6885 | ||||
| 92 | 761576 | 2.23 | 2.70 | |
| Slide PLP 205 E | ||||
| 93 | 648831 | 155.24 | 187.84 | |
| Cover PLP 205 E | ||||
| 95 | 728470 | 4.97 | 6.01 | |
| Parallel pin A 6x24 | ||||
| 96 | 413526 | 1.51 | 1.83 | |
| Lever 12x3x102 | ||||
| 97 | 728543 | 21.42 | 25.92 | |
| Countersink DIN 963-M5X6-4.8 | ||||
| 98 | 414611 | 1.51 | 1.83 | |
| Strap,complete | ||||
| 99 | 718238 | 49.97 | 60.46 | |
| Parallel pin A 4x28 | ||||
| 100 | 416002 | 1.51 | 1.83 | |
| Handle | ||||
| 101 | 728497 | 14.40 | 17.42 | |
| Oval head screw 4x20-Z/KU | ||||
| 102 | 431710 | 1.51 | 1.83 | |
| Collar bushing | ||||
| 103 | 717002 | 11.02 | 13.33 | |
| Free-wheel ring | ||||
| 104 | 728462 | 4.25 | 5.14 | |
| Round-head notc 1,6x3 | ||||
| 105 | 459947 | 1.51 | 1.83 | |
| Clamp lever PL 205 E | ||||
| 106 | 10013575 | 11.75 | 14.22 | |
| Deflector | ||||
| 107 | 728594 | 10.08 | 12.20 | |
| Screw M5x10 | ||||
| 108 | 614459 | 1.51 | 1.83 | |
| Dowel pin DIN 7343-4x8-ST | ||||
| 109 | 428035 | 1.51 | 1.83 | |
| Screw M3,5x7 | ||||
| 110 | 767036 | 1.51 | 1.83 | |
