Here you will find all available parts and drawings of the 'Festool 10041860 ( OSC18LIEEU )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

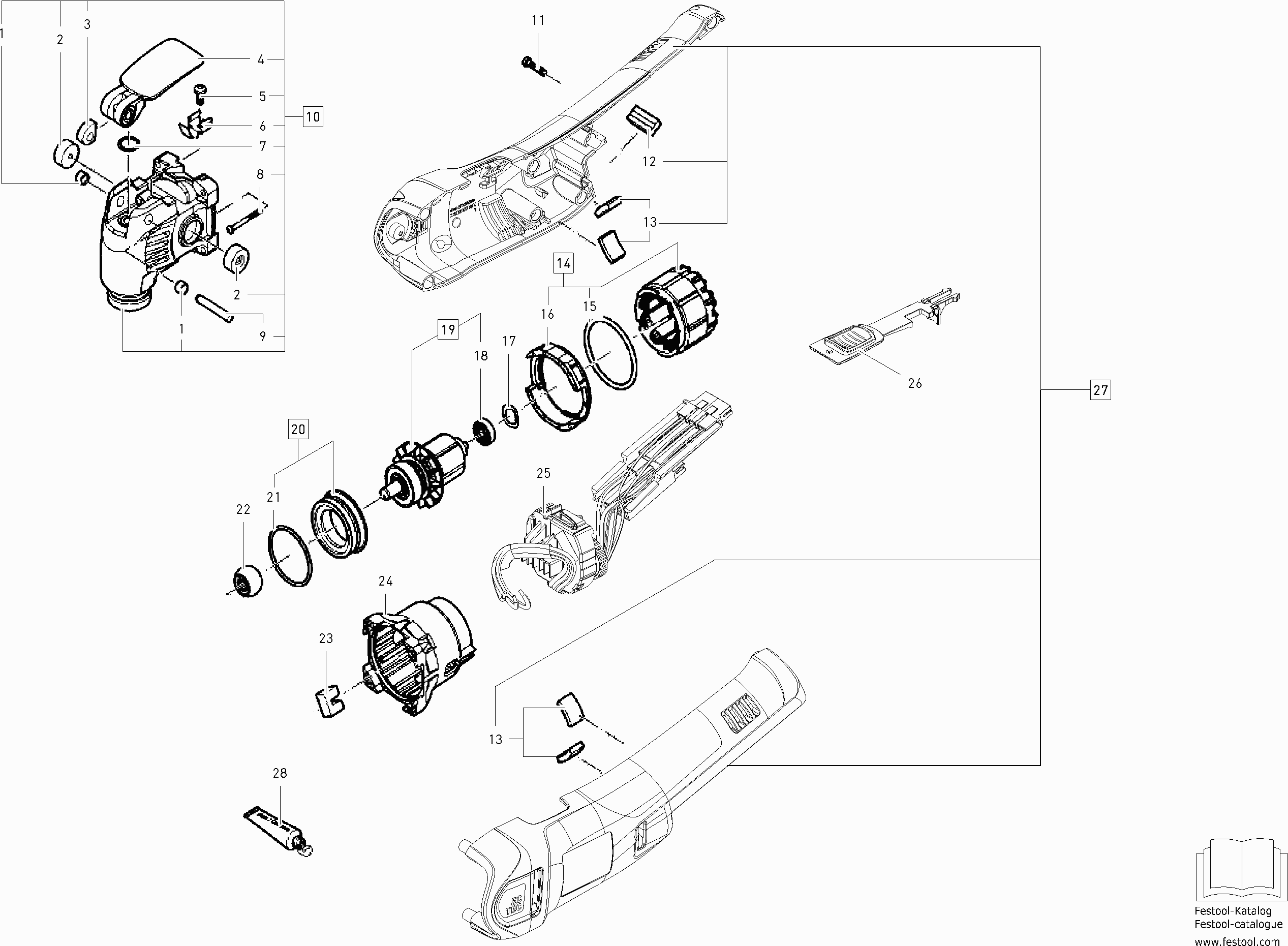

Technical drawing of model Festool 10041860 ( OSC18LIEEU )
Spare parts list of model Festool 10041860 ( OSC18LIEEU )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Bush OSC 18 | ||||
| 1 | 10159978 | 2.64 | 3.19 | |
| Joint piece OSC 18 | ||||
| 2 | 10159983 | 3.05 | 3.69 | |
| Ring OSC 18 | ||||
| 3 | 10160031 | 3.96 | 4.79 | |
| Chuck lever OSC 18 | ||||
| 4 | 10041215 | 12.58 | 15.22 | |
| Oval head screw M4x10 PE T20 | ||||
| 5 | 10160320 | 1.72 | 2.08 | |
| RETAINING SPRING OSC 18 | ||||
| 6 | 10160321 | 6.20 | 7.50 | |
| Circlip OSC 18 | ||||
| 7 | 10160329 | 1.72 | 2.08 | |
| Screw OSC 18 | ||||
| 8 | 10160335 | 1.72 | 2.08 | |
| Pin OSC 18 | ||||
| 9 | 10160341 | 2.83 | 3.42 | |
| Head piece OSC 18 ET-BG | ||||
| 10 | 10161207 | 244.30 | 295.60 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 11 | 400468 | 1.39 | 1.68 | |
| Joint piece OSC 18 | ||||
| 12 | 10160368 | 1.72 | 2.08 | |
| Joint piece OSC 18 | ||||
| 13 | 10160369 | 3.05 | 3.69 | |
| Stator OSC 18 ET-BG | ||||
| 14 | 10160366 | 104.91 | 126.94 | |
| sealing ring OSC 18 | ||||
| 15 | 10160349 | 1.72 | 2.08 | |
| AIR DEFLECTOR RING OSC 18 | ||||
| 16 | 10160350 | 6.86 | 8.30 | |
| Disc OSC 18 | ||||
| 17 | 10160367 | 1.75 | 2.12 | |
| BALL BEARING OSC 18 | ||||
| 18 | 10160358 | 8.35 | 10.10 | |
| Rotor OSC 18 ET-BG | ||||
| 19 | 10160359 | 194.33 | 235.14 | |
| Bearing sleeve OSC 18 ET-BG | ||||
| 20 | 10160360 | 11.37 | 13.76 | |
| Ring OSC 18 | ||||
| 21 | 10160361 | 1.72 | 2.08 | |
| Needle bearing OSC 18 | ||||
| 22 | 10160362 | 39.57 | 47.88 | |
| Joint piece OSC 18 | ||||
| 23 | 10160363 | 3.89 | 4.71 | |
| Casing box OSC 18 | ||||
| 24 | 10160364 | 20.87 | 25.25 | |
| Electronics OSC 18 | ||||
| 25 | 10041205 | 112.41 | 136.02 | |
| Switch OSC 18 | ||||
| 26 | 10041214 | 5.36 | 6.49 | |
| Housing set OSC 18 | ||||
| 27 | 10194992 | 53.36 | 64.57 | |
| Lubr. grease OSC 18 80g | ||||
| 28 | 719565 | 42.96 | 51.98 | |
