Here you will find all available parts and drawings of the 'Festool 492245 (Opklappoten)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

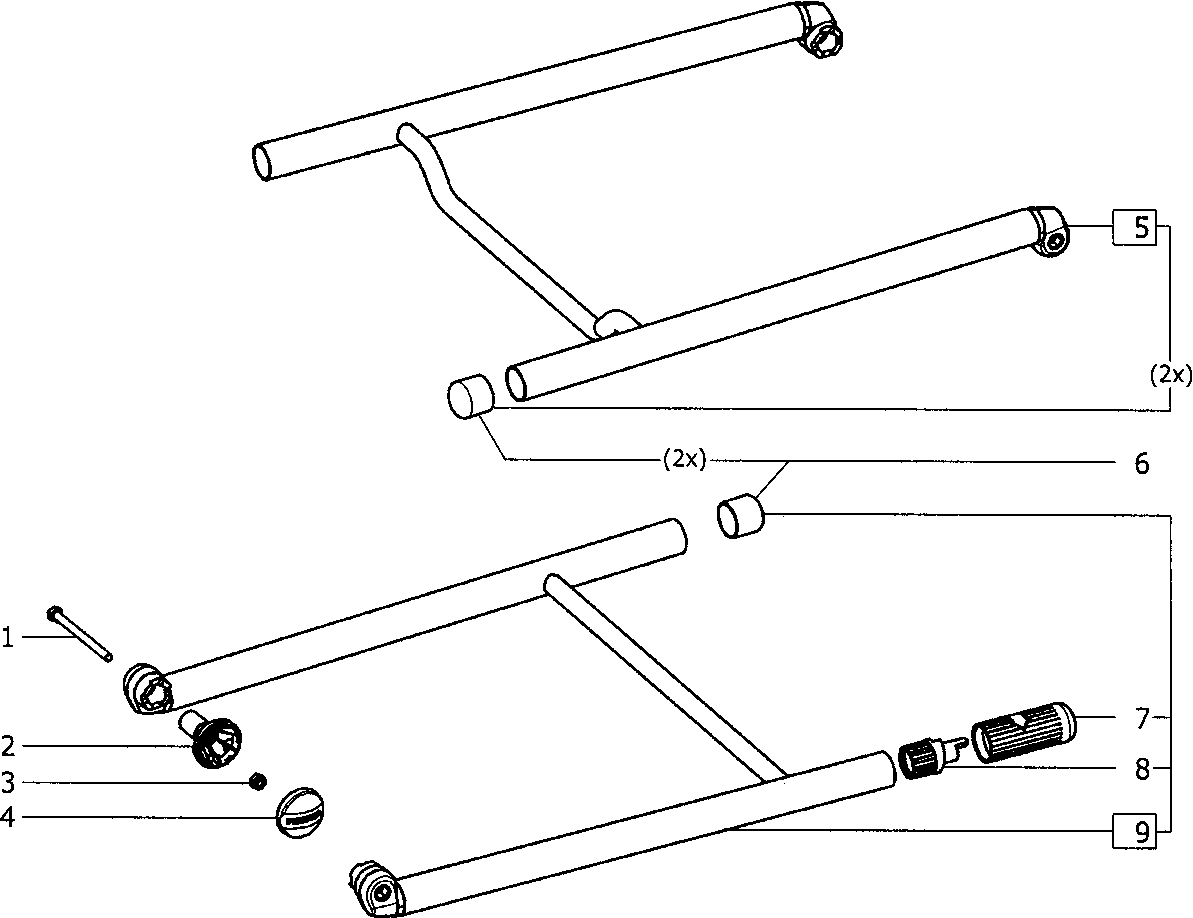

Technical drawing of model Festool 492245 (Opklappoten)
Spare parts list of model Festool 492245 (Opklappoten)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex head cap sc DIN 933-M8x100-8.8 | ||||
| 1 | 464713 | 1.58 | 1.91 | |
| HANDLE DOWN CS 50 EB | ||||
| 2 | 492148 | 4.75 | 5.75 | |
| Hexagon nut DIN 985-M8-04 | ||||
| 3 | 200735 | 1.51 | 1.83 | |
| Upper section o CS 70 EB | ||||
| 4 | 447534 | 1.94 | 2.35 | |
| Folding Leg CS 50 ET-BG | ||||
| 5 | 10703079 | 79.01 | 95.60 | |
| Foldaway leg Klappbein | ||||
| 5 | 10195127 | 78.53 | 95.02 | |
| Rubber foot CS 50 EB | ||||
| 6 | 465163 | 3.60 | 4.36 | |
| FOOT CS 50 EB | ||||
| 7 | 465883 | 13.07 | 15.81 | |
| Adjusting wheel CS 70 EB | ||||
| 8 | 448178 | 2.74 | 3.32 | |
| Folding Leg CS 50 ET-BG | ||||
| 9 | 10703045 | 90.27 | 109.23 | |
| Foldaway leg CS 50 | ||||
| 9 | 10198251 | 89.66 | 108.49 | |
