Here you will find all available parts and drawings of the 'Festool 10685270 (OFKC500EU)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

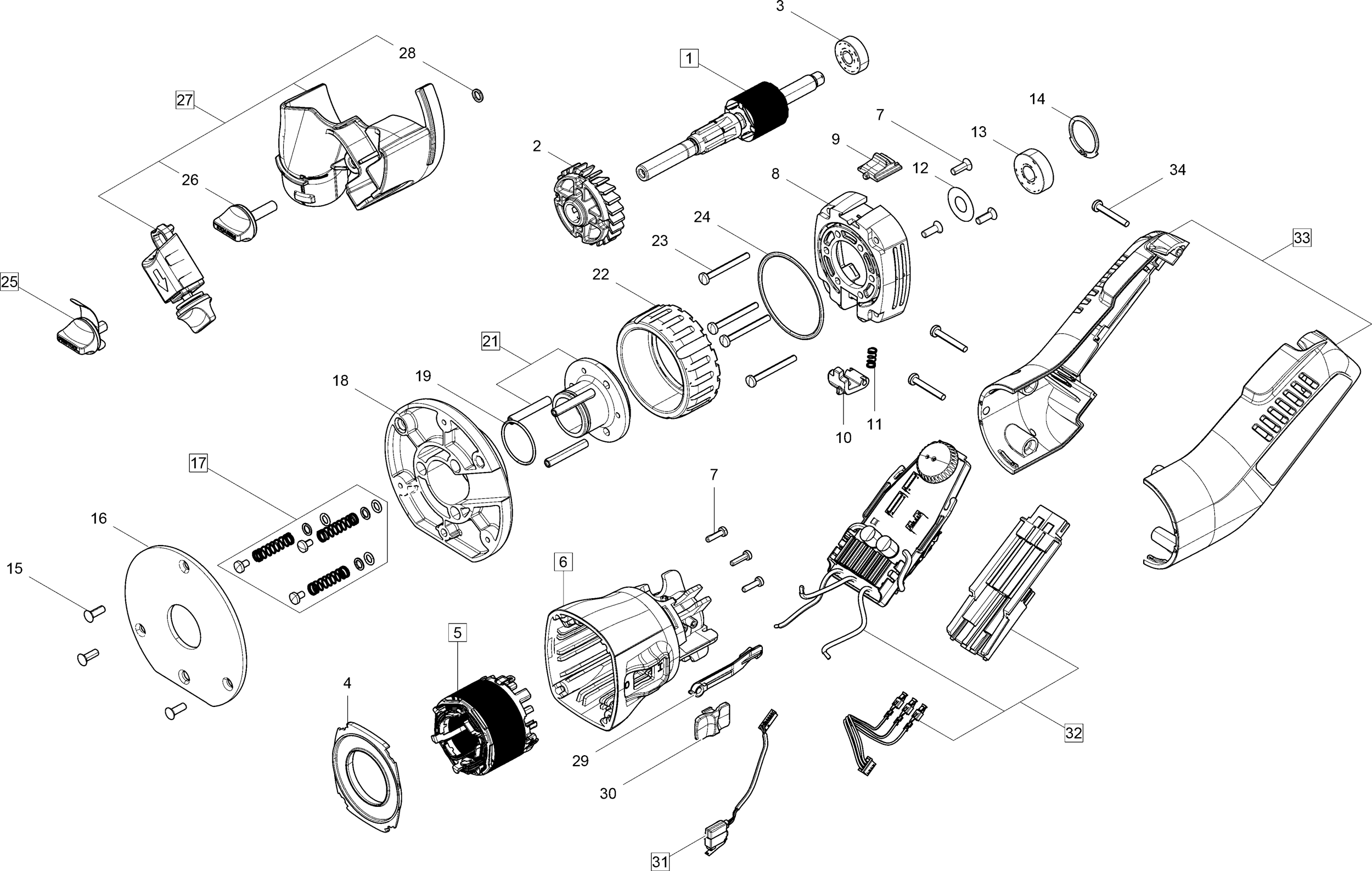

Technical drawing of model Festool 10685270 (OFKC500EU)
Spare parts list of model Festool 10685270 (OFKC500EU)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE OFKC 500 ET-BG | ||||
| 1 | 11088901 | 99.40 | 120.27 | |
| FAN MFKC OFKC 500 | ||||
| 2 | 10735234 | 3.02 | 3.65 | |
| Ball bearing 608 2Z LHT42 | ||||
| 3 | 401523 | 5.04 | 6.10 | |
| AIR GUIDE MFKC 700 | ||||
| 4 | 10703794 | 1.58 | 1.91 | |
| FIELD ASSEMBLY MFKC 700 ET-BG | ||||
| 5 | 11089777 | 48.47 | 58.65 | |
| MOTOR HOUSING OFKC 500 ET-BG | ||||
| 6 | 11088923 | 36.48 | 44.14 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 7 | 219069 | 1.51 | 1.83 | |
| BEARING COVER OFK 500 Q | ||||
| 8 | 455609 | 3.89 | 4.71 | |
| Locking button OFK 500 Q VOLLST. | ||||
| 9 | 490098 | 4.10 | 4.96 | |
| Spindle stop OFK 500 Q | ||||
| 10 | 457115 | 2.23 | 2.70 | |
| Compr. spring OFK 500 Q | ||||
| 11 | 455974 | 1.51 | 1.83 | |
| Centrifugal was OFK 500 | ||||
| 12 | 463082 | 2.38 | 2.88 | |
| BALL BEARING 6000 DDU-C3 D8S L (NSK) | ||||
| 13 | 789575 | 6.91 | 8.36 | |
| CIRCLIP I 26x1,2V SEEGER | ||||
| 14 | 209608 | 2.02 | 2.44 | |
| Countersink DIN 965-M4x12-8.8 | ||||
| 15 | 445148 | 1.51 | 1.83 | |
| Crosshd. guide OFK 500 | ||||
| 16 | 467297 | 12.61 | 15.26 | |
| CLAMPING ELEMEN OFK 500 Q | ||||
| 17 | 490253 | 24.08 | 29.14 | |
| Base OFK 500 Q | ||||
| 18 | 467534 | 42.23 | 51.10 | |
| O-ring 26x1,5-NBR-70SHORE | ||||
| 19 | 215554 | 1.51 | 1.83 | |
| Driving collar OFK 500 Q ET-BAUGRUPPE | ||||
| 21 | 490254 | 78.53 | 95.02 | |
| Clamping ring OFK 500 Q | ||||
| 22 | 455289 | 7.13 | 8.63 | |
| Oval head screw PT-3,5x35-KOMBI-TORX | ||||
| 23 | 400646 | 1.51 | 1.83 | |
| O-ring 52x2-NBR-70SHORE | ||||
| 24 | 458557 | 1.51 | 1.83 | |
| BRAKE OFKC 500 ET-BG | ||||
| 25 | 11088927 | 7.20 | 8.71 | |
| Rotary knob SF-OF D 23 M6x23 blau | ||||
| 26 | 486243 | 2.38 | 2.88 | |
| EXTRACTION HOOD OFKC 500 ET-BG | ||||
| 27 | 11088928 | 16.09 | 19.47 | |
| O-ring 5x1,5-NBR-70SHORE | ||||
| 28 | 200052 | 1.51 | 1.83 | |
| SWITCH FRAME MFKC 700 | ||||
| 29 | 10670978 | 1.37 | 1.66 | |
| SLIDE SWITCH MFKC 700 | ||||
| 30 | 10719650 | 8.35 | 10.10 | |
| SWITCH OFKC 500 ET-BG | ||||
| 31 | 11088929 | 36.48 | 44.14 | |
| ELECTRONICS OFKC 500 MFKC 700 ET-BG | ||||
| 32 | 11088934 | 188.21 | 227.73 | |
| HANDLE OFKC 500 ET-BG | ||||
| 33 | 11088943 | 39.62 | 47.94 | |
| Oval head screw PT-3,5x25-KT15 | ||||
| 34 | 219068 | 1.51 | 1.83 | |
