Festool Ofk 700 Eq spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 10488475 (OFK700EQ)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

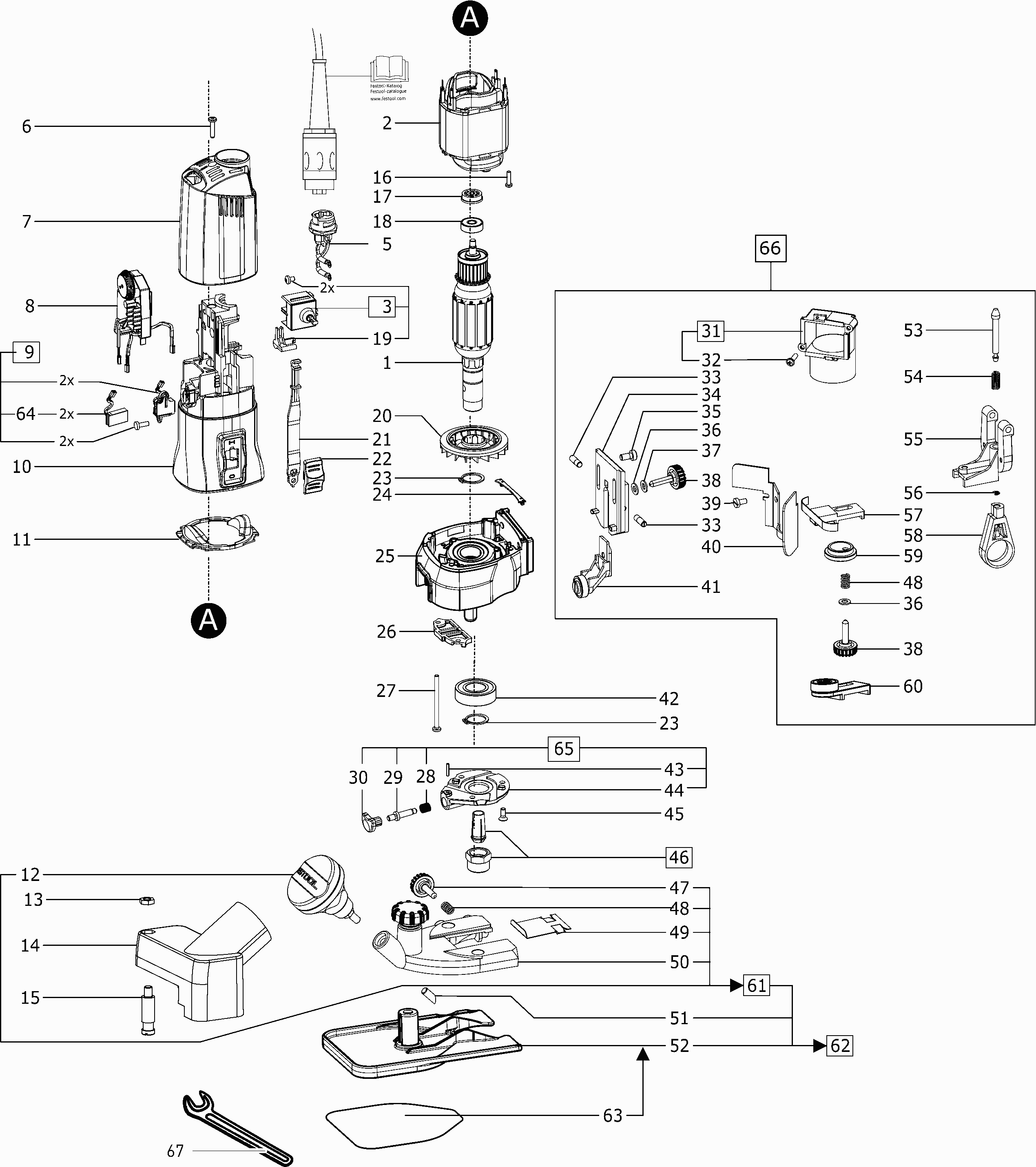

Technical drawing of model Festool 10488475 (OFK700EQ)

Spare parts list of model Festool 10488475 (OFK700EQ)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

ARMATURE MFK 700 EQ 230V
1	495090	135.88	164.41

FIELD COIL MFK 700 EQ 230V VOLLST.
2	495091	53.72	65.00

SWITCH PS 300 EQ
3	490200	14.04	16.99

Socket housing Ersatzteil
5	489927	9.50	11.50

Oval head screw KT-3,5x16-FK10-T15 schw
6	10357783	1.51	1.83

Cap PS 300 EQ
7	451346	6.48	7.84

Electronics OFK700 230V ET-BG
8	205802	78.77	95.31

BRUSH HOLDER PS 300 EQ ET-BG
9	490220	17.30	20.93

Motor frame PS 300 EQ
10	474364	11.42	13.82

Air guide washe PS 300 EQ
11	458964	1.51	1.83

Handle MFK 700 EQ
12	494886	8.42	10.19

Hexagon nut DIN 439-M6
13	200601	1.51	1.83

Clamping hood Ersatzteil
14	462575	6.55	7.93

Threaded bolt M6x40,5
15	728985	12.83	15.52

Oval head screw PT-3,0x12-KT10
16	219069	1.51	1.83

Solenoid ring RO 2 E
17	444018	2.45	2.96

Ball bearing 626 DD M5MTLY 121
18	228672	6.79	8.22

LEVER PS 300 EQ
19	453490	1.51	1.83

Fan OF 900 E
20	440171	2.30	2.78

Switch linkage PS 300 EQ
21	465089	1.51	1.83

Slide switch PS 300 E
22	451347	1.51	1.83

Circlip DIN 471-17x1
23	401191	1.51	1.83

Air plate Ersatzteil
24	462347	1.51	1.83

Casing OFK 700 EQ
25	495094	82.89	100.30

Dust cover Ersatzteil
26	462656	1.51	1.83

Oval head screw PT-3,5x50-KT15
27	400005	1.51	1.83

Compr. spring DIN 2098-0,70x7,50x14,7
28	444754	1.51	1.83

Bolt KF 4 E
29	436305	10.01	12.11

CAP OF 1000 EB
30	450206	1.51	1.83

shaving cap O K 700 EQ mounted
31	491600	5.54	6.70

Oval head screw PT-3,5x14-KT15
32	228584	1.51	1.83

Set screw DIN 427-M5x16-14H
33	462397	1.51	1.83

Plate OFK 700 EQ
34	517018	25.05	30.31

Ch. head screw DIN 7984-M5x10
35	207729	1.51	1.83

Disc DIN 125-A-5,3-140 HV
36	761515	1.51	1.83

Spring washer DIN 137-A-5
37	200587	1.51	1.83

Clamping screw OFK 700 E
38	462895	6.70	8.11

Ch. head screw DIN 7984-M4x8-8.8-TUF
39	445004	1.51	1.83

PROTECTION PLAT OFK 700 EQ
40	462234	8.71	10.54

TASTVOET OFK 700 EQ KPL. ET-BG
41	491845	35.09	42.46

Ball bearing 6003 DDW CM DIN 625 NSK
42	462795	10.51	12.72

Dowel pin DIN 1481-2x12-ST
43	200747	1.51	1.83

Cover OFK 700 EQ
44	473550	7.70	9.32

Countersink M4x10-TAPTITE-T15
45	228581	1.51	1.83

Collet
46	488755	72.13	87.28

Clamping screw OFK 700 EQ
47	462891	6.62	8.01

Compression spr 1,0Cx6,3x10
48	462230	1.51	1.83

Cover plate OFK 700 EQ
49	462229	7.13	8.63

Carrier OFK 700 EQ
50	491850	104.42	126.35

Carrier OFK 700 EQ
50	491846	88.81	107.46

Thrust piece OFK 700 EQ
51	528994	3.38	4.09

Complete base OFK 700
52	10226653	61.59	74.52

Fixing pin 7x48,8
53	570761	4.54	5.49

Compression spr 0,8Cx6x28
54	761578	1.51	1.83

Guiding angle OFK 700 EQ
55	462268	15.00	18.15

Lock washer DIN 6799-2,3
56	228610	1.51	1.83

Follower spring OFK 700 EQ
57	530026	11.09	13.42

Handle OFK 700 EQ
58	570753	2.66	3.22

Cam OFK 700 EQ
59	528811	11.38	13.77

Follower roller OFK 700 EQ
60	491847	26.38	31.92

PIVOT FRAME OFK 700 EQ
61	491848	135.16	163.54

PIVOT FRAME OFK 700 EQ
61	491849	118.34	143.19

FREESTAFEL FT-OFK/MFK/0
62	491427	160.68	194.42

Table,complete 1.5 degree
62	529095	151.49	183.30

Slideway lining OFK 700
63	10223811	25.41	30.75

Brush PS 300 EQ ET-BG
64	490219	17.30	20.93

Cover OFK 700 EQ
65	494788	13.67	16.54

Limit stop OFK700EQ
66	495672	114.83	138.94

SPANNER 19ml SW 19 DIN894
67	772049	9.58	11.59
