Here you will find all available parts and drawings of the 'Festool 10488477 (OFK500Q230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

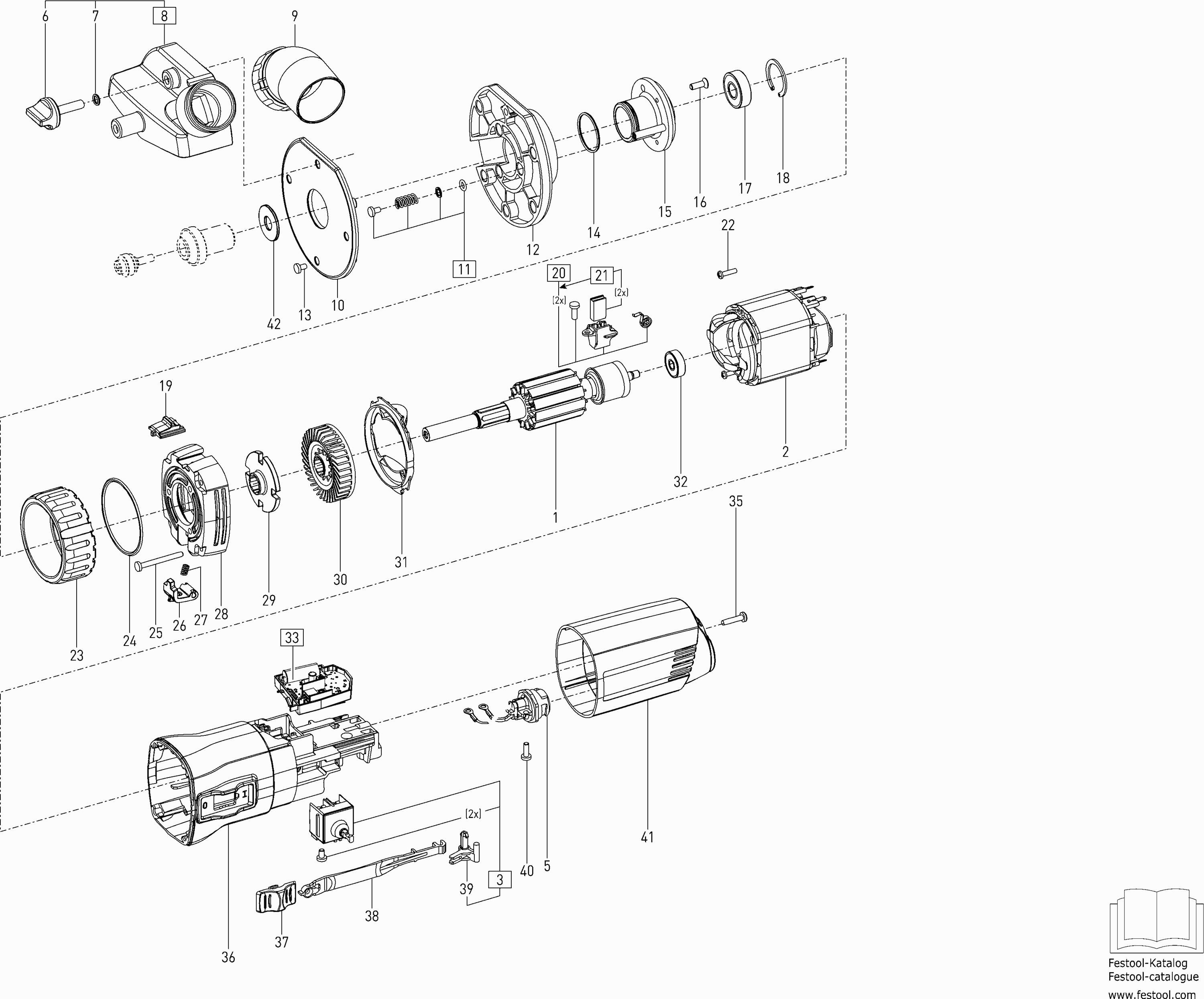

Technical drawing of model Festool 10488477 (OFK500Q230V)
Spare parts list of model Festool 10488477 (OFK500Q230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE OFK 500 Q ET-BG 230V | ||||
| 1 | 493168 | 135.88 | 164.41 | |
| FIELD COIL OFK 500 Q ET-BG 230V | ||||
| 2 | 493169 | 54.57 | 66.03 | |
| SWITCH PS 300 EQ | ||||
| 3 | 490200 | 14.04 | 16.99 | |
| Socket housing Ersatzteil | ||||
| 5 | 489927 | 9.50 | 11.50 | |
| Rotary knob SF-OF D 23 M6x23 blau | ||||
| 6 | 486243 | 2.38 | 2.88 | |
| O-ring 5x1,5-NBR-70SHORE | ||||
| 7 | 200052 | 1.51 | 1.83 | |
| AFZUIGKAP OFKC 500 ET-BG | ||||
| 8 | 11088928 | 16.09 | 19.47 | |
| RUBBER DUST COV OFK 500 Q | ||||
| 8 | 491513 | 16.09 | 19.47 | |
| ANGLE PIECE EHL 65 EB | ||||
| 9 | 448785 | 2.23 | 2.70 | |
| Crosshd. guide OFK 500 | ||||
| 10 | 467297 | 12.61 | 15.26 | |
| CLAMPING ELEMEN OFK 500 Q | ||||
| 11 | 490253 | 24.08 | 29.14 | |
| Base OFK 500 Q | ||||
| 12 | 467534 | 42.23 | 51.10 | |
| Countersink DIN 965-M4x12-8.8 | ||||
| 13 | 445148 | 1.51 | 1.83 | |
| O-ring 26x1,5-NBR-70SHORE | ||||
| 14 | 215554 | 1.51 | 1.83 | |
| Driving collar OFK 500 Q ET-BAUGRUPPE | ||||
| 15 | 490254 | 78.53 | 95.02 | |
| Countersink DIN 965-M4x12-8.8-PR80+ | ||||
| 16 | 400862 | 1.51 | 1.83 | |
| BALL BEARING 6000 DDU-C3 D8S L (NSK) | ||||
| 17 | 789575 | 6.91 | 8.36 | |
| CIRCLIP I 26x1,2V SEEGER | ||||
| 18 | 209608 | 2.02 | 2.44 | |
| Locking button OFK 500 Q VOLLST. | ||||
| 19 | 490098 | 4.10 | 4.96 | |
| BRUSH HOLDER PS 300 Q | ||||
| 20 | 490224 | 11.52 | 13.94 | |
| BRUSH PS 300 Q | ||||
| 21 | 490223 | 11.52 | 13.94 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 22 | 219069 | 1.51 | 1.83 | |
| Clamping ring OFK 500 Q | ||||
| 23 | 455289 | 7.13 | 8.63 | |
| O-ring 52x2-NBR-70SHORE | ||||
| 24 | 458557 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x35-KOMBI-TORX | ||||
| 25 | 400646 | 1.51 | 1.83 | |
| Spindle stop OFK 500 Q | ||||
| 26 | 457115 | 2.23 | 2.70 | |
| Compr. spring OFK 500 Q | ||||
| 27 | 455974 | 1.51 | 1.83 | |
| BEARING COVER OFK 500 Q | ||||
| 28 | 455609 | 3.89 | 4.71 | |
| Disc OFK 500 Q | ||||
| 29 | 457116 | 1.73 | 2.09 | |
| FAN OFK 500 Q | ||||
| 30 | 457284 | 2.74 | 3.32 | |
| Air guide washe PS 300 EQ | ||||
| 31 | 458964 | 1.51 | 1.83 | |
| Ball bearing 626 DD M5MTLY 121 | ||||
| 32 | 228672 | 6.79 | 8.22 | |
| Electronic OFK500 230V ET-BG | ||||
| 33 | 205832 | 96.56 | 116.84 | |
| Oval head screw KT-3,5x16-FK10-T15 schw | ||||
| 35 | 10357783 | 1.51 | 1.83 | |
| Motor frame PS 300 EQ | ||||
| 36 | 474364 | 11.42 | 13.82 | |
| Slide switch PS 300 E | ||||
| 37 | 451347 | 1.51 | 1.83 | |
| Switch linkage PS 300 EQ | ||||
| 38 | 465089 | 1.51 | 1.83 | |
| LEVER PS 300 EQ | ||||
| 39 | 453490 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 40 | 219031 | 7.32 | 8.86 | |
| Cap PS 300 Q | ||||
| 41 | 455770 | 6.41 | 7.76 | |
| Centrifugal was OFK 500 | ||||
| 42 | 463082 | 2.38 | 2.88 | |
| REM OFKC 500 ET-BG | ||||
| 43 | 11088927 | 7.20 | 8.71 | |
