Here you will find all available parts and drawings of the 'Festool 489911 ( OF2000E/1 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

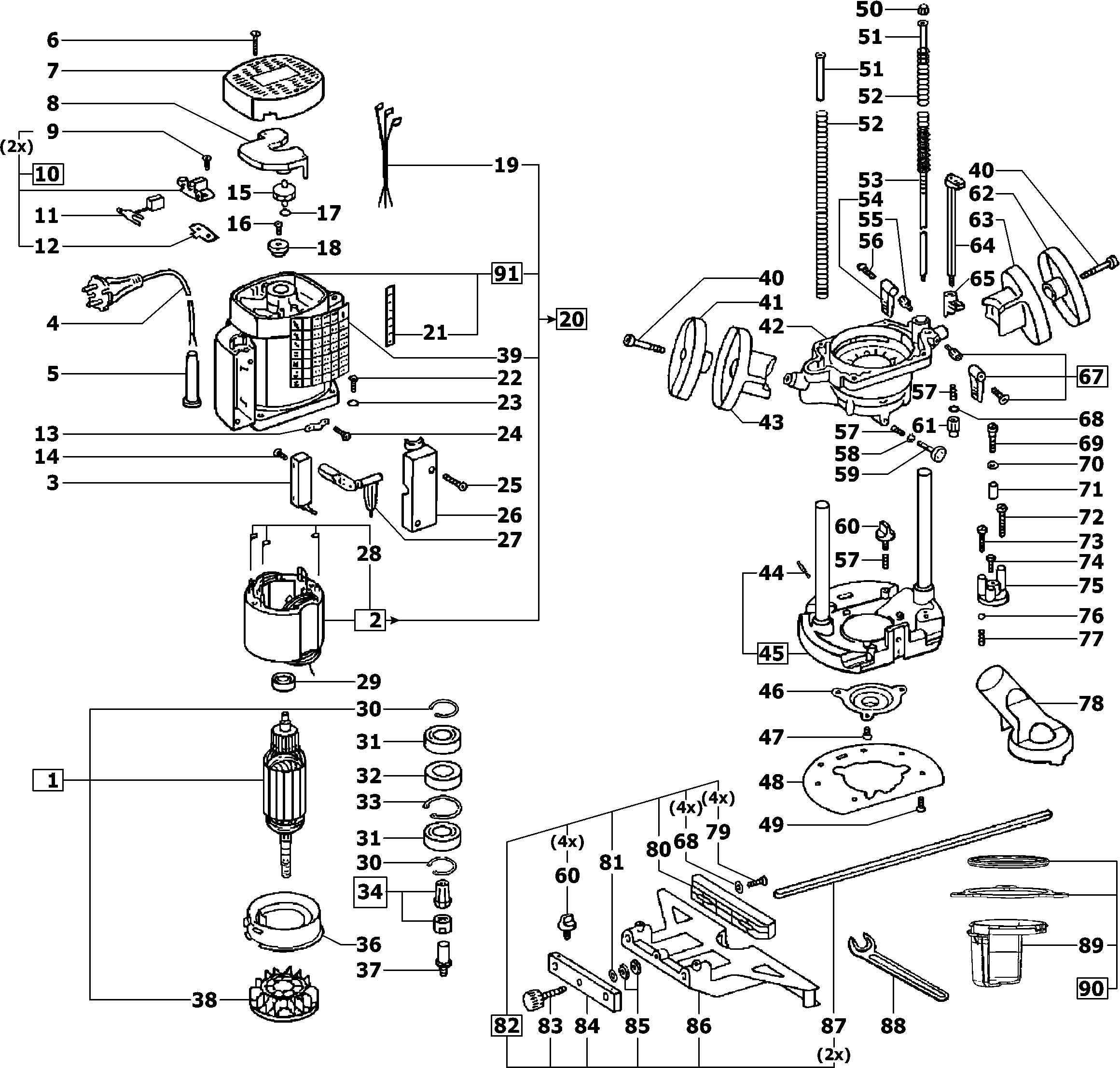

Technical drawing of model Festool 489911 ( OF2000E/1 )

Spare parts list of model Festool 489911 ( OF2000E/1 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
1 xxx
No information available, not orderable
2 xxx
No information available, not orderable
3 444709
CABLE WITH PLUG BS 75 E DIN-H07RN-F
4 460463 24.32 29.43
No information available, not orderable
5 xxx
No information available, not orderable
6 xxx
MOTOR COVER OF 2000 EB 200.714
7 444723 45.62 55.20
No longer available, no replacement
8 487384
No information available, not orderable
9 xxx
BRUSH HOLDER OF 2000 E ET-BG
10 491664 37.99 45.97
No longer available, no replacement
11 489342
No information available, not orderable
12 xxx
No information available, not orderable
13 xxx
No information available, not orderable
14 xxx
KNOB OF 2000 EB 200.716
15 444728 15.85 19.18
No information available, not orderable
16 xxx
O-ring 4x1,5-NBR-75SHORE
17 200911 1.39 1.68
TACHO SPOOL OF 2000 EB 038.975
18 444739 44.16 53.43
No information available, not orderable
19 xxx
No information available, not orderable
20 xxx
No information available, not orderable
21 xxx
No information available, not orderable
22 xxx
No information available, not orderable
23 xxx
Pan-head Parker DIN 7981-ST3,9x13-ST-CH
24 203796 1.39 1.68
No information available, not orderable
25 xxx
No information available, not orderable
26 xxx
No information available, not orderable
27 xxx
No information available, not orderable
28 488973
Ball bearing 629-A-4DDMC5E D8SS5
29 401550 9.37 11.34
Circlip DIN 471-25x1,2
30 400636 1.39 1.68
BALL BEARING OF 2000/1
31 400635 12.03 14.56
No information available, not orderable
32 457332
Circlip DIN 472-47x1,75
33 771487 1.39 1.68
Collet D 8,0
34 494460 66.69 80.69
No information available, not orderable
36 xxx
No information available, not orderable
37 487160
FAN OF 2000 E ET-BG
38 491341 54.45 65.88
No information available, not orderable
39 xxx
Ch. head screw DIN 6912-M6x40-8.8
40 400080 1.39 1.68
HANDLE OF 2000 200.710
41 444727 12.70 15.37
HOUSING OF 2000/1 203.081
42 457333 393.25 475.83
HANDLE OF 2000 200.711
43 444726 15.85 19.18
No information available, not orderable
44 xxx
No information available, not orderable
45 xxx
No information available, not orderable
46 ---
No information available, not orderable
47 xxx
No longer available, no replacement
48 444748
Countersink DIN 965-M4x8-8.8
49 770273 1.39 1.68
Acorn nut DIN 917-M8-06
50 400103 1.39 1.68
No information available, not orderable
51 xxx
No information available, not orderable
52 xxx
No information available, not orderable
53 xxx
Lever AP 55 E
54 438944 1.51 1.83
No information available, not orderable
55 xxx
C-h count. scre DIN 966-M5x12-4.8
56 400090 1.39 1.68
Compr. spring DIN 2098-0,70x7,50x14,7
57 444754 1.39 1.68
Lock washer Din 6799-4
58 400106 1.39 1.68
PUSHER OF 2000/1
59 489700 19.00 22.99
Rotary knob OF2000 EB D 23 M6x16 bl
60 444633 2.04 2.47
Depth adjuster OF 2000 EB 038.956
61 444381 21.54 26.06
No information available, not orderable
62 xxx
HANDLE 1/2 OF 2000 200.709
63 444724 15.85 19.18
Depth stop OF 2000 E 201.213
64 487165 61.23 74.09
No information available, not orderable
65 xxx
LEVER OF 1000
67 490429 18.13 21.94
Disc DIN 433-6,4-140 HV
68 217149 1.39 1.68
Ch. head screw DIN 912-M6x25-8.8-TUF
69 400859 1.39 1.68
Disc DIN 125-B-6,4-140 HV
70 200578 1.39 1.68
Bush KF 4 E
71 436300 1.78 2.15
Flat head screw DIN 85-M5x30-4.8-LONG
72 436813 2.04 2.47
Flat head screw DIN 85-M5x25-4.8-LONG
73 436812 1.85 2.24
Flat head screw DIN 85-M5x20-4.8-LONG
74 436811 1.58 1.91
Limit stop KF 4 E
75 436520 13.43 16.25
Ball DIN 5401-7-100CR6
76 783305 1.39 1.68
SPRING DIN 2098-0,50x6,50x15,0
77 436528 1.39 1.68
No longer available, no replacement
78 444376
Ch. head screw DIN 84-M6x16-4.8
79 770443 1.39 1.68
GUIDE PADS OF 2000 EB 038.978
80 444719 42.83 51.82
No information available, not orderable
81 xxx
No information available, not orderable
82 xxx
No longer available, no replacement
83 484791
No information available, not orderable
84 xxx
Hexagon nut DIN 439-M6
85 200601 1.39 1.68
No information available, not orderable
86 xxx
No information available, not orderable
87 444745
WRENCH SW 22 DIN894
88 401745 8.58 10.38
HOOD OF 1400 EBQ
89 466390 2.57 3.11
No information available, not orderable
90 ---
