Here you will find all available parts and drawings of the 'Festool 491367 (OF1400EBQ230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

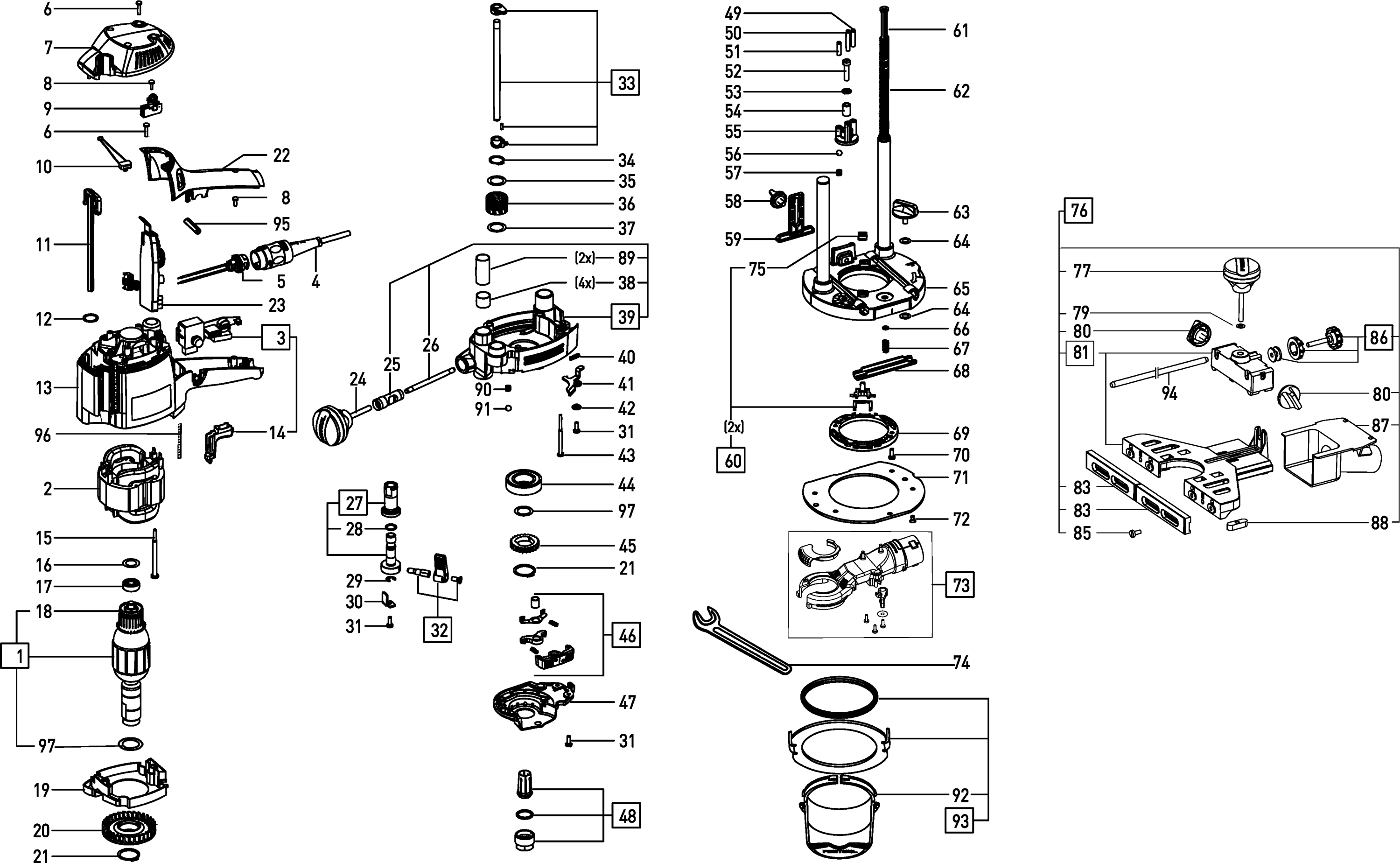

Technical drawing of model Festool 491367 (OF1400EBQ230V)
Spare parts list of model Festool 491367 (OF1400EBQ230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature OF 1400 230V | ||||
| 1 | 204659 | 164.92 | 199.55 | |
| FIELD COIL CPL. OF 1400 | ||||
| 2 | 491806 | 72.12 | 87.27 | |
| Switch modul OF 1400 EBQ ET-BAUGRUPPE | ||||
| 3 | 491520 | 27.35 | 33.09 | |
| PLUG IT-KABEL H05 RN-F-4 | ||||
| 4 | 203914 | 24.00 | 29.04 | |
| Socket housing OF 1400 EBQ VOLLST. | ||||
| 5 | 491751 | 11.45 | 13.85 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 6 | 400468 | 1.51 | 1.83 | |
| Case lid OF 1400 EBQ | ||||
| 7 | 462603 | 6.26 | 7.57 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 8 | 219031 | 7.32 | 8.86 | |
| BRUSH HOLDER OF 1400 | ||||
| 9 | 492002 | 17.30 | 20.93 | |
| Tachometer coil RTM OF | ||||
| 10 | 457920 | 8.14 | 9.85 | |
| RETAINER OF 1400 EBQ | ||||
| 11 | 462604 | 2.02 | 2.44 | |
| Circlip AV 16-BLS-SEEGER | ||||
| 12 | 400725 | 1.94 | 2.35 | |
| Motor frame OF 1400 EBQ | ||||
| 13 | 491940 | 25.41 | 30.75 | |
| Push Button OF 1400 EBQ | ||||
| 14 | 462606 | 2.74 | 3.32 | |
| Oval head screw PT-5,0x70-KT15 | ||||
| 15 | 228709 | 1.51 | 1.83 | |
| WASHER 14x21,8x0,3 L+MN 1100 | ||||
| 16 | 203777 | 1.51 | 1.83 | |
| Groove Ball Bearing 608 D1 MC3 E U152 J2 HA1 | ||||
| 17 | 10775821 | 5.54 | 6.70 | |
| magnetic disk OF 1400 VOLLST. | ||||
| 18 | 491353 | 9.79 | 11.85 | |
| Air guide washe OF 1400 | ||||
| 19 | 462619 | 3.17 | 3.84 | |
| Fan OF 1400 EBQ | ||||
| 20 | 462620 | 11.75 | 14.22 | |
| Circlip DIN 471-25x1,2 | ||||
| 21 | 400636 | 1.51 | 1.83 | |
| Handle cover OF 1400 EBQ | ||||
| 22 | 462602 | 5.62 | 6.80 | |
| ELECTRONIC CPL. OF 1400 EBQ | ||||
| 23 | 491519 | 99.10 | 119.91 | |
| Handle OF 1400 | ||||
| 24 | 491590 | 9.79 | 11.85 | |
| Clamp Piece OF 1400 | ||||
| 25 | 10712440 | 18.63 | 22.54 | |
| Clamp. element OF 1400 EBQ | ||||
| 25 | 465166 | 17.79 | 21.53 | |
| AXLE OF 1400 EBQ | ||||
| 26 | 462608 | 4.82 | 5.83 | |
| FINE ADJUSTMENT OF 1400 EBQ VOLLST. | ||||
| 27 | 492416 | 27.71 | 33.53 | |
| O-ring 11,5x1,5-NBR-70SHORE | ||||
| 28 | 200929 | 1.51 | 1.83 | |
| Lock washer DIN 6799-6 | ||||
| 29 | 228518 | 1.51 | 1.83 | |
| Angle piece OF 1400 EBQ | ||||
| 30 | 463998 | 1.51 | 1.83 | |
| Oval head screw M4x12-TAPTITE-KT15 | ||||
| 31 | 400050 | 1.51 | 1.83 | |
| Lever OF 1400 | ||||
| 32 | 492004 | 25.17 | 30.46 | |
| DEPTH STOP OF 1400 EBQ | ||||
| 33 | 492086 | 28.19 | 34.11 | |
| Circlip DIN 471-17x1 | ||||
| 34 | 401191 | 1.51 | 1.83 | |
| Shim ring DIN 988-17x24x0,3 | ||||
| 35 | 462628 | 1.51 | 1.83 | |
| Set wheel OF 1400 EBQ | ||||
| 36 | 462621 | 4.82 | 5.83 | |
| COMP. DISC 17,3x23,8x0,3 L+MN 1100 | ||||
| 37 | 400220 | 1.51 | 1.83 | |
| Bush 16x18x15 GGB 1615 DP4 | ||||
| 38 | 462653 | 1.66 | 2.01 | |
| BASE PLATE OF 1400 EBQ | ||||
| 39 | 492003 | 102.49 | 124.01 | |
| SPRING OF 1400 EBQ | ||||
| 40 | 462615 | 1.51 | 1.83 | |
| Switch plate OF 1400 EBQ | ||||
| 41 | 462616 | 3.60 | 4.36 | |
| SLEEVE OF 1400 EBQ | ||||
| 42 | 462613 | 2.09 | 2.53 | |
| Oval head screw PT-4,0x50-KT15 | ||||
| 43 | 228707 | 1.51 | 1.83 | |
| BALL BEARING OF 2000/1 | ||||
| 44 | 400635 | 13.13 | 15.89 | |
| GEAR OF 1400 EBQ | ||||
| 45 | 465184 | 4.61 | 5.58 | |
| Rocker OF 1400 EBQ ET-BG | ||||
| 46 | 492001 | 44.17 | 53.45 | |
| Cover OF 1400 EBQ | ||||
| 47 | 462611 | 4.46 | 5.40 | |
| Collet D 6,0 | ||||
| 48 | 494459 | 61.00 | 73.81 | |
| Collet D 8,0 | ||||
| 48 | 494460 | 61.00 | 73.81 | |
| SPANTANG SZ-D 12,7/OF1400-OF2200 | ||||
| 48 | 494465 | 61.00 | 73.81 | |
| Grub screw DIN 551-M5x25-14H-LONG | ||||
| 49 | 451536 | 1.58 | 1.91 | |
| Grub screw DIN 551-M5x30-14H-LONG | ||||
| 50 | 451537 | 1.51 | 1.83 | |
| Grub screw DIN 551-M5x20-14H-LONG | ||||
| 51 | 451535 | 1.58 | 1.91 | |
| Ch. head screw DIN 912-M6x25-8.8-TUF | ||||
| 52 | 400859 | 1.51 | 1.83 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 53 | 200578 | 1.51 | 1.83 | |
| Bush KF 4 E | ||||
| 54 | 436300 | 1.94 | 2.35 | |
| Limit stop KF 4 E | ||||
| 55 | 436520 | 13.67 | 16.54 | |
| Ball DIN 5401-7-100CR6 | ||||
| 56 | 783305 | 1.51 | 1.83 | |
| SPRING DIN 2098-0,50x6,50x15,0 | ||||
| 57 | 436528 | 2.04 | 2.47 | |
| Button KF 4 E D 23 M6x10 blau | ||||
| 58 | 436195 | 1.80 | 2.18 | |
| Support Of 1010 | ||||
| 59 | 438608 | 2.95 | 3.57 | |
| Clasp OF 1400 EBQ | ||||
| 60 | 492007 | 45.13 | 54.61 | |
| Bolt OF 1010 EB | ||||
| 61 | 455791 | 1.51 | 1.83 | |
| Compr. spring OF 1400 EBQ | ||||
| 62 | 465842 | 2.74 | 3.32 | |
| Rotary knob OF1400EBQ D34 M6x17,4bla | ||||
| 63 | 462668 | 4.18 | 5.06 | |
| Shim ring DIN 988-6x12x0,1 | ||||
| 64 | 400643 | 1.51 | 1.83 | |
| BASE PLATE OF 1400 EBQ | ||||
| 65 | 492006 | 101.16 | 122.40 | |
| O-ring 5x1,5-NBR-55SHORE | ||||
| 66 | 400648 | 1.51 | 1.83 | |
| Compr. spring DIN 2098-0,70x7,50x14,7 | ||||
| 67 | 444754 | 1.51 | 1.83 | |
| CLIP OF 1400 EBQ | ||||
| 68 | 462635 | 6.05 | 7.32 | |
| Adj. washer OF 1400 EBQ | ||||
| 69 | 462647 | 23.11 | 27.96 | |
| Oval head screw M4x10-TAPTITE-KT15 | ||||
| 70 | 228738 | 1.51 | 1.83 | |
| Plate OF 1400 EBQ | ||||
| 71 | 462637 | 15.37 | 18.60 | |
| Countersink M4x8-TAPTITE-KT15 | ||||
| 72 | 228737 | 1.51 | 1.83 | |
| Dust-extr. Syst OF 1400 | ||||
| 73 | 202471 | 29.04 | 35.14 | |
| SPANNER SW 24 DIN894 | ||||
| 74 | 772051 | 13.13 | 15.89 | |
| WRENCH SW 22 DIN894 | ||||
| 74 | 401745 | 9.36 | 11.33 | |
| CAP OF 1400 EBQ ET-BG | ||||
| 75 | 492635 | 21.54 | 26.06 | |
| Parallel side fence | ||||
| 76 | 492636 | 53.00 | 64.13 | |
| HANDLE OF 1400 EBQ VOLLST. | ||||
| 77 | 492412 | 8.28 | 10.02 | |
| Spring washer DIN 137-B-6 | ||||
| 79 | 228700 | 1.51 | 1.83 | |
| Rotary knob D34 M6x15,5 blau | ||||
| 80 | 482110 | 2.38 | 2.88 | |
| Angle piece OF 1400 EBQ | ||||
| 81 | 493183 | 53.24 | 64.42 | |
| Jaws OF 1400 EBQ | ||||
| 83 | 463148 | 2.16 | 2.61 | |
| Oval head screw DIN 7985-M6x18-4.8-PZV | ||||
| 85 | 400142 | 1.51 | 1.83 | |
| Thumbwheel OF 1400 | ||||
| 86 | 492311 | 14.40 | 17.42 | |
| Hood SF-OF 2000 | ||||
| 87 | 445497 | 11.30 | 13.67 | |
| SPACER A 10x8x32 | ||||
| 88 | 465333 | 3.46 | 4.19 | |
| CLAMP SLEEVE OF 1400 EBQ | ||||
| 89 | 465165 | 8.64 | 10.45 | |
| Compression spr DIN 2098-0,45x2,90x10,0 | ||||
| 90 | 444127 | 1.51 | 1.83 | |
| Ball DIN 5401-3-X40CR13 | ||||
| 91 | 200861 | 1.51 | 1.83 | |
| HOOD OF 1400 EBQ | ||||
| 92 | 466390 | 3.10 | 3.75 | |
| Chip deflector | ||||
| 93 | 492732 | 23.00 | 27.83 | |
| Rod OF 1400 | ||||
| 94 | 463147 | 9.79 | 11.85 | |
| SEALING OF 1400 | ||||
| 95 | 469725 | 3.10 | 3.75 | |
| SCHAAL OF 1400 MM | ||||
| 96 | 10689571 | 3.38 | 4.09 | |
| Scale OF 1400 EBQ | ||||
| 96 | 462622 | 2.90 | 3.51 | |
| Disc OF 1400 | ||||
| 97 | 10277744 | 1.73 | 2.09 | |
