Here you will find all available parts and drawings of the 'Festool 490176 ( OF1010EBQ230V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

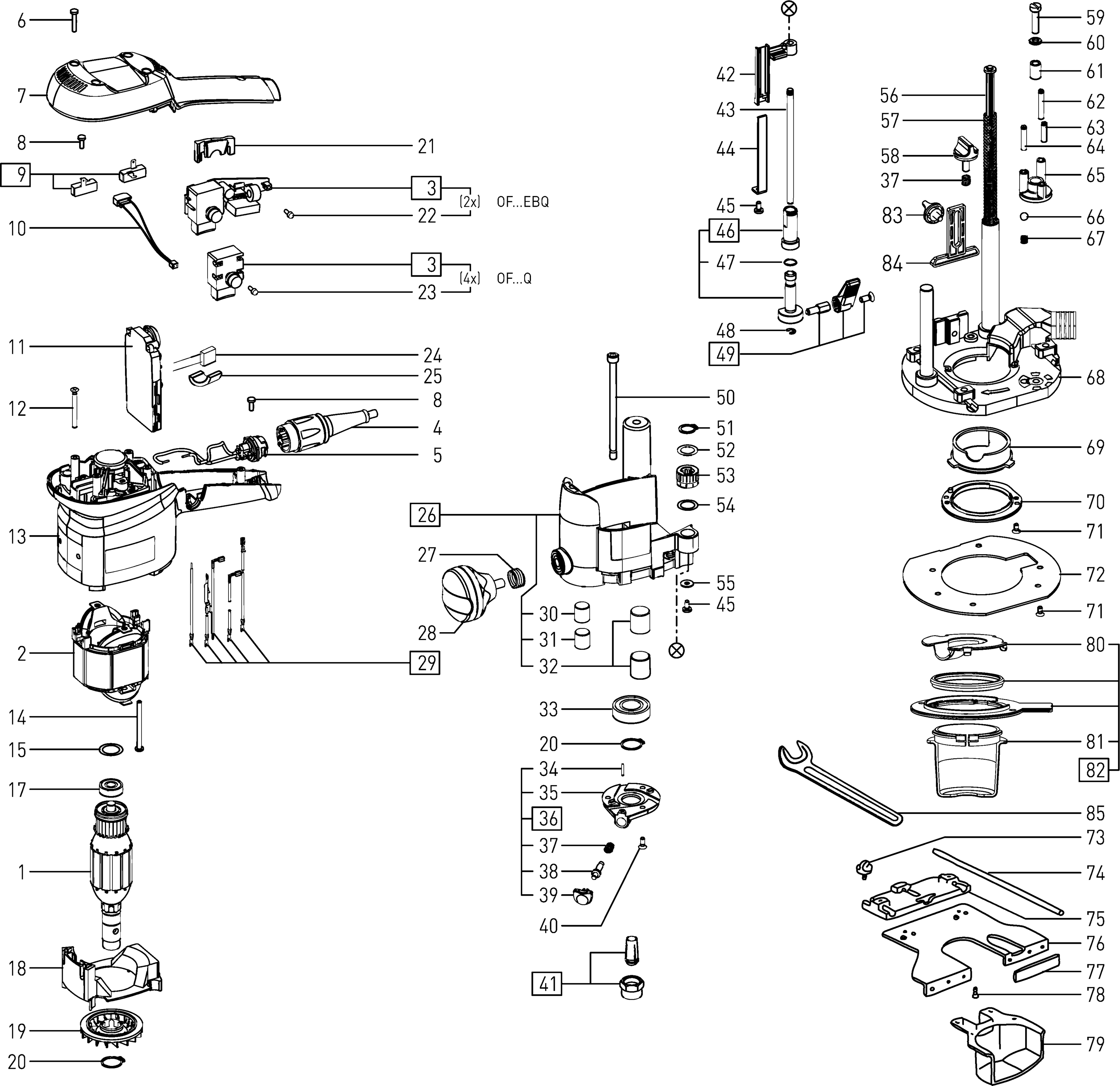

Technical drawing of model Festool 490176 ( OF1010EBQ230V )
Spare parts list of model Festool 490176 ( OF1010EBQ230V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V OF 1010 EBQ 230V ET-BG | ||||
| 1 | 492040 | 135.88 | 164.41 | |
| FIELD COIL OF 1000 E ET-BG | ||||
| 2 | 491885 | 55.30 | 66.91 | |
| Switch modul OF 1010 EBQ ET-BAUGRUPPE | ||||
| 3 | 490136 | 27.35 | 33.09 | |
| plug it-kabel H05 RN-F-4 | ||||
| 4 | 203914 | 25.62 | 31.00 | |
| Socket OF 1010 EBQ | ||||
| 5 | 489926 | 8.26 | 9.99 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 6 | 400584 | 1.39 | 1.68 | |
| HOUSING COVER OF 1010 EBQ | ||||
| 7 | 463090 | 7.39 | 8.94 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 8 | 219031 | 1.39 | 1.68 | |
| BRUSH HOLDER OF 1000 EB | ||||
| 9 | 488579 | 10.56 | 12.78 | |
| Tachometer coil RTM OF | ||||
| 10 | 457920 | 7.46 | 9.03 | |
| ELECTRONIC CPL. OF 1010 EBQ | ||||
| 11 | 490144 | 99.10 | 119.91 | |
| Countersink M4x40-TAPTITE-TORX | ||||
| 12 | 400866 | 1.39 | 1.68 | |
| HOUSING OF 1010 EBQ | ||||
| 13 | 463087 | 22.02 | 26.64 | |
| Oval head screw PT-4,0x50-KT15 | ||||
| 14 | 228707 | 1.39 | 1.68 | |
| WASHER 14x21,8x0,3 L+MN 1100 | ||||
| 15 | 203777 | 1.39 | 1.68 | |
| ROLLER BEARING 608 RS DIN 625 | ||||
| 17 | 401524 | 5.09 | 6.16 | |
| Air guide washe RTM-EA | ||||
| 18 | 434430 | 2.11 | 2.55 | |
| Fan OF 900 E | ||||
| 19 | 440171 | 2.11 | 2.55 | |
| Circlip DIN 471-17x1 | ||||
| 20 | 401191 | 1.39 | 1.68 | |
| Bridge RTM | ||||
| 21 | 463095 | 1.39 | 1.68 | |
| Oval head screw PS 2 E M3x 6,5 | ||||
| 22 | 228718 | 1.39 | 1.68 | |
| SCREW M3x6,5 DIN 84 | ||||
| 23 | 400605 | 1.39 | 1.68 | |
| CAPACITOR AXT 50 LA ET | ||||
| 24 | 492778 | 18.15 | 21.96 | |
| FOAM RUBBER STR AXT 55 | ||||
| 25 | 434716 | 1.39 | 1.68 | |
| Bearing cover OF 1010 | ||||
| 26 | 490564 | 84.82 | 102.63 | |
| SPRING DIN 2098-1,60x17,20x16,5 | ||||
| 27 | 440729 | 1.39 | 1.68 | |
| Handle RS 1 C | ||||
| 28 | 487554 | 5.15 | 6.23 | |
| Set of flexible OF 1010 EBQ ET-BG | ||||
| 29 | 491194 | 30.01 | 36.31 | |
| Pressure ring KF 4 E | ||||
| 30 | 436301 | 2.45 | 2.96 | |
| Bush 12x14x12 GGB 1212 DP4 | ||||
| 31 | 210031 | 1.39 | 1.68 | |
| Bush 16x18x10 GGB 1610 DP4 | ||||
| 32 | 400994 | 1.39 | 1.68 | |
| Ball bearing 6003 DDW CM DIN 625 NSK | ||||
| 33 | 462795 | 9.64 | 11.66 | |
| Dowel pin DIN 1481-2x12-ST | ||||
| 34 | 200747 | 1.39 | 1.68 | |
| Cover OFK 700 EQ | ||||
| 35 | 473550 | 6.79 | 8.22 | |
| Cover OFK 700 EQ | ||||
| 36 | 494788 | 13.67 | 16.54 | |
| Compr. spring DIN 2098-0,70x7,50x14,7 | ||||
| 37 | 444754 | 1.39 | 1.68 | |
| Bolt KF 4 E | ||||
| 38 | 436305 | 9.17 | 11.10 | |
| CAP OF 1000 EB | ||||
| 39 | 450206 | 1.39 | 1.68 | |
| Countersink M4x10-TAPTITE-T15 | ||||
| 40 | 228581 | 1.39 | 1.68 | |
| Collet | ||||
| 41 | 488755 | 56.51 | 68.38 | |
| Collet | ||||
| 41 | 488761 | 56.51 | 68.38 | |
| INDICATOR OF 1010 EB ET-BG | ||||
| 42 | 492173 | 16.02 | 19.38 | |
| Depth stop OF 1000 EB | ||||
| 43 | 450677 | 3.24 | 3.92 | |
| Limit stop OF 1000 EB | ||||
| 44 | 450678 | 6.34 | 7.67 | |
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 45 | 228570 | 1.39 | 1.68 | |
| FINE ADJUSTMENT OF 1010 EBQ | ||||
| 46 | 490143 | 22.02 | 26.64 | |
| No longer available, no replacement | ||||
| 47 | 200926 | |||
| Lock washer Din 6799-4 | ||||
| 48 | 400106 | 1.39 | 1.68 | |
| LEVER OF 1000 | ||||
| 49 | 490429 | 18.13 | 21.94 | |
| Screw OF 1000 EB | ||||
| 50 | 400492 | 5.88 | 7.11 | |
| Circlip DIN 471-13x1 | ||||
| 51 | 216770 | 1.39 | 1.68 | |
| SHIM RING DIN 988-13X19X0.5 | ||||
| 52 | 228503 | 1.39 | 1.68 | |
| Adjusting wheel OF 1010 EB | ||||
| 53 | 457351 | 3.30 | 3.99 | |
| Compens. washer 13,2x18,8x0,2 | ||||
| 54 | 436828 | 1.39 | 1.68 | |
| Disc DIN 9021-4,3-100 HV | ||||
| 55 | 403100 | 1.39 | 1.68 | |
| Bolt OF 1010 EB | ||||
| 56 | 455791 | 1.39 | 1.68 | |
| SPRING DIN2098-1,25x11,50x255,0 | ||||
| 57 | 436377 | 1.51 | 1.83 | |
| Rotary knob OF2000 EB D 23 M6x16 bl | ||||
| 58 | 444633 | 2.04 | 2.47 | |
| Ch. head screw DIN 912-M6x25-8.8-TUF | ||||
| 59 | 400859 | 1.39 | 1.68 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 60 | 200578 | 1.39 | 1.68 | |
| Bush KF 4 E | ||||
| 61 | 436300 | 1.78 | 2.15 | |
| Grub screw DIN 551-M5x30-14H-LONG | ||||
| 62 | 451537 | 1.39 | 1.68 | |
| Grub screw DIN 551-M5x20-14H-LONG | ||||
| 63 | 451535 | 1.39 | 1.68 | |
| Grub screw DIN 551-M5x25-14H-LONG | ||||
| 64 | 451536 | 1.39 | 1.68 | |
| Limit stop KF 4 E | ||||
| 65 | 436520 | 13.43 | 16.25 | |
| Ball DIN 5401-7-100CR6 | ||||
| 66 | 783305 | 1.39 | 1.68 | |
| SPRING DIN 2098-0,50x6,50x15,0 | ||||
| 67 | 436528 | 1.39 | 1.68 | |
| Plate OF 1000 EB | ||||
| 68 | 488577 | 77.32 | 93.56 | |
| Hood OF 1010 EB | ||||
| 69 | 450507 | 1.94 | 2.35 | |
| Bush OF 1010 R | ||||
| 70 | 10364663 | 1.58 | 1.91 | |
| Countersink M4x8-TAPTITE-KT15 | ||||
| 71 | 228737 | 1.39 | 1.68 | |
| Plate OF 1 E | ||||
| 72 | 436477 | 14.16 | 17.13 | |
| Button KF 4 E D 23 M6x10 blau | ||||
| 73 | 436195 | 1.58 | 1.91 | |
| Round guide KF 4 E | ||||
| 74 | 451754 | 6.60 | 7.99 | |
| Guide OF 1 E | ||||
| 75 | 483449 | 5.74 | 6.95 | |
| Limit stop OF 1010 | ||||
| 76 | 10035623 | 18.72 | 22.65 | |
| Rest OF 1 E | ||||
| 77 | 437478 | 1.39 | 1.68 | |
| Countersink PT-4,0x10-KT15 | ||||
| 78 | 219102 | 1.39 | 1.68 | |
| ACRYLIC CHIP GU OF 1 E | ||||
| 79 | 437307 | 7.06 | 8.54 | |
| COVER,LEFT KSF-OF 1010 | ||||
| 80 | 466885 | 1.78 | 2.15 | |
| Hood KSF-OF 1010 | ||||
| 81 | 467468 | 1.92 | 2.32 | |
| Chip deflector | ||||
| 82 | 493180 | 24.26 | 29.35 | |
| Button KF 4 E D 23 M6x10 blau | ||||
| 83 | 436195 | 1.58 | 1.91 | |
| Support Of 1010 | ||||
| 84 | 438608 | 2.57 | 3.11 | |
| SPANNER 19ml SW 19 DIN894 | ||||
| 85 | 772049 | 8.78 | 10.62 | |
