Here you will find all available parts and drawings of the 'Festool 768868 ( MX1000EEF )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

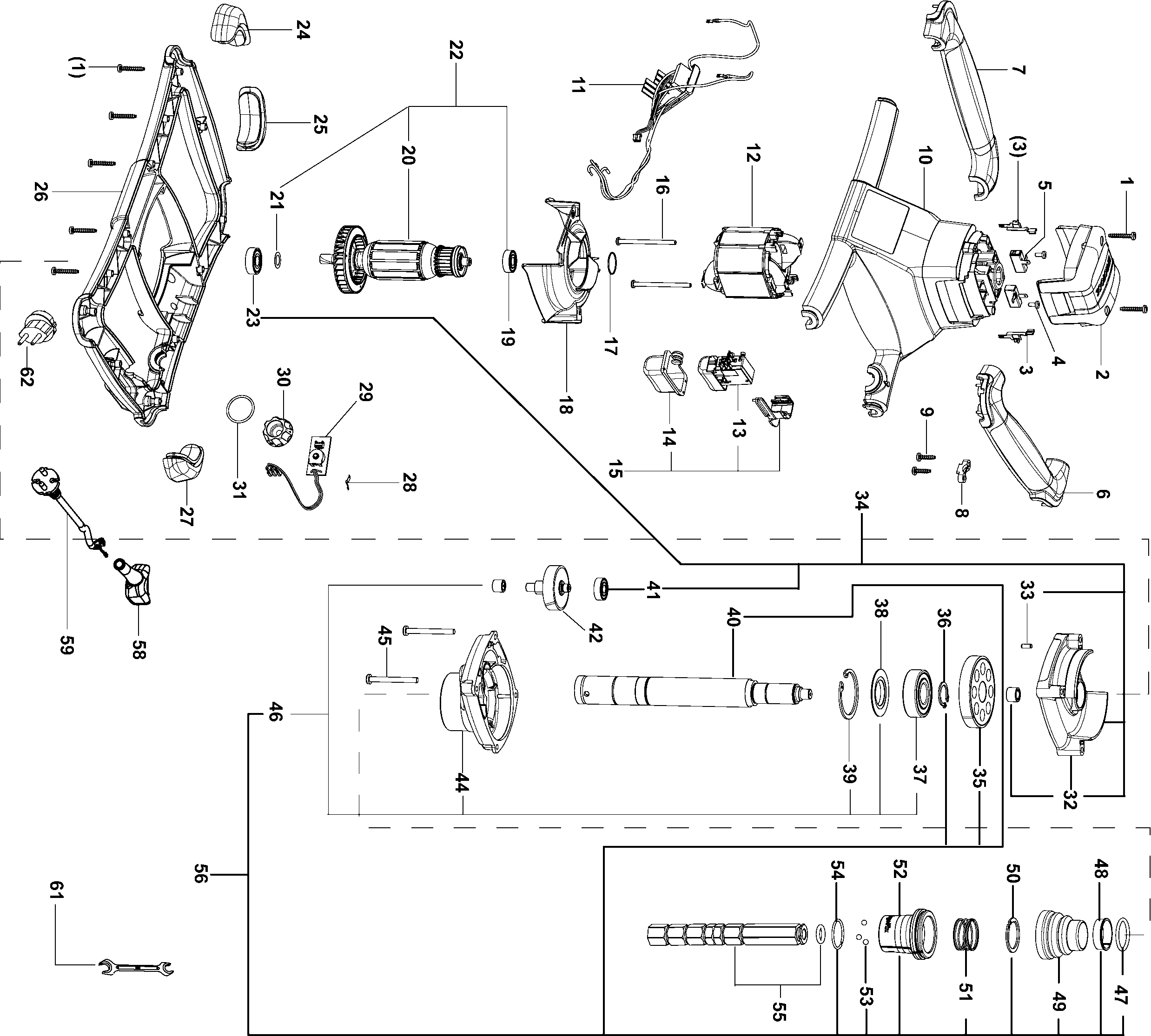

Technical drawing of model Festool 768868 ( MX1000EEF )

Spare parts list of model Festool 768868 ( MX1000EEF )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Screw PT 40x25 K-TORX
1 614772 1.39 1.68
Cover MX 1000 E EF
2 768554 11.28 13.65
Plug-in bracket AP 65 E
3 443331 1.51 1.83
Screw PT 35x8 K
4 625071 1.39 1.68
Brush set MXP 1000
5 627047 22.51 27.24
Pistol stock MX 1000 E EF rechts
6 768557 10.75 13.01
Pistol stock MX 1000 E EF links
7 768558 10.75 13.01
Clamp LKB 12 USA
8 619112 1.39 1.68
Screw 4x16 ECO-SYN BN 84229
9 625697 1.39 1.68
Motor frame MX 1000 E EF
10 768552 20.69 25.03
Electronic MX 1000 E EF -230V
11 10696835 63.40 76.71
Field Package MX 1000 E EF ET-BG
12 10553601 41.87 50.66
Switch Marquardt 1299.1201
13 768875 15.73 19.03
Switch cover MXP 1000
14 10040054 1.58 1.91
Switch MX 1200/2 E EF ET-BG
15 769424 23.72 28.70
Screw PT KL 40x60
16 614776 1.39 1.68
O-ring 20x1-NBR-70SHORE
17 479012 1.39 1.68
Air conduction MXP 1000
18 763759 2.90 3.51
No information available, not orderable
19 xxx
Armature MXP 1000 230V
20 779892 144.11 174.37
Washer 10x16x0,3 DIN 988 PS ST
21 761527 1.39 1.68
No information available, not orderable
22 769408
Bearing 6000LLUVTN9C13/20V2L39-9
23 763543 5.28 6.39
Damper MX 1000 E EF unten
24 768585 6.34 7.67
Damper MX 1000 E EF oben links
25 768586 6.34 7.67
Handle MX 1000 E EF
26 768556 15.73 19.03
Damper MX 1000 E EF oben rechts
27 768553 6.34 7.67
Plate spring TDK 12
28 457753 1.39 1.68
Module MX 1200
29 10035932 14.76 17.86
Skalenring MXP 1000
30 768587 7.46 9.03
Ring 25x2 NBR 70
31 614981 1.39 1.68
Bearing cover MX 1000/2 E EF
32 768878 35.09 42.46
Pin 4m6x10
33 614988 1.39 1.68
Bearing cover MX 1000/2 E EF ET-BG
34 769409 45.50 55.06
Bearing cover MX 1000 E EF ET-BG
34 769406 34.24 41.43
Spindle wheel MXP 1200
35 764147 20.21 24.45
Safety ring D20, CSN 02 2930
36 615480 1.39 1.68
Bearing 6204 2RS
37 614999 9.17 11.10
Cover EVP 16-2S
38 592444 2.83 3.42
Safety ring D47, CSN 02 2931
39 614804 1.39 1.68
Output shaft MXP 1000 EF
40 764174 66.19 80.09
Bearing 608 ZZ T C5/10 V2 L21
41 763547 3.36 4.07
Gear shaft MXP 1200
42 764146 30.49 36.89
Gear box MX 1000 E EF
44 768589 33.88 40.99
Screw 5x50 Eco-syn
45 764120 1.39 1.68
Gear housing MX 1000 E EF ET-BG
46 769404 44.77 54.17
O-ring 23x3,52 EPDM 70
47 401162 1.39 1.68
Sliding sleeve MXP 1000 E EF
48 10001347 1.39 1.68
Sealing lip MXP EF
49 764180 4.94 5.98
Circlip 28 BN 829
50 764184 3.89 4.71
Spring MXP EF
51 10000545 1.39 1.68
Ring MX 1000 E EF
52 768594 7.06 8.54
Ball 5-40 CSN 02 3680
53 614486 1.39 1.68
Spring ring 28
54 625048 1.39 1.68
Adapter AD-EF-M14/80 ErgoFix
55 769091 18.51 22.40
Gear housing MX 1000 E EF ET-BG
56 769405 116.40 140.84
Cable Protective Sleeve
58 10429748 5.41 6.55
Mains cable MX 1000 RE EF EU
59 10307709 24.32 29.43
O-ring 26x1,5
63 10179563 1.39 1.68
O-ring 47x2
64 10179564 1.39 1.68
