Here you will find all available parts and drawings of the 'Festool 768592 (MX1000/2EEF)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

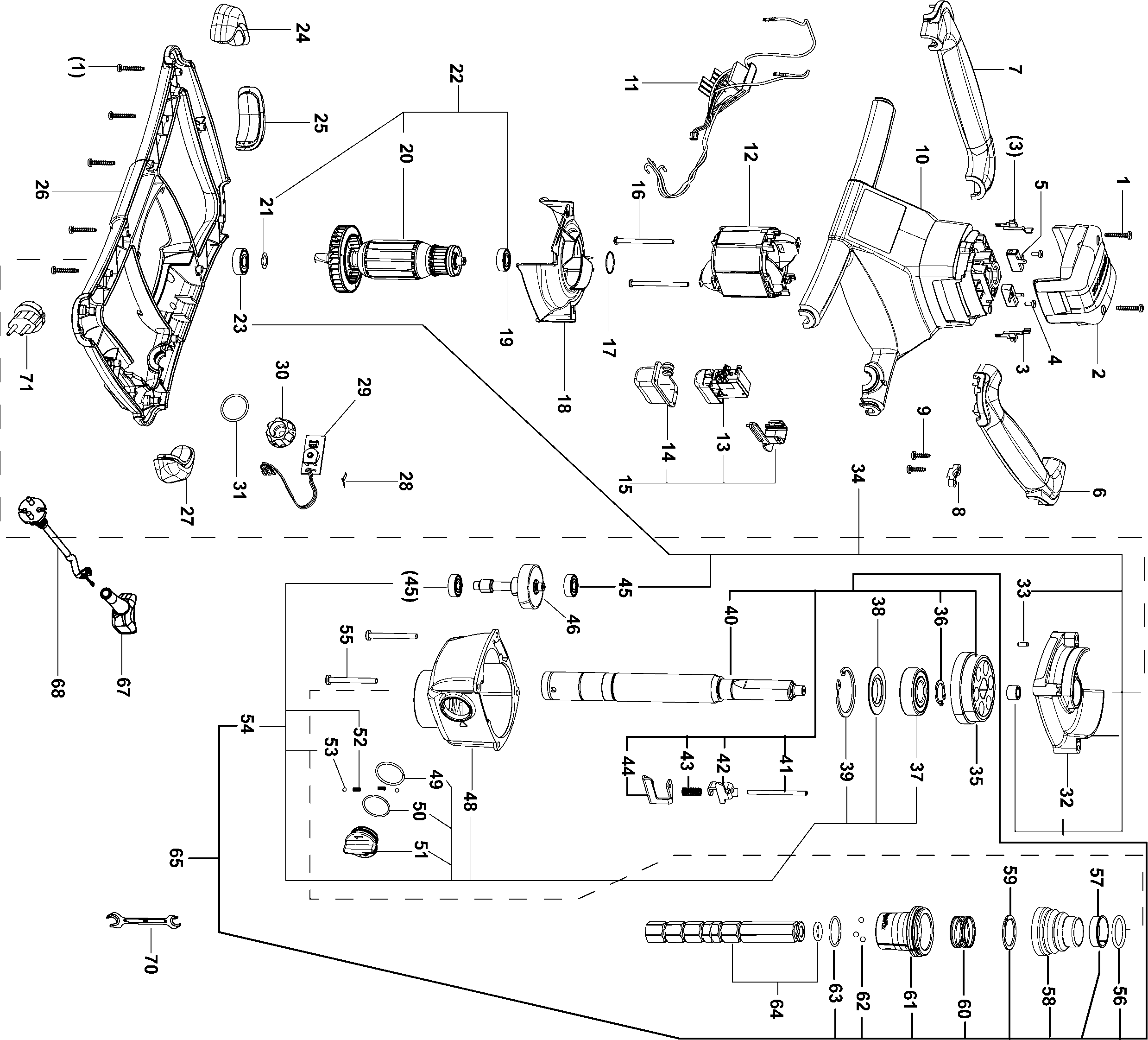

Technical drawing of model Festool 768592 (MX1000/2EEF)
Spare parts list of model Festool 768592 (MX1000/2EEF)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw PT 40x25 K-TORX | ||||
| 1 | 614772 | 1.51 | 1.83 | |
| Cover MX 1000 E EF | ||||
| 2 | 768554 | 11.75 | 14.22 | |
| Plug-in bracket AP 65 E | ||||
| 3 | 443331 | 1.73 | 2.09 | |
| Screw PT 35x8 K | ||||
| 4 | 625071 | 1.51 | 1.83 | |
| Brush set MXP 1000 | ||||
| 5 | 627047 | 22.51 | 27.24 | |
| Pistol stock MX 1000 E EF rechts | ||||
| 6 | 768557 | 11.74 | 14.21 | |
| Pistol stock MX 1000 E EF links | ||||
| 7 | 768558 | 11.74 | 14.21 | |
| Clamp LKB 12 USA | ||||
| 8 | 619112 | 1.51 | 1.83 | |
| Screw 4x16 ECO-SYN BN 84229 | ||||
| 9 | 625697 | 1.51 | 1.83 | |
| Motor frame MX 1000 E EF | ||||
| 10 | 768552 | 21.54 | 26.06 | |
| Electronics MX 1000/2 E EF 230 V | ||||
| 11 | 10017763 | 64.25 | 77.74 | |
| Field assembly MXP 1002 230V | ||||
| 12 | 765992 | 42.35 | 51.24 | |
| Switch Marquardt 1299.1201 | ||||
| 13 | 768875 | 15.73 | 19.03 | |
| Switch cover MXP 1000 | ||||
| 14 | 10040054 | 1.73 | 2.09 | |
| Switch MX 1200/2 E EF ET-BG | ||||
| 15 | 769424 | 23.72 | 28.70 | |
| Screw PT KL 40x60 | ||||
| 16 | 614776 | 1.51 | 1.83 | |
| O-ring 20x1-NBR-70SHORE | ||||
| 17 | 479012 | 1.51 | 1.83 | |
| Air conduction MXP 1000 | ||||
| 18 | 763759 | 3.17 | 3.84 | |
| No information available, not orderable | ||||
| 19 | xxx | |||
| Armature MXP 1000 230V | ||||
| 20 | 779892 | 144.11 | 174.37 | |
| Washer 10x16x0,3 DIN 988 PS ST | ||||
| 21 | 761527 | 1.51 | 1.83 | |
| Armature MX 1000/2 E EF ET-BG | ||||
| 22 | 10553600 | 144.84 | 175.26 | |
| Armature set MX 1000/2 E EF ET-BG | ||||
| 22 | 769413 | 144.84 | 175.26 | |
| Bearing 6000LLUVTN9C13/20V2L39-9 | ||||
| 23 | 763543 | 5.76 | 6.97 | |
| Damper MX 1000 E EF unten | ||||
| 24 | 768585 | 7.34 | 8.88 | |
| Damper MX 1000 E EF oben links | ||||
| 25 | 768586 | 7.20 | 8.71 | |
| Handle MX 1000 E EF | ||||
| 26 | 768556 | 16.34 | 19.77 | |
| Damper MX 1000 E EF oben rechts | ||||
| 27 | 768553 | 7.34 | 8.88 | |
| Plate spring TDK 12 | ||||
| 28 | 457753 | 1.51 | 1.83 | |
| Module MX 1200 | ||||
| 29 | 10035932 | 15.25 | 18.45 | |
| Skalenring MXP 1000 | ||||
| 30 | 768587 | 8.50 | 10.28 | |
| Ring 25x2 NBR 70 | ||||
| 31 | 614981 | 1.51 | 1.83 | |
| Bearing cover MX 1000/2 E EF | ||||
| 32 | 768878 | 36.54 | 44.21 | |
| Pin 4m6x10 | ||||
| 33 | 614988 | 1.51 | 1.83 | |
| Bearing cover MX 1000/2 E EF ET-BG | ||||
| 34 | 769409 | 47.31 | 57.25 | |
| Rail MXP 1002 | ||||
| 35 | 779909 | 26.38 | 31.92 | |
| Safety ring D20, CSN 02 2930 | ||||
| 36 | 615480 | 1.51 | 1.83 | |
| Bearing 6204 2RS | ||||
| 37 | 614999 | 10.01 | 12.11 | |
| Cover EVP 16-2S | ||||
| 38 | 592444 | 3.24 | 3.92 | |
| Safety ring D47, CSN 02 2931 | ||||
| 39 | 614804 | 1.51 | 1.83 | |
| Output shaft MXP 1002 EF | ||||
| 40 | 764185 | 82.89 | 100.30 | |
| Guide pin PDP 20-2EQ | ||||
| 41 | 622704 | 3.02 | 3.65 | |
| Connect. member MXP 1002 | ||||
| 42 | 763754 | 3.96 | 4.79 | |
| Spring MXP 1002 | ||||
| 43 | 764152 | 1.51 | 1.83 | |
| Connecting memb MXP 1002 | ||||
| 44 | 763753 | 3.46 | 4.19 | |
| Bearing 608 ZZ T C5/10 V2 L21 | ||||
| 45 | 763547 | 3.67 | 4.44 | |
| Gear shaft MXP 1002 | ||||
| 46 | 779904 | 45.86 | 55.49 | |
| Gear box MX 1000/2 E EF | ||||
| 48 | 768590 | 42.83 | 51.82 | |
| Spring ring 28 | ||||
| 49 | 625048 | 1.51 | 1.83 | |
| O-ring 25,1x1,6 NBR 70 | ||||
| 50 | 764134 | 1.51 | 1.83 | |
| Control gear MX 1000/2 E EF | ||||
| 51 | 768588 | 4.03 | 4.88 | |
| Spring EV 108 D | ||||
| 52 | 593239 | 1.51 | 1.83 | |
| Ball 3.5-40 CSN 02 3680 | ||||
| 53 | 614484 | 1.51 | 1.83 | |
| Gear housing MX 1000/2 E EF ET-BG | ||||
| 54 | 769410 | 64.98 | 78.63 | |
| Screw 5x50 Eco-syn | ||||
| 55 | 764120 | 1.51 | 1.83 | |
| O-ring 23x3,52 EPDM 70 | ||||
| 56 | 401162 | 1.51 | 1.83 | |
| Sliding sleeve MXP 1000 E EF | ||||
| 57 | 10001347 | 1.51 | 1.83 | |
| Sealing lip MXP EF | ||||
| 58 | 764180 | 5.62 | 6.80 | |
| Circlip 28 BN 829 | ||||
| 59 | 764184 | 4.46 | 5.40 | |
| Spring MXP EF | ||||
| 60 | 10000545 | 1.58 | 1.91 | |
| Ring MX 1000 E EF | ||||
| 61 | 768594 | 8.06 | 9.75 | |
| Ball 5-40 CSN 02 3680 | ||||
| 62 | 614486 | 1.51 | 1.83 | |
| Spring ring 28 | ||||
| 63 | 625048 | 1.51 | 1.83 | |
| ADAPTER AD-EF-M14/80 ERGOFIX | ||||
| 64 | 769091 | 17.00 | 20.57 | |
| Gear housing MX 1000/2 E EF ET-BG | ||||
| 65 | 769412 | 147.38 | 178.33 | |
| Cable Protective Sleeve | ||||
| 67 | 10429748 | 6.55 | 7.93 | |
| Mains cable MX 1000 RE EF EU | ||||
| 68 | 10307709 | 24.32 | 29.43 | |
| O-ring 26x1,5 | ||||
| 72 | 10179563 | 1.51 | 1.83 | |
| O-ring 47x2 | ||||
| 73 | 10179564 | 1.58 | 1.91 | |
