Here you will find all available parts and drawings of the 'Festool 495890 ( MONTAGEAANHETPLAFONDEAA-D )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

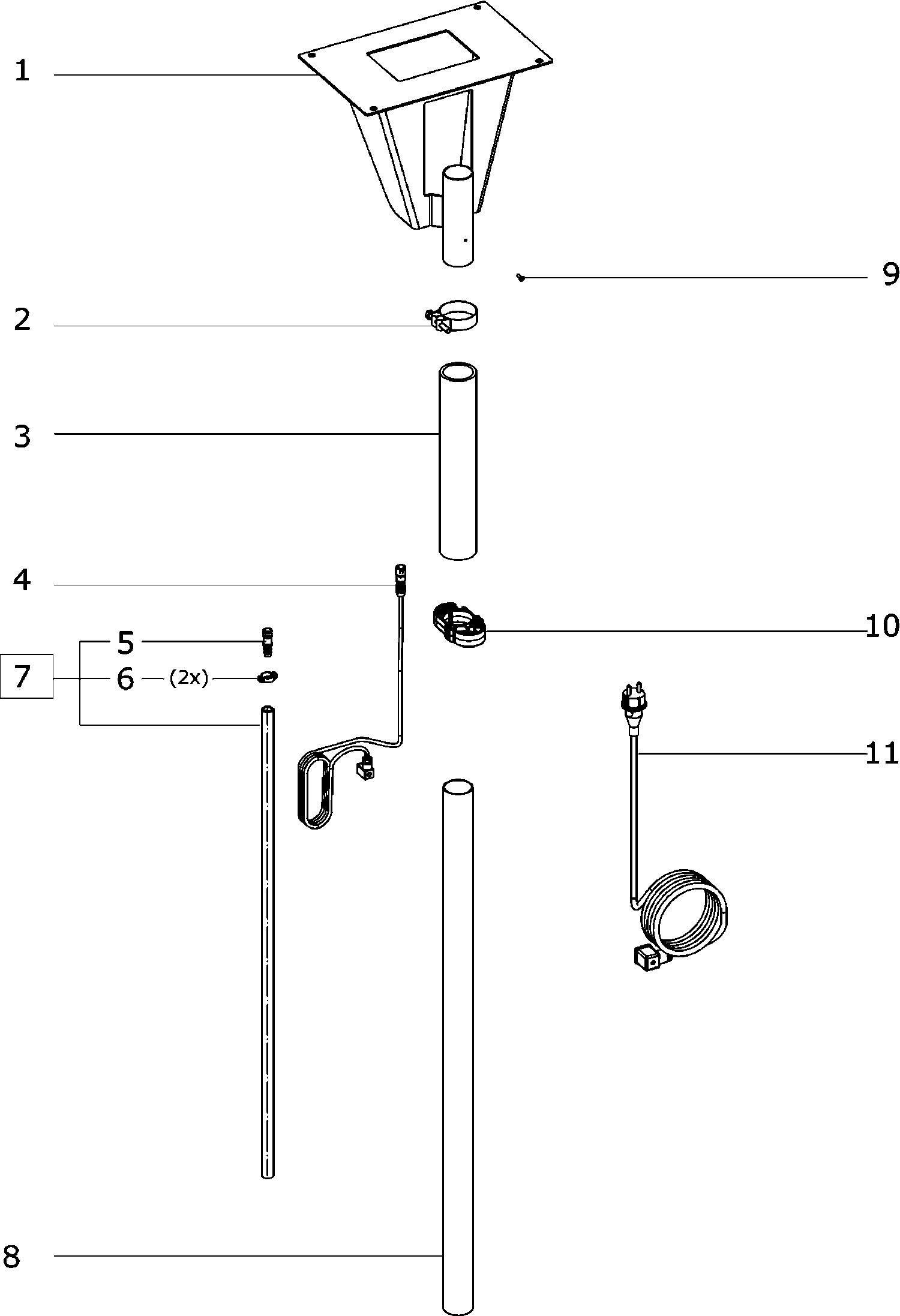

Technical drawing of model Festool 495890 ( MONTAGEAANHETPLAFONDEAA-D )
Spare parts list of model Festool 495890 ( MONTAGEAANHETPLAFONDEAA-D )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Mounting EAA-D | ||||
| 1 | 475412 | 286.41 | 346.56 | |
| Clip ASA 5000 | ||||
| 2 | 445467 | 22.26 | 26.93 | |
| Hose ASA 5000 | ||||
| 3 | 445466 | 59.17 | 71.60 | |
| Control cable v. EAA 2x0.34 PVC 2.5M | ||||
| 4 | 495508 | 102.12 | 123.57 | |
| Plug-in socket STTL-FE 13mm ET-BG | ||||
| 5 | 200225 | 15.12 | 18.30 | |
| Terminal screw Fa. Oetiker ET-BG | ||||
| 6 | 200632 | 11.37 | 13.76 | |
| Air hose BG_7m EAA-D | ||||
| 7 | 495746 | 77.08 | 93.27 | |
| Pipe ASA 5000 | ||||
| 8 | 445468 | 70.18 | 84.92 | |
| Blind rivet ASA 5000 | ||||
| 9 | 445469 | 7.85 | 9.50 | |
| Cable clamp EAA-D | ||||
| 10 | 495716 | 30.25 | 36.60 | |
| Cable with plug H07 RN-F 3x1.52.5MDIN | ||||
| 11 | 475442 | 38.60 | 46.71 | |
