Here you will find all available parts and drawings of the 'Festool 493359 ( MODULEDRAGERCMS-TS55 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

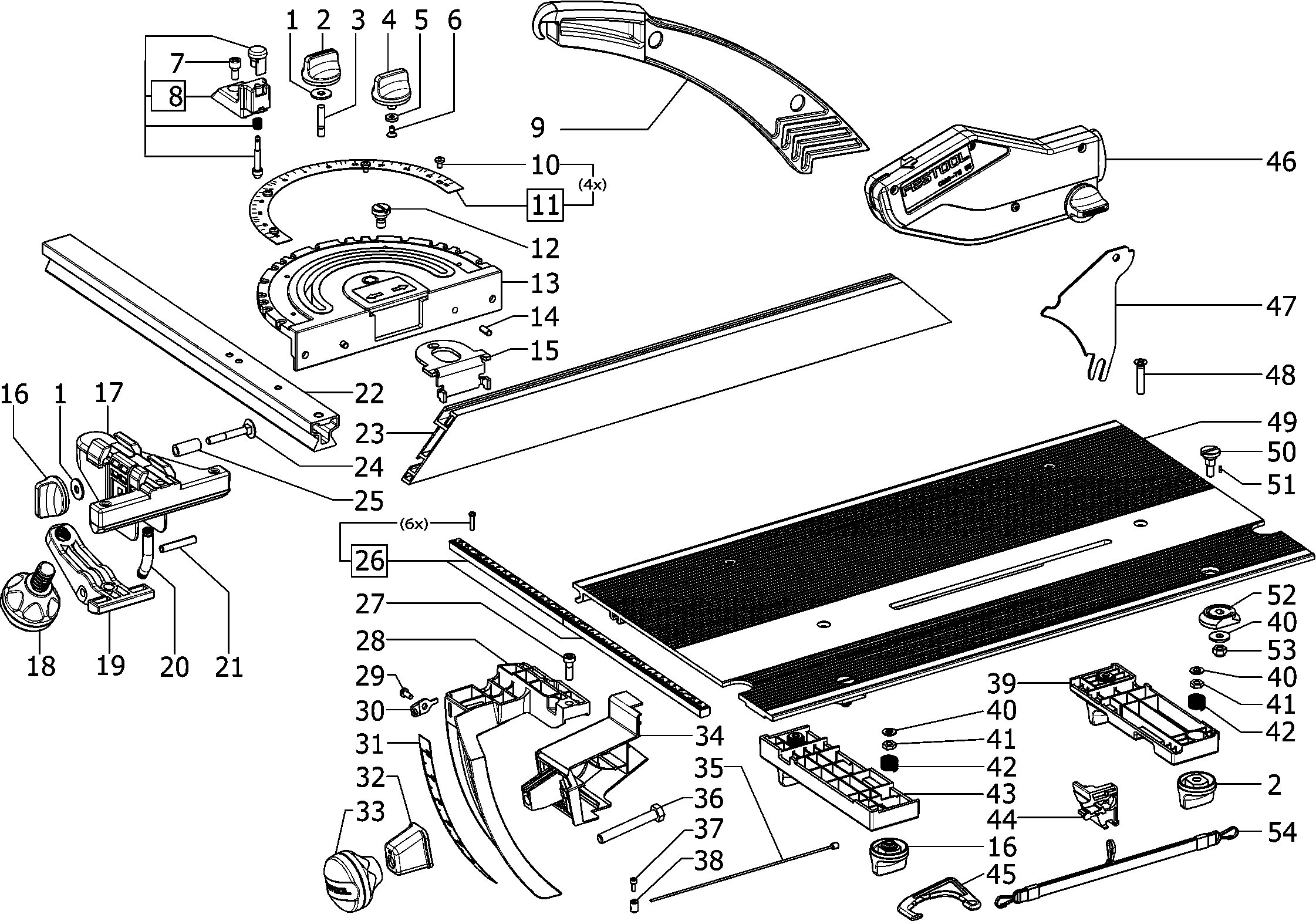

Technical drawing of model Festool 493359 ( MODULEDRAGERCMS-TS55 )
Spare parts list of model Festool 493359 ( MODULEDRAGERCMS-TS55 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Disc DIN 9021-6,4-100 HV | ||||
| 1 | 228546 | 1.39 | 1.68 | |
| Rotary knob D34 M6/8T blue | ||||
| 2 | 440713 | 2.71 | 3.28 | |
| Stud M6x20 DIN 938 5.8 | ||||
| 3 | 464525 | 1.39 | 1.68 | |
| Rotary knob D34 Exz.10 blue | ||||
| 4 | 487755 | 8.45 | 10.22 | |
| Disc CS 70 EB | ||||
| 5 | 448471 | 3.30 | 3.99 | |
| Countersink M4x8-TAPTITE-T15 | ||||
| 6 | 219043 | 1.39 | 1.68 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 7 | 200684 | 1.39 | 1.68 | |
| Support device CS 70 EB | ||||
| 8 | 489181 | 26.86 | 32.50 | |
| Workpiece hold CS 70 EB | ||||
| 9 | 450199 | 6.60 | 7.99 | |
| Oval head screw M4x6-DUO-TAPTITE-PZV | ||||
| 10 | 400348 | 1.39 | 1.68 | |
| GRADUATED SCALE CS 70 EB | ||||
| 11 | 488156 | 21.78 | 26.35 | |
| Flat head screw CS 70 EB | ||||
| 12 | 448065 | 4.03 | 4.88 | |
| Swivel Section CS 70 EB ET-BG | ||||
| 13 | 10699976 | 43.56 | 52.71 | |
| Swiv. segment CS 70 EB | ||||
| 13 | 448014 | 30.13 | 36.46 | |
| Dowel pin DIN 7346-5x12-ST | ||||
| 14 | 228692 | 1.39 | 1.68 | |
| Clamping plate CS 50 EB | ||||
| 15 | 10023711 | 4.68 | 5.66 | |
| Rotary knob BASIS 2 D34 M6/11T | ||||
| 16 | 483350 | 6.67 | 8.07 | |
| Clamp. element CS 70 EB | ||||
| 17 | 488433 | 40.78 | 49.34 | |
| Handle CS 70 EB COMPLETE | ||||
| 18 | 487893 | 7.66 | 9.27 | |
| Clamp support CS 70 | ||||
| 19 | 10031568 | 14.16 | 17.13 | |
| Spring CS 70 EB B.-NR. VD-164 | ||||
| 20 | 448064 | 1.85 | 2.24 | |
| Dowel pin DIN 7346-6x36-ST | ||||
| 21 | 400289 | 1.39 | 1.68 | |
| GUIDE PROFILE CS 70 EB | ||||
| 22 | 465708 | 31.34 | 37.92 | |
| Stop Profile CS 70 ET-BG | ||||
| 23 | 10711280 | 28.19 | 34.11 | |
| Cup square bolt DIN 603-M6x40-4.6 | ||||
| 24 | 228534 | 1.39 | 1.68 | |
| Spacer CS 70 EB | ||||
| 25 | 448066 | 8.52 | 10.31 | |
| Scale CMS VOLLST. ET-BG | ||||
| 26 | 493761 | 41.38 | 50.07 | |
| Ch. head screw DIN 6912-M6x18-8.8 | ||||
| 27 | 223541 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 28 | 493649 | |||
| Oval head screw PT-4,0x10-T15 | ||||
| 29 | 228729 | 1.39 | 1.68 | |
| Indicator TS 55 EBQ | ||||
| 30 | 459215 | 1.39 | 1.68 | |
| Scale CMS-TS 55 | ||||
| 31 | 469769 | 2.45 | 2.96 | |
| SPACER CMS-GE | ||||
| 32 | 469608 | 1.92 | 2.32 | |
| Handle CS 70 EB | ||||
| 33 | 487555 | 7.13 | 8.63 | |
| DRIVING PIN CMS-GE | ||||
| 34 | 469221 | 5.35 | 6.47 | |
| SEAL CMS-TS 55 | ||||
| 35 | 470269 | 10.30 | 12.46 | |
| Hex head cap sc DIN 933-M8x60-8.8 | ||||
| 36 | 400382 | 1.39 | 1.68 | |
| Screw M3x8 DIN 912-8.8 | ||||
| 37 | 200521 | 2.18 | 2.64 | |
| Clamping Piece AXP-132 E | ||||
| 38 | 714537 | 4.75 | 5.75 | |
| Clamp Bracket CMS HINTEN | ||||
| 39 | 469161 | 11.54 | 13.96 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 40 | 200578 | 1.39 | 1.68 | |
| Hexagon nut DIN 439-M6 | ||||
| 41 | 200601 | 1.39 | 1.68 | |
| Spring VL -4-1/4 | ||||
| 42 | 207813 | 1.39 | 1.68 | |
| Clamp Bracket CMS VORNE | ||||
| 43 | 469145 | 11.89 | 14.39 | |
| No information available, not orderable | ||||
| 44 | 493659 | |||
| Safety device CMS-TS 55 | ||||
| 46 | 499416 | 49.73 | 60.17 | |
| No longer available, no replacement | ||||
| 47 | 467709 | |||
| Countersink DIN 965-M6x30-4.8 | ||||
| 48 | 400894 | 1.39 | 1.68 | |
| Profile plate CMS-TS 55 | ||||
| 49 | 467983 | 143.63 | 173.79 | |
| BOLT BASIS 4 | ||||
| 50 | 437177 | 23.71 | 28.69 | |
| Dowel pin DIN 7343-2x8-ST | ||||
| 51 | 227448 | 1.39 | 1.68 | |
| FLANGE BASIS 4 | ||||
| 52 | 437176 | 1.81 | 2.19 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 53 | 228541 | 1.39 | 1.68 | |
| Hanger CMS-TS 75 KARABINER | ||||
| 54 | 472885 | 15.12 | 18.30 | |
