Here you will find all available parts and drawings of the 'Festool 10016960 (MFT/3Conturo)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

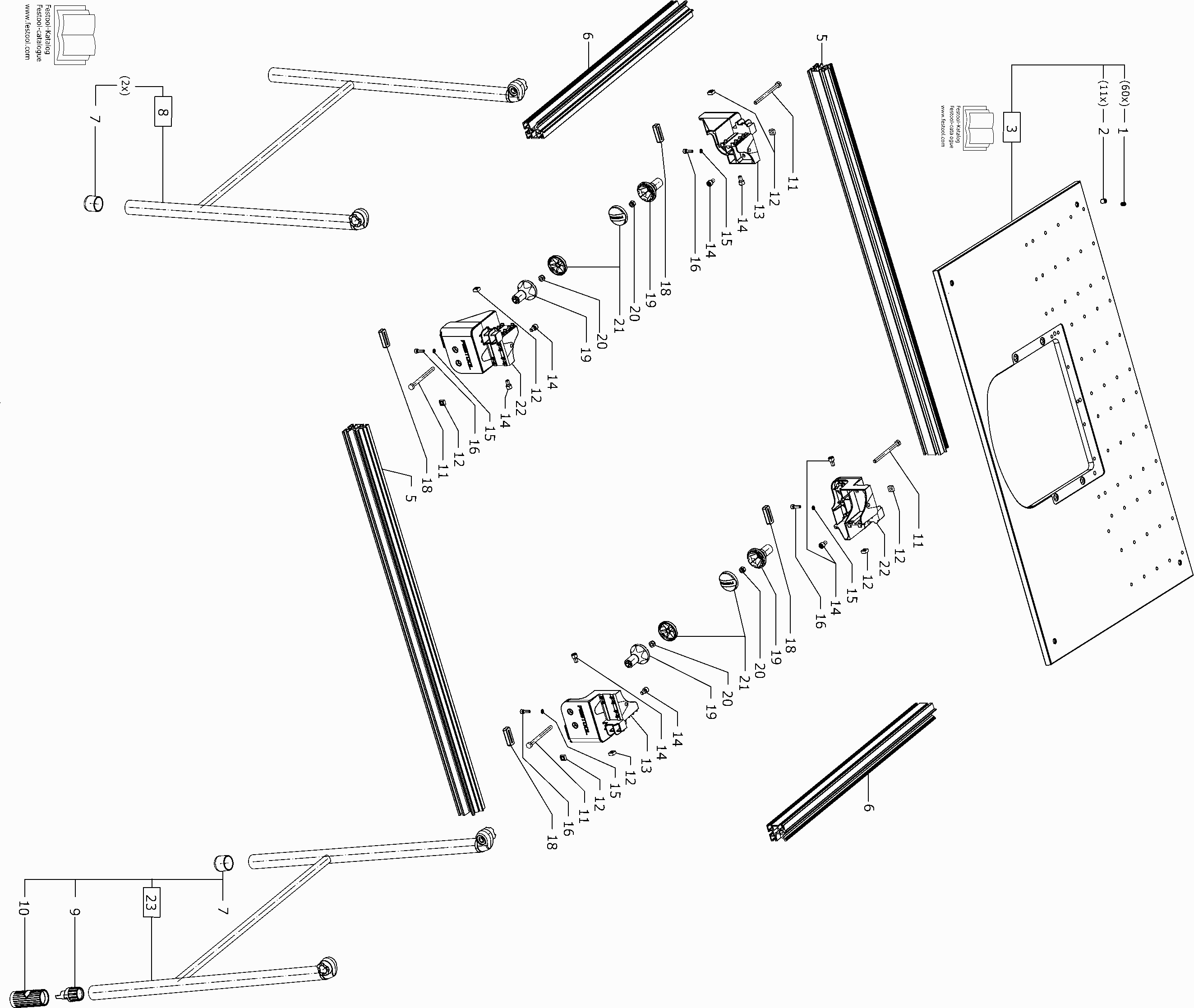

Technical drawing of model Festool 10016960 (MFT/3Conturo)
Spare parts list of model Festool 10016960 (MFT/3Conturo)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Muff M 4 | ||||
| 1 | 10013338 | 2.74 | 3.32 | |
| Sleeve MFT/3 RAMPA M 6 | ||||
| 2 | 474925 | 3.89 | 4.71 | |
| Perforated top | ||||
| 3 | 500366 | 140.00 | 169.40 | |
| Profile MTF/3 ET-BG | ||||
| 5 | 10711283 | 79.26 | 95.90 | |
| Profile VL-MTF/3 ET-BG | ||||
| 6 | 10703229 | 54.69 | 66.17 | |
| Rubber foot CS 50 EB | ||||
| 7 | 465163 | 3.60 | 4.36 | |
| Folding Leg Klappbein | ||||
| 8 | 10678248 | 81.80 | 98.98 | |
| Foldaway leg MFT/3 | ||||
| 8 | 494728 | 81.19 | 98.24 | |
| Adjusting wheel CS 70 EB | ||||
| 9 | 448178 | 2.74 | 3.32 | |
| FOOT CS 50 EB | ||||
| 10 | 465883 | 13.07 | 15.81 | |
| Hex head cap sc DIN 933-M8x100-8.8 | ||||
| 11 | 464713 | 1.58 | 1.91 | |
| Square nut DIN 557-M8-05 | ||||
| 12 | 219098 | 1.51 | 1.83 | |
| Voet | ||||
| 13 | 10988299 | 28.80 | 34.85 | |
| Angle base MFT/3 left | ||||
| 13 | 472861 | 27.71 | 33.53 | |
| Ch. head screw DIN 912-M8x14-8.8 | ||||
| 14 | 228639 | 1.51 | 1.83 | |
| Serrated washer DIN 6797-A-6,4 | ||||
| 15 | 200765 | 1.51 | 1.83 | |
| Cylinder head screw M6 x 20 | ||||
| 16 | 228612 | 1.51 | 1.83 | |
| Rubber foot CS 50 EB | ||||
| 18 | 492255 | 18.15 | 21.96 | |
| HANDLE DOWN CS 50 EB | ||||
| 19 | 492148 | 4.75 | 5.75 | |
| Hexagon nut DIN 985-M8-04 | ||||
| 20 | 200735 | 1.51 | 1.83 | |
| Upper section o CS 70 EB | ||||
| 21 | 447534 | 1.94 | 2.35 | |
| Voet | ||||
| 22 | 10988297 | 28.80 | 34.85 | |
| Angle base MFT/3 right | ||||
| 22 | 472860 | 27.71 | 33.53 | |
| Folding Leg Klappbein | ||||
| 23 | 10678281 | 85.31 | 103.23 | |
| Foldaway leg MFT/3 | ||||
| 23 | 494727 | 84.70 | 102.49 | |
