Here you will find all available parts and drawings of the 'Festool 10723145 (MFKC700EU)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

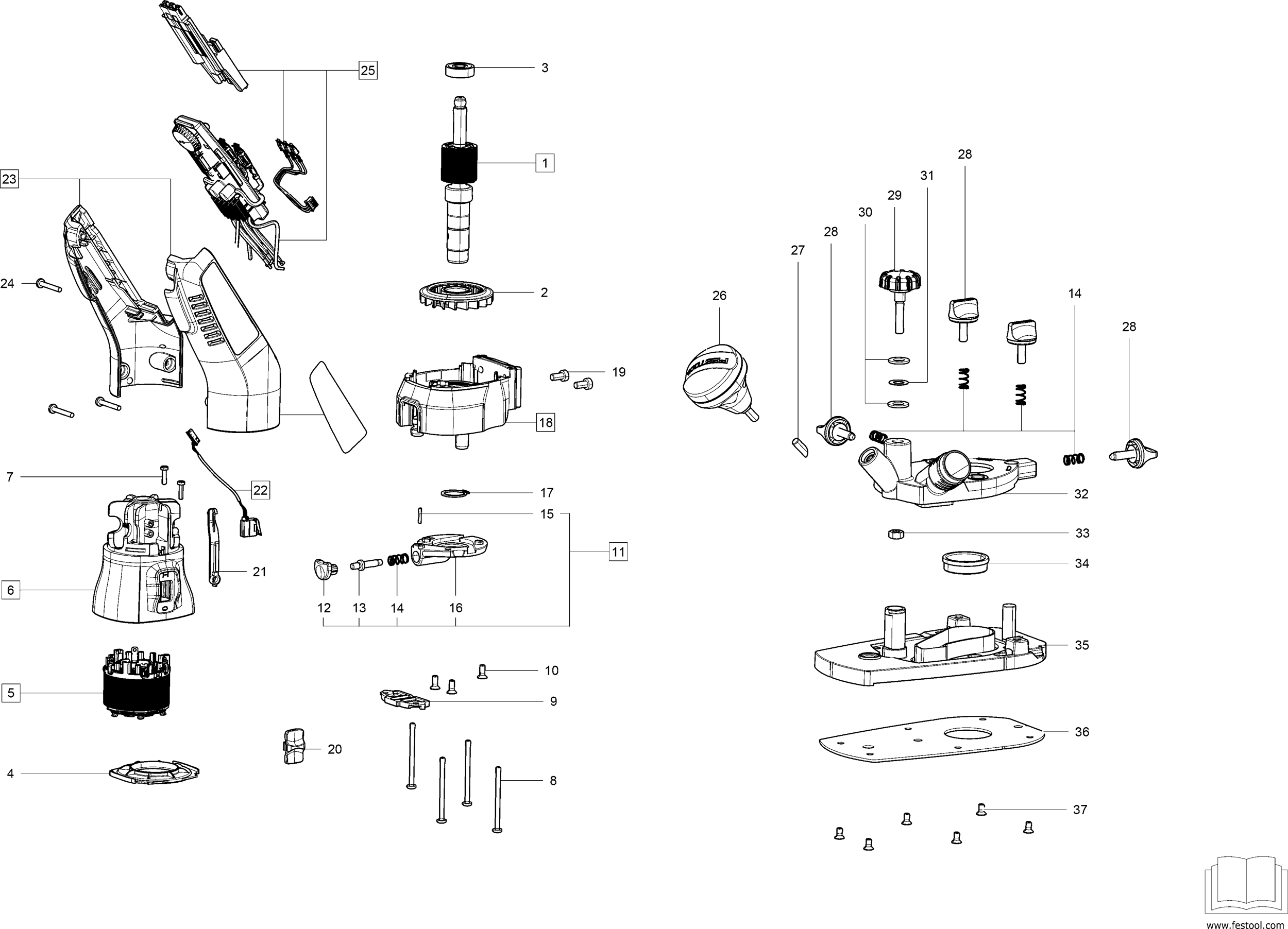

Technical drawing of model Festool 10723145 (MFKC700EU)
Spare parts list of model Festool 10723145 (MFKC700EU)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE MFKC 700 ET-BG | ||||
| 1 | 11089775 | 115.31 | 139.53 | |
| FAN MFKC 700 | ||||
| 2 | 10736233 | 10.94 | 13.24 | |
| Ball bearing 608 2Z LHT42 | ||||
| 3 | 401523 | 5.04 | 6.10 | |
| AIR GUIDE MFKC 700 | ||||
| 4 | 10703794 | 1.58 | 1.91 | |
| FIELD ASSEMBLY MFKC 700 ET-BG | ||||
| 5 | 11089777 | 48.47 | 58.65 | |
| MOTOR HOUSING OFKC 500 ET-BG | ||||
| 6 | 11088923 | 36.48 | 44.14 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 7 | 219069 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x50-KT15 | ||||
| 8 | 400005 | 1.51 | 1.83 | |
| Dust cover Ersatzteil | ||||
| 9 | 462656 | 1.51 | 1.83 | |
| Countersink M4x10-TAPTITE-T15 | ||||
| 10 | 228581 | 1.51 | 1.83 | |
| Cover OFK 700 EQ | ||||
| 11 | 494788 | 13.67 | 16.54 | |
| CAP OF 1000 EB | ||||
| 12 | 450206 | 1.51 | 1.83 | |
| Bolt KF 4 E | ||||
| 13 | 436305 | 10.01 | 12.11 | |
| Compr. spring DIN 2098-0,70x7,50x14,7 | ||||
| 14 | 444754 | 1.51 | 1.83 | |
| Dowel pin DIN 1481-2x12-ST | ||||
| 15 | 200747 | 1.51 | 1.83 | |
| Cover OFK 700 EQ | ||||
| 16 | 473550 | 7.70 | 9.32 | |
| Circlip DIN 471-17x1 | ||||
| 17 | 401191 | 1.51 | 1.83 | |
| FLANGE MFKC 700 ET-BG | ||||
| 18 | 11089781 | 87.48 | 105.85 | |
| Ch. head screw DIN 7984-M5x10 | ||||
| 19 | 207729 | 1.51 | 1.83 | |
| SLIDE SWITCH MFKC 700 | ||||
| 20 | 10719650 | 8.35 | 10.10 | |
| SWITCH FRAME MFKC 700 | ||||
| 21 | 10670978 | 1.37 | 1.66 | |
| SWITCH MFKC 700 ET-BG | ||||
| 22 | 11089782 | 36.48 | 44.14 | |
| HANDLE MFKC 700 EU ET-BG | ||||
| 23 | 11089784 | 39.62 | 47.94 | |
| Oval head screw PT-3,5x25-KT15 | ||||
| 24 | 219068 | 1.51 | 1.83 | |
| ELECTRONICS OFKC 500 MFKC 700 ET-BG | ||||
| 25 | 11088934 | 188.21 | 227.73 | |
| Handle MFK 700 EQ | ||||
| 26 | 494886 | 8.42 | 10.19 | |
| Thrust piece OFK 700 EQ | ||||
| 27 | 528994 | 3.38 | 4.09 | |
| Rotary knob MFK 700 EQ D 23 M6x20 bl | ||||
| 28 | 471744 | 8.71 | 10.54 | |
| Screw OFK 700 E | ||||
| 29 | 10019108 | 11.30 | 13.67 | |
| Disc DIN 125-A-8,4-140 HV | ||||
| 30 | 761517 | 1.51 | 1.83 | |
| Spring washer DIN 137-A-8 | ||||
| 31 | 761524 | 1.51 | 1.83 | |
| Mounting plate MFK 700 EQ ET-BG | ||||
| 32 | 495757 | 67.88 | 82.13 | |
| Hexagon nut DIN 934-M6-10 | ||||
| 33 | 228689 | 1.51 | 1.83 | |
| PARTITION MFK 700 EQ | ||||
| 34 | 471740 | 5.18 | 6.27 | |
| TABLE MFK 700 EQ ET-BG | ||||
| 35 | 495369 | 77.32 | 93.56 | |
| Crosshd. guide MFK 700 EQ | ||||
| 36 | 471743 | 29.65 | 35.88 | |
| Countersink M4x8-TAPTITE-KT15 | ||||
| 37 | 228737 | 1.51 | 1.83 | |
