Here you will find all available parts and drawings of the 'Festool 10811309 (MB40)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

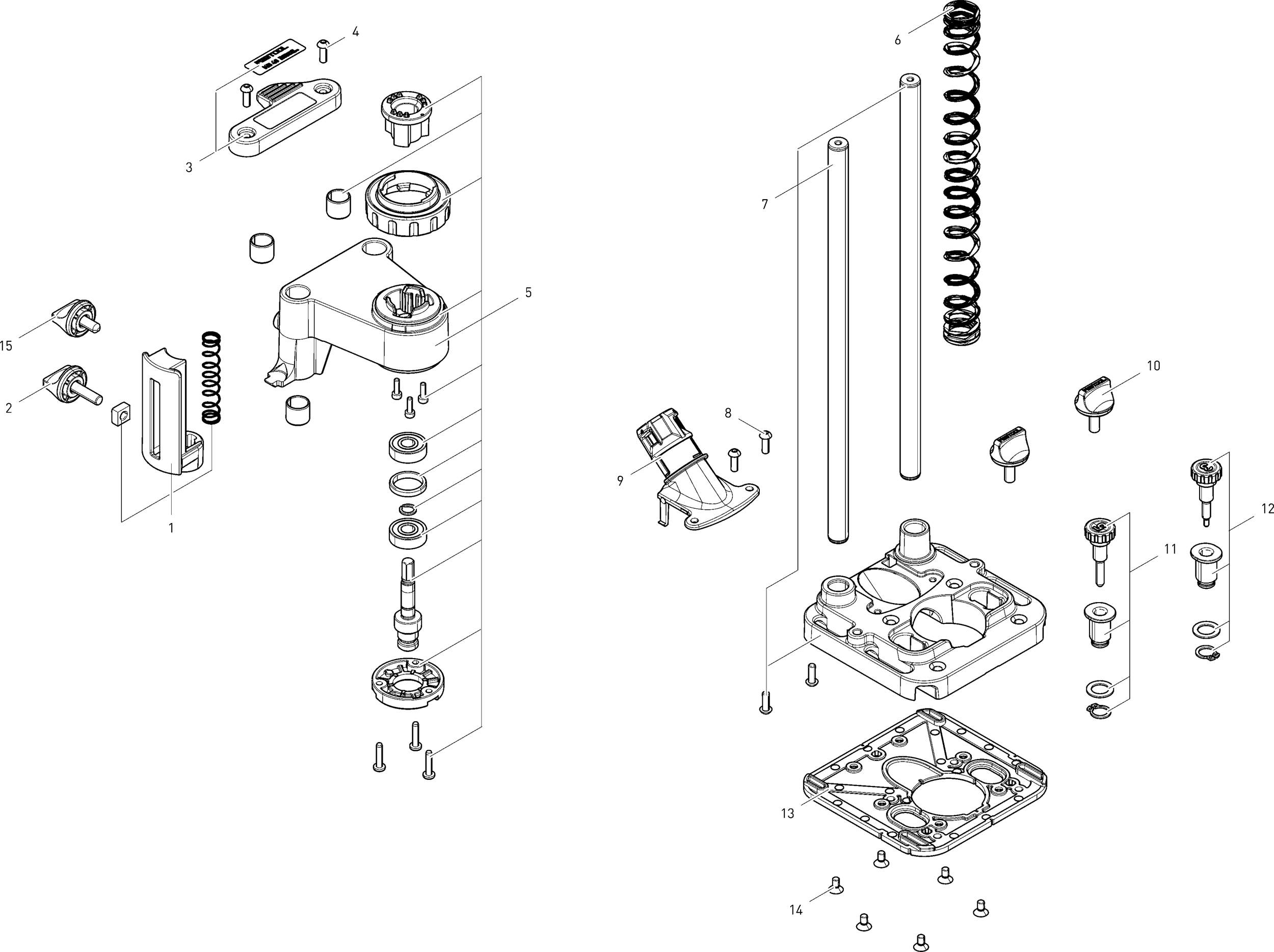

Technical drawing of model Festool 10811309 (MB40)
Spare parts list of model Festool 10811309 (MB40)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| DEPTH STOP MB 40 ET-BG | ||||
| 1 | 10850961 | 13.00 | 15.73 | |
| ROTARY KNOB D23 M6 X 20 ET-BG | ||||
| 2 | 10850959 | 11.88 | 14.37 | |
| STOP MB 40 ET-BG | ||||
| 3 | 10850970 | 9.00 | 10.89 | |
| PAN-HEAD SCREW M4X12 (4 PCS) ET-BG | ||||
| 4 | 10850971 | 2.02 | 2.44 | |
| CARRIAGE MB 400 ET-BG | ||||
| 5 | 10850886 | 56.63 | 68.52 | |
| COMPRESSION SPRING MB 40 ET-BG | ||||
| 6 | 10850969 | 6.84 | 8.28 | |
| BASE PLATE MB 40 ET-BG | ||||
| 7 | 10850962 | 145.93 | 176.58 | |
| PAN-HEAD SCREW M4X12 (4 PCS) ET-BG | ||||
| 8 | 10850971 | 2.02 | 2.44 | |
| DUST EXTRACTION PORT MB 40 ET-BG | ||||
| 9 | 10850966 | 7.63 | 9.23 | |
| ROTARY KNOB D23 M6 X 16 ET-BG | ||||
| 10 | 10850960 | 7.99 | 9.67 | |
| SPECIAL SCREW D5 ET-BG | ||||
| 11 | 10850964 | 20.69 | 25.03 | |
| SPECIAL SCREW D3 ET-BG | ||||
| 12 | 10850965 | 21.05 | 25.47 | |
| BUSHING MB 40 ET-BG | ||||
| 13 | 10850968 | 14.64 | 17.71 | |
| COUNTERSUNK SCREW M4X8 (6 PCS) ET-BG | ||||
| 14 | 10850967 | 2.02 | 2.44 | |
| ROTARY KNOB D23 M6 X 12 | ||||
| 15 | 10985631 | 10.51 | 12.72 | |
