Here you will find all available parts and drawings of the 'Festool 10044087 ( LHS2225EQI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

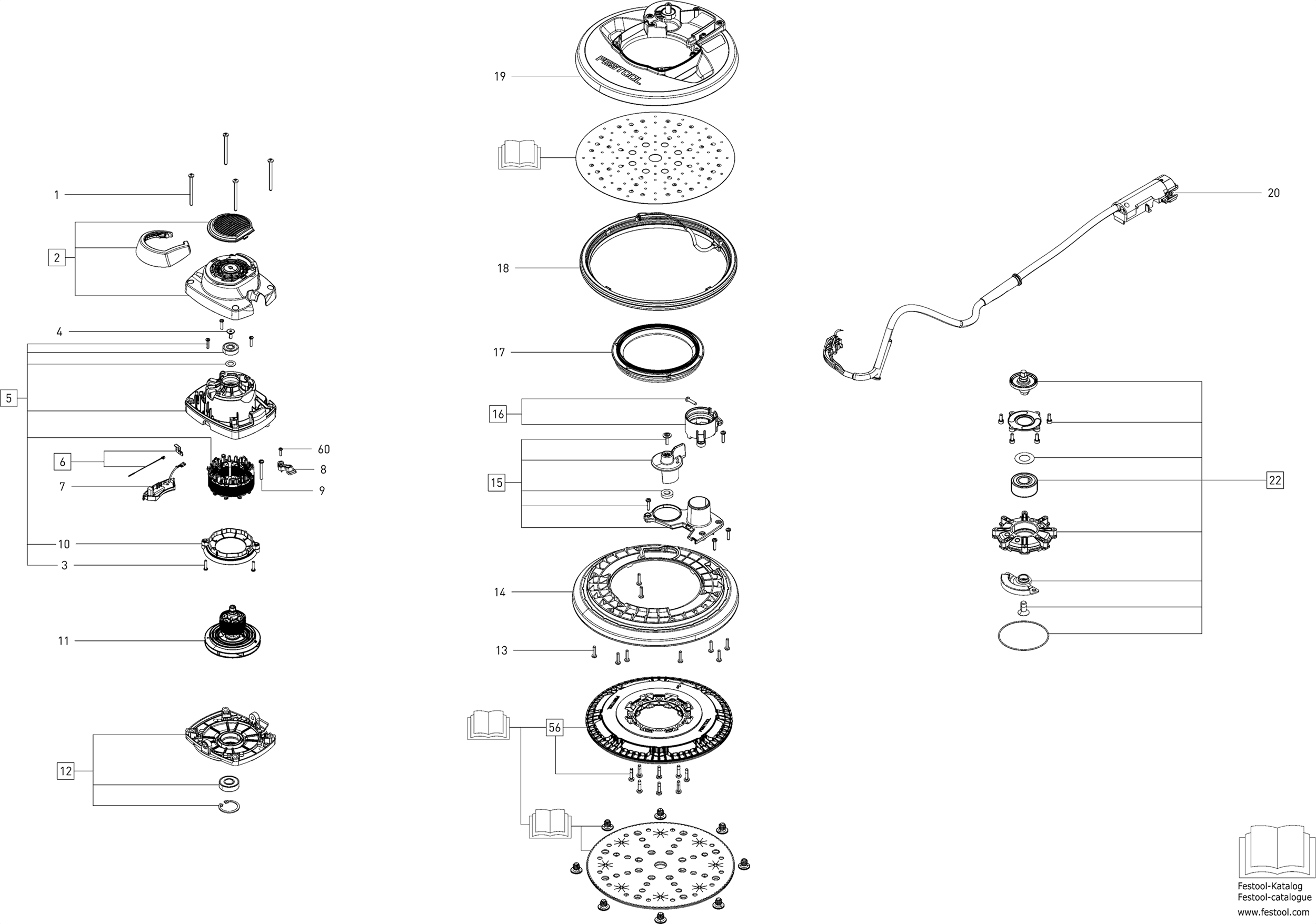

Technical drawing of model Festool 10044087 ( LHS2225EQI )

Spare parts list of model Festool 10044087 ( LHS2225EQI )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Oval head screw PT-4,0x50-KT15
1 10216748 1.51 1.83
Motor cover LHS 2 225 EQI ET-BG
2 205851 36.18 43.78
Oval head screw PT-3,0x14-KT10
3 400792 1.51 1.83
Screw M 4x12 T15
4 10006302 1.51 1.83
Motor frame LHS 2 225 EQI ET-BG
5 205847 122.94 148.76
NTC resistor LHS 2 225 EQI ET-BG
6 205848 26.50 32.06
Electronics LHS 2 225 EQI ET Head
7 10449722 36.54 44.21
Cable clamp LHS 2 225 EQI
8 10045279 11.75 14.22
Oval head screw PT-3,5x30-KT15
9 400524 1.51 1.83
Air guide washe LHS 2 225 EQI
10 10250326 11.09 13.42
Rotor LHS 2 225 EQI ET-BG
11 205845 73.69 89.16
Bearing cover LHS 2 225 EQI ET-BG
12 205844 75.26 91.06
Oval head screw PT-3,5x16-KT15
13 400584 1.51 1.83
Protector LHS 2 225 EQI ET
14 205854 25.89 31.33
In air controll LHS 2 225 EQI ET-BG
15 205856 28.07 33.96
Hose clamp LHS 2 225 EQI ET-BG
16 205855 8.64 10.45
Collar LHS 2 225 EQI ET
17 205853 37.87 45.82
Surf.cont.light LHS 2 225 EQI ET
18 205852 62.32 75.41
Dust-extr. Syst LHS 2 225 EQI ET
19 205858 31.82 38.50
Cable harness LHS 2 225 EQI Kopf ET
20 205849 41.75 50.52
Flange LHS 2 225 EQI ET-BG
22 10670904 99.70 120.64
half shell LHS 2 225 EQI ET-BG
26 205860 66.19 80.09
Rocker LHS 2 225 EQI ET-BG
27 205861 17.79 21.53
Threaded bolt LHS 2 225 EQI
28 10102161 13.92 16.84
Cable clamp LHS 2 225 EQI
29 10206214 2.16 2.61
Module LHS 2 225 EQI ET-BG
30 205881 96.32 116.55
Connecting kit LHS 2 225 EQI ET-BG
31 205890 73.69 89.16
Socket housing LHS 2 225 EQ und EQI ET
32 205887 39.45 47.73
Electronics LHS 2 225 EQI 230V ET-BG
33 205884 126.93 153.59
Illum. button LHS 2 225 EQI ET-BG
34 205883 20.69 25.03
Fan LHS 2 225 EQI ET
35 205882 48.28 58.42
Vent. grid LHS 2 225 EQI ET
36 205872 20.69 25.03
Catch spring LHS 2 225 EQI
37 10185352 11.16 13.50
Switch lever LHS 2 225 EQI
38 10185355 11.69 14.14
Bolt LHS 2 225 EQI
39 10159587 14.76 17.86
Suction hose LHS 2 225 EQI ET
40 205864 31.34 37.92
Extr. connector LHS 2 225 EQI ET
41 205868 26.38 31.92
Pipe LHS 2 225 EQI ET
42 205865 45.62 55.20
Bolt LHS 2 225 EQI
43 10041023 14.16 17.13
Terminal cap LHS 2 225 EQI ET-BG
44 205870 19.72 23.86
Alignment LHS 2 225 EQI ET-BG
45 10448420 37.27 45.10
Chuck lever LHS 2 225 EQI ET-BG
46 10449023 23.35 28.25
Pipe LHS 2 225 EQI ET Extension
47 10449294 50.46 61.06
Cable harness LHS 2 225 EQI ET
48 205901 47.31 57.25
Hook LHS 2 225 EQI ET
49 10449300 39.45 47.73
Interlock LHS 2 225 EQI ET-BG
50 205866 57.84 69.99
Handle case LHS 2 225 EQI ET-BG
51 205895 65.82 79.64
Type plate LHS 2 225 EQI
52 720882 2.59 3.13
Contact spring LHS 2 225 EQI
53 10422702 4.75 5.75
suction duct LHS 2 225 EQI ET-BG
54 205892 38.84 47.00
Hose clamp LHS 2 225 EQI ET
55 205894 17.79 21.53
Supporting Shelf LHS 2 225 EQI ET-BG
56 10449362 56.99 68.96
Protection cap LHS 2 225 EQI ET
57 10449832 25.53 30.89
Contact CT
58 454328 1.51 1.83
Cable harness LHS 2 225 EQI ET-BG
59 10478851 28.92 34.99
Oval head screw PT-3,5x16-KT15
60 400584 1.51 1.83
Oval head screw PT-3,5x16-KT15
61 400584 1.51 1.83
Oval head screw PT-3,0x14-KT10
62 400792 1.51 1.83
Bolt LHS 2 225 EQI
63 10041023 14.16 17.13
