Here you will find all available parts and drawings of the 'Festool 202885 ( LEX3150/7 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

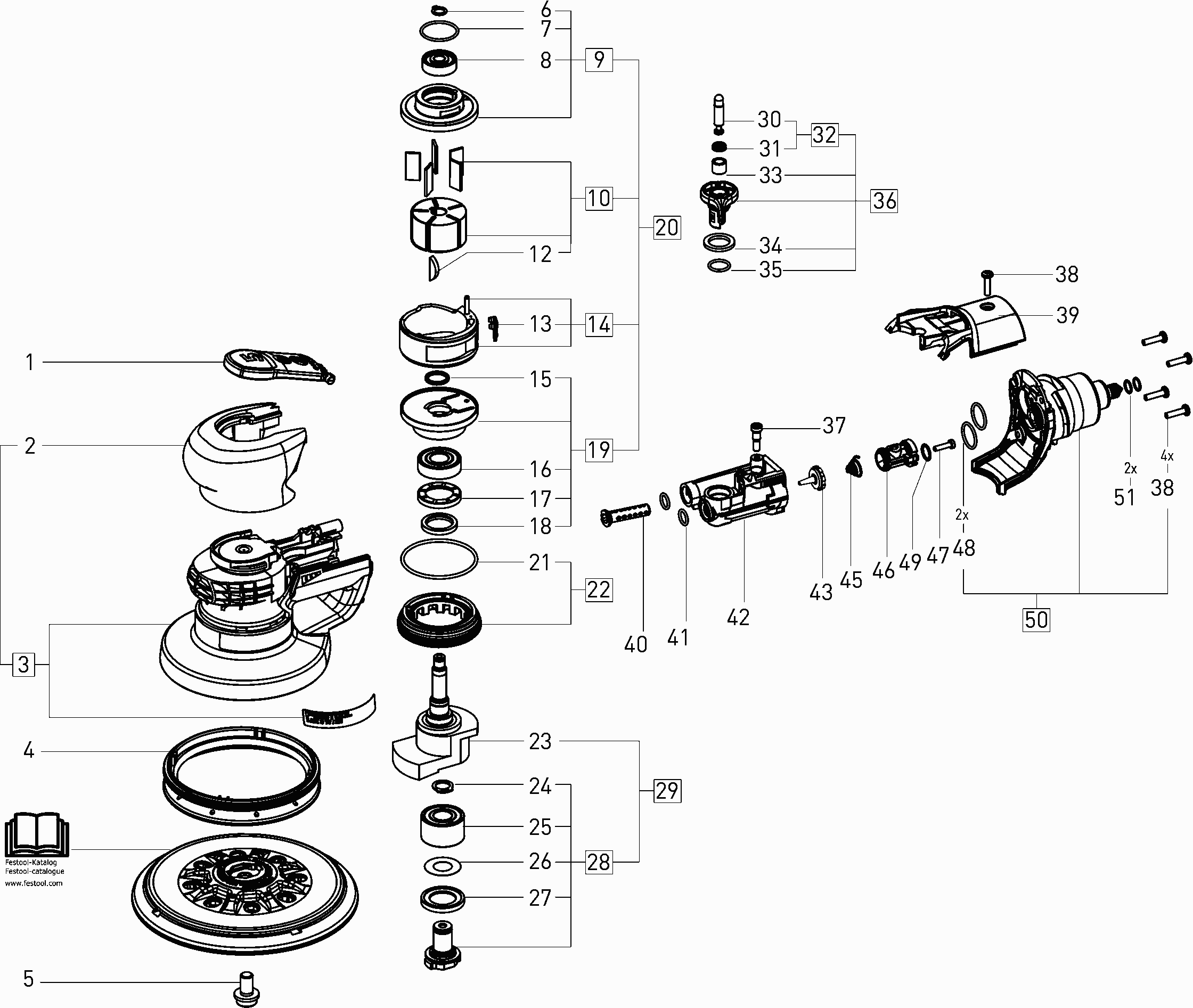

Technical drawing of model Festool 202885 ( LEX3150/7 )
Spare parts list of model Festool 202885 ( LEX3150/7 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Depresser LEX 3 150/7 | ||||
| 1 | 707358 | 4.56 | 5.52 | |
| Cap LEX 3 77 | ||||
| 2 | 701692 | 7.52 | 9.10 | |
| Casing box LEX 3 150 | ||||
| 3 | 498881 | 61.47 | 74.38 | |
| Collar LEX 3 150 | ||||
| 4 | 700356 | 8.90 | 10.77 | |
| Ch. head screw ZUBEH R | ||||
| 5 | 401165 | 1.39 | 1.68 | |
| Circlip DIN 471-7x0,8 | ||||
| 6 | 700979 | 1.39 | 1.68 | |
| O-ring 22x1,5-EPDM-70SHORE | ||||
| 7 | 479998 | 1.39 | 1.68 | |
| BALL BEARING 627 Z/D MC5E NSK | ||||
| 8 | 228746 | 7.52 | 9.10 | |
| Bearing cover LEX 3 77 | ||||
| 9 | 498836 | 65.82 | 79.64 | |
| Rotor LEX 3 | ||||
| 10 | 201274 | 72.24 | 87.41 | |
| Spring LEX 3 | ||||
| 12 | 10004365 | 1.39 | 1.68 | |
| Seal LEX 3 | ||||
| 13 | 10000833 | 4.94 | 5.98 | |
| Sleeve LEX 3 150/5/9 | ||||
| 14 | 498524 | 74.17 | 89.75 | |
| Conical nipple LEX 3 | ||||
| 15 | 478363 | 2.83 | 3.42 | |
| Ball bearing 6001T1XDDUC4E J MA7S | ||||
| 16 | 478938 | 8.05 | 9.74 | |
| adapter ring LEX 3 | ||||
| 17 | 700980 | 6.26 | 7.57 | |
| Rotary shaft se LEX 3 | ||||
| 18 | 478960 | 3.36 | 4.07 | |
| Bearing cover LEX 3 77 | ||||
| 19 | 498837 | 77.32 | 93.56 | |
| Motor LEX 3 | ||||
| 20 | 201273 | 209.57 | 253.58 | |
| O-ring 46x2-NBR-70SHORE | ||||
| 21 | 400905 | 1.39 | 1.68 | |
| Retaining nut LEX 3 77 | ||||
| 22 | 498838 | 34.36 | 41.58 | |
| Cam LEX 3 150/7 | ||||
| 23 | 203452 | 117.85 | 142.60 | |
| Circlip DIN 471-12x1 | ||||
| 24 | 761559 | 1.39 | 1.68 | |
| Ball bearing 5001 RS/RU MG2 | ||||
| 25 | 401136 | 47.19 | 57.10 | |
| Shim ring LEX 3 | ||||
| 26 | 10003677 | 1.39 | 1.68 | |
| Adapter ring LEX 3 | ||||
| 27 | 10003671 | 2.77 | 3.35 | |
| Bearing bolt LEX 3 150 | ||||
| 28 | 495619 | 57.72 | 69.84 | |
| Cam LEX 3 150/7 | ||||
| 29 | 495621 | 168.80 | 204.25 | |
| Plunger LEX 3 | ||||
| 30 | 701696 | 4.03 | 4.88 | |
| Shaft seal ring | ||||
| 31 | 10003794 | 5.81 | 7.03 | |
| Plunger LEX 3 77 | ||||
| 32 | 498841 | 24.68 | 29.86 | |
| Bush LEX 3 | ||||
| 33 | 10005659 | 2.71 | 3.28 | |
| Felt washer D 20/14 2mm | ||||
| 34 | 10001172 | 1.39 | 1.68 | |
| O-ring 11,5x1,5-NBR-70SHORE | ||||
| 35 | 200929 | 1.39 | 1.68 | |
| Valve LEX 3 77 | ||||
| 36 | 498842 | 42.11 | 50.95 | |
| Screw M5x15,5 TX Plus 20 | ||||
| 37 | 479759 | 2.30 | 2.78 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 38 | 400468 | 1.39 | 1.68 | |
| Cover LEX 3 150 | ||||
| 39 | 701689 | 2.24 | 2.71 | |
| Damper LEX 3 | ||||
| 40 | 701706 | 1.39 | 1.68 | |
| O-ring 8x1,5-NBR | ||||
| 41 | 701573 | 1.39 | 1.68 | |
| Holder LEX 3 | ||||
| 42 | 701707 | 4.15 | 5.02 | |
| Valve LEX 3 | ||||
| 43 | 10005674 | 6.07 | 7.34 | |
| Spring LEX 3 | ||||
| 45 | 701704 | 1.39 | 1.68 | |
| Restrictor LEX 3 150 | ||||
| 46 | 701698 | 1.51 | 1.83 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 47 | 219069 | 1.39 | 1.68 | |
| O-ring 15x1,5-NBR-75SHORE | ||||
| 48 | 200934 | 1.39 | 1.68 | |
| O-ring 7x1-FKM | ||||
| 49 | 706535 | 1.39 | 1.68 | |
| Connecting piec LEX 3 125/150 | ||||
| 50 | 498882 | 43.68 | 52.85 | |
| O-ring 6x1-NBR-LABS-FREI | ||||
| 51 | 704784 | 1.39 | 1.68 | |
