Here you will find all available parts and drawings of the 'Festool 491525 (LEX2185/7)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

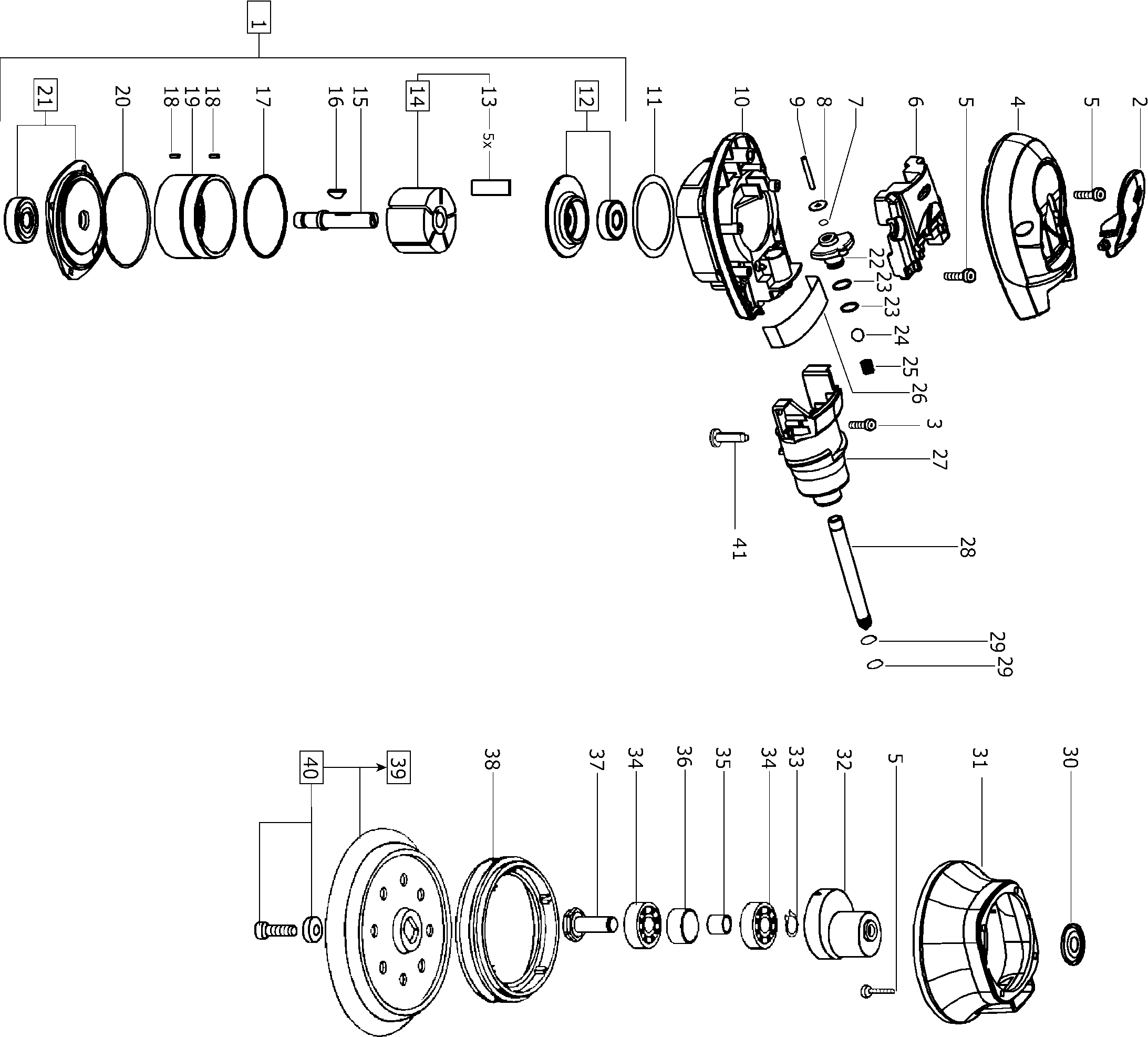

Technical drawing of model Festool 491525 (LEX2185/7)
Spare parts list of model Festool 491525 (LEX2185/7)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MOTOR LEX 2 185/7 ET-BG | ||||
| 1 | 491592 | 360.82 | 436.59 | |
| LEVER LEX 2/7 | ||||
| 2 | 462875 | 2.52 | 3.05 | |
| Oval head screw PT-4,0x16-KT15 | ||||
| 3 | 228713 | 5.94 | 7.19 | |
| Cap LEX | ||||
| 4 | 491416 | 10.58 | 12.80 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 5 | 228567 | 1.51 | 1.83 | |
| WEIGHT LEX | ||||
| 6 | 462876 | 14.16 | 17.13 | |
| O-ring 3x1-NBR-75SHORE | ||||
| 7 | 200904 | 1.51 | 1.83 | |
| WASHER LRM-A | ||||
| 8 | 720602 | 2.38 | 2.88 | |
| PIN LEX 2 | ||||
| 9 | 462877 | 1.51 | 1.83 | |
| Casing box LEX 2 | ||||
| 10 | 491566 | 54.93 | 66.47 | |
| SEAL LRM-A | ||||
| 11 | 720246 | 2.74 | 3.32 | |
| BEARING CARRIER LRM-A VOLLST. | ||||
| 12 | 630103 | 54.81 | 66.32 | |
| ROTOR BLADE LEX 2 185/7 ET-BG 5X | ||||
| 13 | 491615 | 24.20 | 29.28 | |
| ROTOR LEX 2 185/7 ET-BG | ||||
| 14 | 491593 | 49.49 | 59.88 | |
| Rotor shaft LET-GA | ||||
| 15 | 720089 | 27.59 | 33.38 | |
| KEY 3x5 | ||||
| 16 | 466338 | 1.51 | 1.83 | |
| O-ring 51,5x1,5-FKM-LABS-FREI | ||||
| 17 | 704785 | 7.63 | 9.23 | |
| Dowel pin DIN 7346-2x6-ST | ||||
| 18 | 773627 | 1.51 | 1.83 | |
| Sleeve bushing LEX 2 honed | ||||
| 19 | 10424451 | 65.58 | 79.35 | |
| O-ring 60x1,5-NBR-LABS-FREI | ||||
| 20 | 704788 | 3.74 | 4.53 | |
| HOUSING COVER LRM-A | ||||
| 21 | 630109 | 69.45 | 84.03 | |
| Valve piston LEX | ||||
| 22 | 449556 | 2.09 | 2.53 | |
| O-ring 9x1-FKM-LABS-FREI | ||||
| 23 | 704786 | 4.32 | 5.23 | |
| BALL Drm 8 DIN 5401 | ||||
| 24 | 410290 | 5.04 | 6.10 | |
| PRESSURE SPRING LEX 2 | ||||
| 25 | 463317 | 1.51 | 1.83 | |
| Seal LET 2 | ||||
| 26 | 720617 | 2.66 | 3.22 | |
| Conn. piece LEX 2 | ||||
| 27 | 463325 | 4.39 | 5.31 | |
| Compr. air tube LEX 125-3M | ||||
| 28 | 448805 | 11.55 | 13.98 | |
| O-ring 6x1-NBR-LABS-FREI | ||||
| 29 | 704784 | 1.51 | 1.83 | |
| Nilos ring | ||||
| 30 | 782082 | 8.21 | 9.93 | |
| RUBBER DUST COV LEX 2 | ||||
| 31 | 463326 | 3.82 | 4.62 | |
| Cam WET 2 E | ||||
| 32 | 458945 | 73.81 | 89.31 | |
| Circlip DIN 471-12x1 | ||||
| 33 | 200619 | 1.51 | 1.83 | |
| Ball bearing 6001 RS/Z DIN 625 C3 | ||||
| 34 | 400048 | 8.21 | 9.93 | |
| Collet LEX 2 | ||||
| 35 | 458944 | 19.12 | 23.14 | |
| Collet LEX 2 | ||||
| 36 | 458943 | 18.27 | 22.11 | |
| SPINDLE LEX 185 | ||||
| 37 | 458942 | 48.40 | 58.56 | |
| Collar LET 150 | ||||
| 38 | 703070 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 39 | 490514 | |||
| Ch. head screw ZUBEH R | ||||
| 40 | 401165 | 1.51 | 1.83 | |
| Cover plug LEX 125-3M | ||||
| 41 | 450920 | 1.51 | 1.83 | |
