Here you will find all available parts and drawings of the 'Festool 10703274 ( KSC60REB-Basic )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

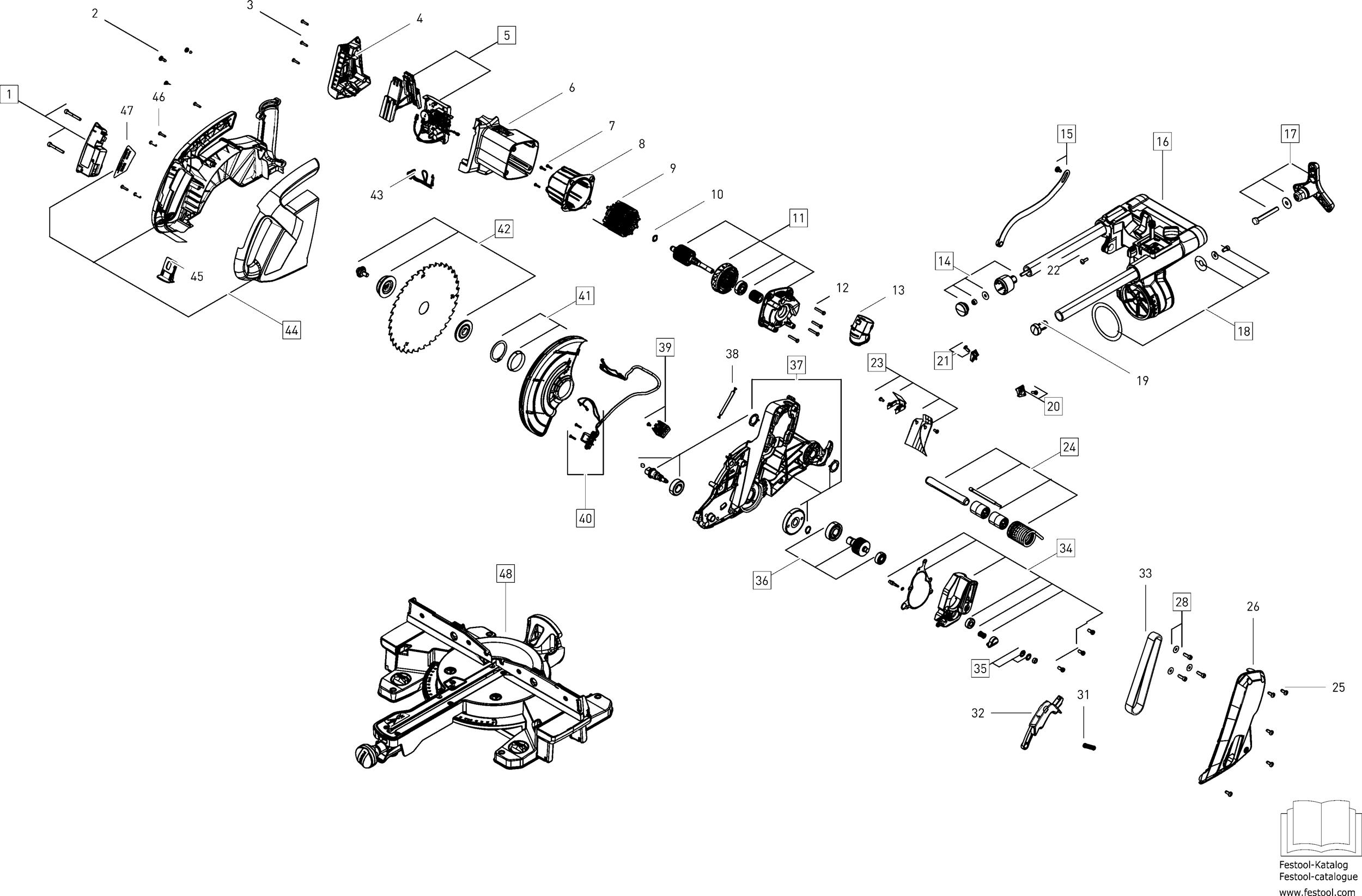

Technical drawing of model Festool 10703274 ( KSC60REB-Basic )

Spare parts list of model Festool 10703274 ( KSC60REB-Basic )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Puntlicht KSC 60 ET-BG
1 10541982 79.74 96.49
Oval head screw M5x12-TAPTITE-T25
2 10024093 1.51 1.83
Oval head screw PT-3,5x16-KT15
3 400584 1.51 1.83
Motor Cover KSC60
4 10521491 13.07 15.81
Electronic 230V
5 11101933 135.88 164.41
Motorhuis KSC60
6 10521502 19.48 23.57
Oval head screw PT-3,0x12-KT10
7 219069 1.51 1.83
Motor Holder KSC 60
8 10286689 9.58 11.59
Field package SYMC 70 ET-BG
9 10854114 87.85 106.30
Locking washer 10.5 x 15.8 x 0.3 mm
10 10383749 1.44 1.74
Anker KSC 60 ET-BG
11 10541983 128.38 155.34
Oval head screw PT-4,0x25-KT15
12 228580 1.51 1.83
Angle piece KS 60
13 10021956 5.98 7.24
End stop KS 60 E
14 200264 27.10 32.79
Lever KS 60 E
15 200262 37.51 45.39
Tilting Segment KSC 60
16 10364383 208.00 251.68
Star handle KS 60 E
17 200269 31.34 37.92
Glide plate KS 60 E
18 200266 31.58 38.21
Plug KS 60 E
19 10009921 2.38 2.88
Indicator KS 60 E
20 200270 25.53 30.89
Indicator KS 60 E
21 200272 25.53 30.89
Oval head screw M5x14-TAPTITE-T15
22 228686 1.51 1.83
Clean the KSC 60 ET-BG
23 10541984 25.65 31.04
Bearing sleeve KS 60 E
24 200263 44.41 53.74
Oval head screw M5x12-TAPTITE-T25
25 10024093 1.51 1.83
Belt cover KS 60 E
26 10010405 10.30 12.46
Screw KS 60 E
28 200252 24.20 29.28
Compr. spring DIN 2098-1,00x8,00x40,5
31 10011792 2.30 2.78
Button SYMC 70
32 10574937 5.18 6.27
belt KS 60 E 8PJ 406
33 10016305 34.97 42.31
Bearing flange KS 60 E
34 200250 72.60 87.85
Saucer spring KS 60 E
35 200251 23.96 28.99
Gear shaft KS 60 E
36 200246 96.92 117.27
Gear box KS 60 E
37 200290 163.35 197.65
Draw spring KS 60
38 10017764 1.73 2.09
Switch KS 60 E
39 200353 41.38 50.07
Wire harness KSC 60 ET-BG
40 10541985 43.56 52.71
Prot. cover KS 60 E
41 200244 34.49 41.73
Flange KS 60
42 200243 69.33 83.89
Thread with contact plate KSC60
43 10368883 4.10 4.96
Housing set KSC 60 ET-BG
44 10804387 146.53 177.30
inspec. window KS 60 E
45 10016301 9.29 11.24
Oval head screw PT-3,5x16-KT15
46 400584 1.51 1.83
Type plate KSC 60
47 10350794 2.66 3.22
Base Unit KS 60 Shipping Assembly
48 10723819 272.01 329.13
Slot unit KS 60
49 10006962 4.25 5.14
Rotary knob KS 60 E
50 200336 12.28 14.86
Locking cap KS 60
51 10014892 7.42 8.98
Buffer
52 10010559 2.66 3.22
Threaded rod KS 60 E
53 200276 18.15 21.96
Cover KSC 60 ET-BG
54 10566074 20.09 24.31
Pin key AT 55 E SW 6
55 439274 4.18 5.06
Cover KS 60 E
56 200326 12.71 15.38
Bolt guide KS 60 E
57 200278 33.28 40.27
Scale KS 60 E
58 200350 12.87 15.57
Scale KS 60 E
59 200349 13.13 15.89
Lid KSC 60 ET-BG
60 10566072 12.34 14.93
Cart KS 60 E
61 200275 126.69 153.29
Interlock KS 60 E
62 200274 18.39 22.25
Knob lever KS 60 E
63 200306 24.81 30.02
Table top inser KS 60 E
64 200304 21.42 25.92
Oval head screw DIN 7985-M4x10-8.8-PR30+
65 228733 1.51 1.83
Bearing sleeve KS 60 E
66 200305 12.87 15.57
Indicator KS 60 E
67 200328 11.02 13.33
Clamping plate KS 60 E
68 200329 11.22 13.58
Stop KS 60 E
69 200307 20.81 25.18
Rotary knob KS 60 E
70 200330 11.95 14.46
Rubber foot KS 60 E
71 200331 13.07 15.81
Extension table KS 60 E
72 200333 46.71 56.52
Clamp KS 60
73 10017636 11.88 14.37
Handle KS 60 E
74 200332 11.02 13.33
Rubber foot KS 60 E
75 200331 13.07 15.81
Clamp KS 60
76 10017636 11.88 14.37
Handle KS 60 E
77 200337 9.29 11.24
Rubber foot KS 60 E
78 200331 13.07 15.81
Extension table KS 60 E
79 200333 46.71 56.52
Rotary knob KS 60 E
80 200330 11.95 14.46
support foot KS 60 E
81 200308 11.29 13.66
Limit stop KS 60
82 200292 62.32 75.41
Oval head screw ISO 7380-1-M8x16-10.9
83 10015245 3.02 3.65
Limit stop KS 60
84 200291 70.06 84.77
Limit stop KS 60
85 200293 60.86 73.64
