Here you will find all available parts and drawings of the 'Festool 205714 (KSC60EB)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

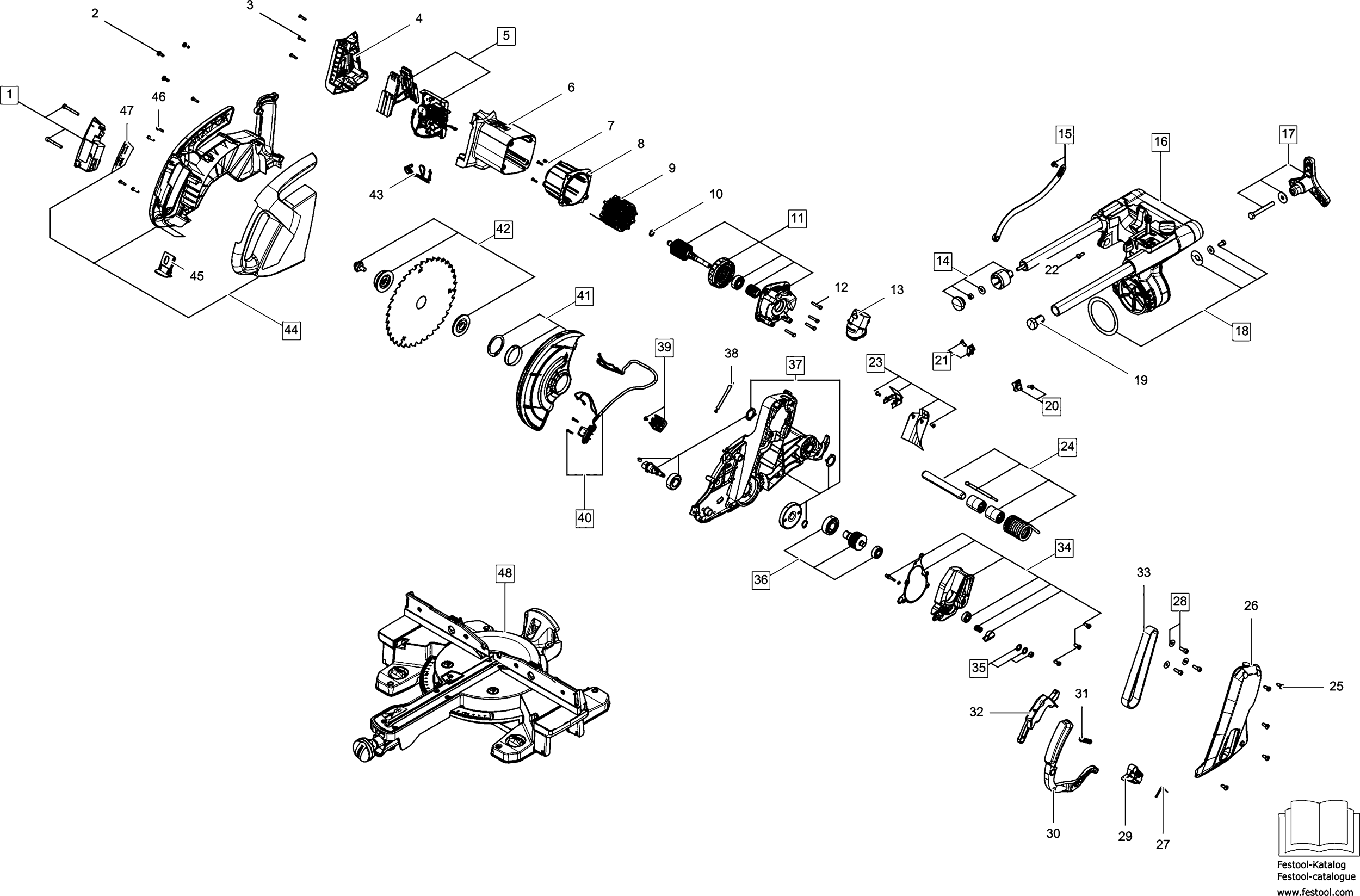

Technical drawing of model Festool 205714 (KSC60EB)
Spare parts list of model Festool 205714 (KSC60EB)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Puntlicht KSC 60 ET-BG | ||||
| 1 | 10541982 | 79.74 | 96.49 | |
| Oval head screw M5x12-TAPTITE-T25 | ||||
| 2 | 10024093 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 3 | 400584 | 1.51 | 1.83 | |
| Motor Cover KSC60 | ||||
| 4 | 10521491 | 13.07 | 15.81 | |
| Electronics 230V | ||||
| 5 | 11101933 | 135.88 | 164.41 | |
| Motorhuis KSC60 | ||||
| 6 | 10521502 | 19.48 | 23.57 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 7 | 219069 | 1.51 | 1.83 | |
| Motor Holder KSC 60 | ||||
| 8 | 10286689 | 9.58 | 11.59 | |
| Field package SYMC 70 ET-BG | ||||
| 9 | 10854114 | 87.85 | 106.30 | |
| Locking washer 10.5 x 15.8 x 0.3 mm | ||||
| 10 | 10383749 | 1.44 | 1.74 | |
| Anker KSC 60 ET-BG | ||||
| 11 | 10541983 | 128.38 | 155.34 | |
| Oval head screw PT-4,0x25-KT15 | ||||
| 12 | 228580 | 1.51 | 1.83 | |
| Angle piece KS 60 | ||||
| 13 | 10021956 | 5.98 | 7.24 | |
| End stop KS 60 E | ||||
| 14 | 200264 | 27.10 | 32.79 | |
| Lever KS 60 E | ||||
| 15 | 200262 | 37.51 | 45.39 | |
| Tilting Segment KSC 60 | ||||
| 16 | 10364383 | 208.00 | 251.68 | |
| Star handle KS 60 E | ||||
| 17 | 200269 | 31.34 | 37.92 | |
| Glide plate KS 60 E | ||||
| 18 | 200266 | 31.58 | 38.21 | |
| Plug KS 60 E | ||||
| 19 | 10009921 | 2.38 | 2.88 | |
| Indicator KS 60 E | ||||
| 20 | 200270 | 25.53 | 30.89 | |
| Indicator KS 60 E | ||||
| 21 | 200272 | 25.53 | 30.89 | |
| Oval head screw M5x14-TAPTITE-T15 | ||||
| 22 | 228686 | 1.51 | 1.83 | |
| Clean the KSC 60 ET-BG | ||||
| 23 | 10541984 | 25.65 | 31.04 | |
| Bearing sleeve KS 60 E | ||||
| 24 | 200263 | 44.41 | 53.74 | |
| Oval head screw M5x12-TAPTITE-T25 | ||||
| 25 | 10024093 | 1.51 | 1.83 | |
| Belt cover KS 60 E | ||||
| 26 | 10010405 | 10.30 | 12.46 | |
| Plate spring KS 60 | ||||
| 27 | 10028084 | 1.80 | 2.18 | |
| Screw KS 60 E | ||||
| 28 | 200252 | 24.20 | 29.28 | |
| Catch KS 60 E | ||||
| 29 | 10013088 | 2.30 | 2.78 | |
| Interlock KS 60 E | ||||
| 30 | 10010810 | 6.91 | 8.36 | |
| Compr. spring DIN 2098-1,00x8,00x40,5 | ||||
| 31 | 10011792 | 2.30 | 2.78 | |
| PRESS BUTTON KSC 60 E | ||||
| 32 | 10495280 | 5.47 | 6.62 | |
| belt KS 60 E 8PJ 406 | ||||
| 33 | 10016305 | 34.97 | 42.31 | |
| Bearing flange KS 60 E | ||||
| 34 | 200250 | 72.60 | 87.85 | |
| Saucer spring KS 60 E | ||||
| 35 | 200251 | 23.96 | 28.99 | |
| Gear shaft KS 60 E | ||||
| 36 | 200246 | 96.92 | 117.27 | |
| Gear box KS 60 E | ||||
| 37 | 200290 | 163.35 | 197.65 | |
| Draw spring KS 60 | ||||
| 38 | 10017764 | 1.73 | 2.09 | |
| Switch KS 60 E | ||||
| 39 | 200353 | 41.38 | 50.07 | |
| Wire harness KSC 60 ET-BG | ||||
| 40 | 10541985 | 43.56 | 52.71 | |
| Prot. cover KS 60 E | ||||
| 41 | 200244 | 34.49 | 41.73 | |
| Flange KS 60 | ||||
| 42 | 200243 | 69.33 | 83.89 | |
| Thread with contact plate KSC60 | ||||
| 43 | 10368883 | 4.10 | 4.96 | |
| Housing set KSC 60 ET-BG | ||||
| 44 | 10570437 | 154.15 | 186.52 | |
| inspec. window KS 60 E | ||||
| 45 | 10016301 | 9.29 | 11.24 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 46 | 400584 | 1.51 | 1.83 | |
| Type plate KSC 60 | ||||
| 47 | 10350794 | 2.66 | 3.22 | |
| Base Unit KS 60 Shipping Assembly | ||||
| 48 | 10723819 | 272.01 | 329.13 | |
| Slot unit KS 60 | ||||
| 49 | 10006962 | 4.25 | 5.14 | |
| Rotary knob KS 60 E | ||||
| 50 | 200336 | 12.28 | 14.86 | |
| Locking cap KS 60 | ||||
| 51 | 10014892 | 7.42 | 8.98 | |
| Buffer | ||||
| 52 | 10010559 | 2.66 | 3.22 | |
| Threaded rod KS 60 E | ||||
| 53 | 200276 | 18.15 | 21.96 | |
| Cover KSC 60 ET-BG | ||||
| 54 | 10566074 | 20.09 | 24.31 | |
| Pin key AT 55 E SW 6 | ||||
| 55 | 439274 | 4.18 | 5.06 | |
| Cover KS 60 E | ||||
| 56 | 200326 | 12.71 | 15.38 | |
| Bolt guide KS 60 E | ||||
| 57 | 200278 | 33.28 | 40.27 | |
| Scale KS 60 E | ||||
| 58 | 200350 | 12.87 | 15.57 | |
| Scale KS 60 E | ||||
| 59 | 200349 | 13.13 | 15.89 | |
| Lid KSC 60 ET-BG | ||||
| 60 | 10566072 | 12.34 | 14.93 | |
| Cart KS 60 E | ||||
| 61 | 200275 | 126.69 | 153.29 | |
| Interlock KS 60 E | ||||
| 62 | 200274 | 18.39 | 22.25 | |
| Knob lever KS 60 E | ||||
| 63 | 200306 | 24.81 | 30.02 | |
| Table top inser KS 60 E | ||||
| 64 | 200304 | 21.42 | 25.92 | |
| Oval head screw DIN 7985-M4x10-8.8-PR30+ | ||||
| 65 | 228733 | 1.51 | 1.83 | |
| Bearing sleeve KS 60 E | ||||
| 66 | 200305 | 12.87 | 15.57 | |
| Indicator KS 60 E | ||||
| 67 | 200328 | 11.02 | 13.33 | |
| Clamping plate KS 60 E | ||||
| 68 | 200329 | 11.22 | 13.58 | |
| Stop KS 60 E | ||||
| 69 | 200307 | 20.81 | 25.18 | |
| Rotary knob KS 60 E | ||||
| 70 | 200330 | 11.95 | 14.46 | |
| Rubber foot KS 60 E | ||||
| 71 | 200331 | 13.07 | 15.81 | |
| Extension table KS 60 E | ||||
| 72 | 200333 | 46.71 | 56.52 | |
| Clamp KS 60 | ||||
| 73 | 10017636 | 11.88 | 14.37 | |
| Handle KS 60 E | ||||
| 74 | 200332 | 11.02 | 13.33 | |
| Rubber foot KS 60 E | ||||
| 75 | 200331 | 13.07 | 15.81 | |
| Clamp KS 60 | ||||
| 76 | 10017636 | 11.88 | 14.37 | |
| Handle KS 60 E | ||||
| 77 | 200337 | 9.29 | 11.24 | |
| Rubber foot KS 60 E | ||||
| 78 | 200331 | 13.07 | 15.81 | |
| Extension table KS 60 E | ||||
| 79 | 200333 | 46.71 | 56.52 | |
| Rotary knob KS 60 E | ||||
| 80 | 200330 | 11.95 | 14.46 | |
| support foot KS 60 E | ||||
| 81 | 200308 | 11.29 | 13.66 | |
| Limit stop KS 60 | ||||
| 82 | 200292 | 62.32 | 75.41 | |
| Oval head screw ISO 7380-1-M8x16-10.9 | ||||
| 83 | 10015245 | 3.02 | 3.65 | |
| Limit stop KS 60 | ||||
| 84 | 200291 | 70.06 | 84.77 | |
| Limit stop KS 60 | ||||
| 85 | 200293 | 60.86 | 73.64 | |
