Here you will find all available parts and drawings of the 'Festool 10884174 (KS-PSC500)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

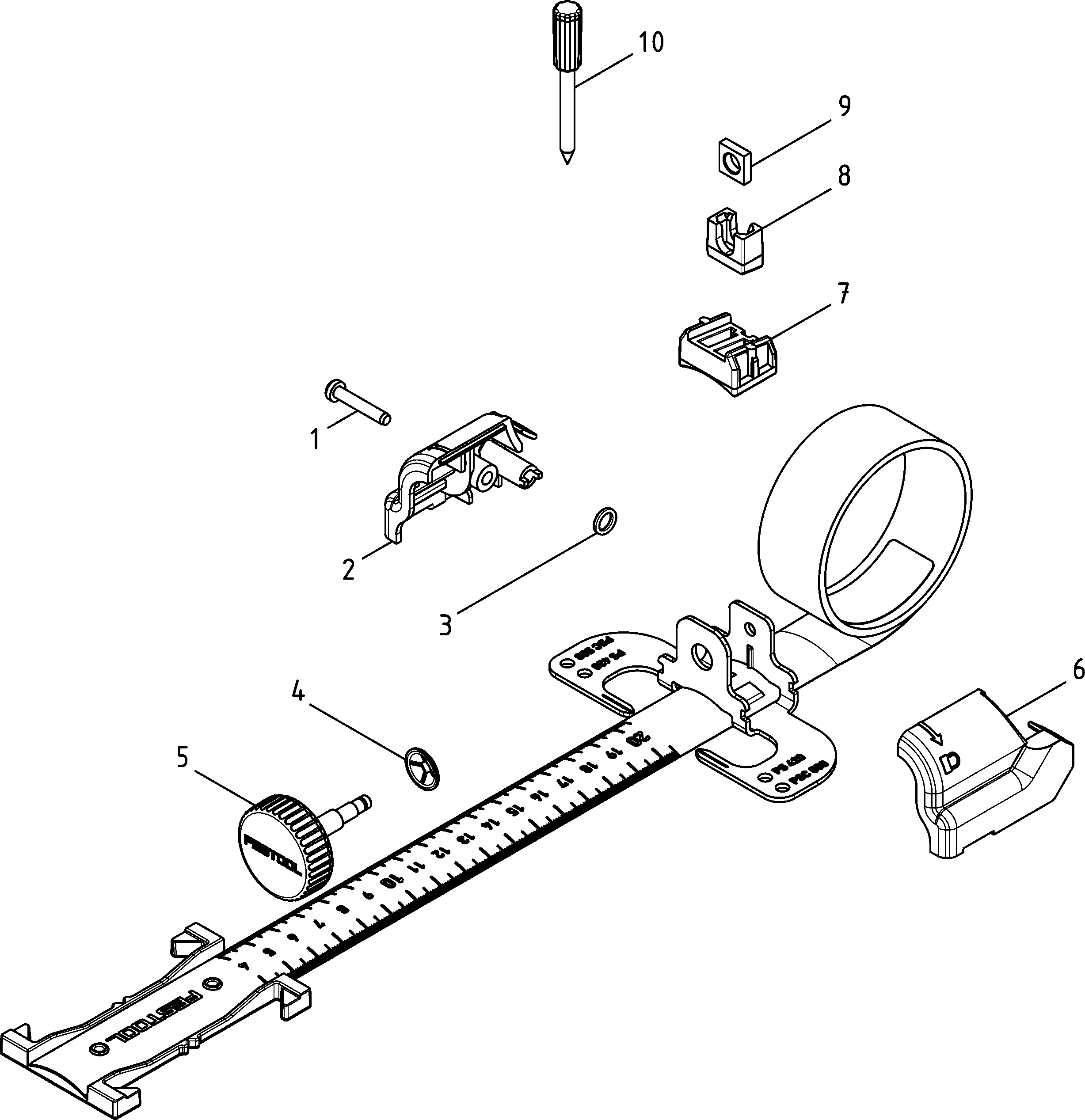

Technical drawing of model Festool 10884174 (KS-PSC500)
Spare parts list of model Festool 10884174 (KS-PSC500)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw PT-3,5x20-T15 | ||||
| 1 | 701186 | 1.51 | 1.83 | |
| Casing box KS-PS 400 | ||||
| 2 | 700475 | 1.58 | 1.91 | |
| O-ring 5x1,5-NBR-70SHORE | ||||
| 3 | 200052 | 1.51 | 1.83 | |
| Spring washer KS 4-BLS | ||||
| 4 | 701220 | 1.51 | 1.83 | |
| Axis KS-PS 400 | ||||
| 5 | 479385 | 14.64 | 17.71 | |
| Casing box KS-PS 400 | ||||
| 6 | 479381 | 1.58 | 1.91 | |
| Clamping elemen KS-PS 400 | ||||
| 7 | 479382 | 1.51 | 1.83 | |
| Adjustment KS-PS 400 | ||||
| 8 | 479383 | 1.51 | 1.83 | |
| Square nut DIN 562-M6-11H | ||||
| 9 | 452453 | 1.51 | 1.83 | |
| Brad point KS-PS 400 | ||||
| 10 | 479479 | 8.28 | 10.02 | |
