Here you will find all available parts and drawings of the 'Festool 10878388 (KBSCSysliteEU/US)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

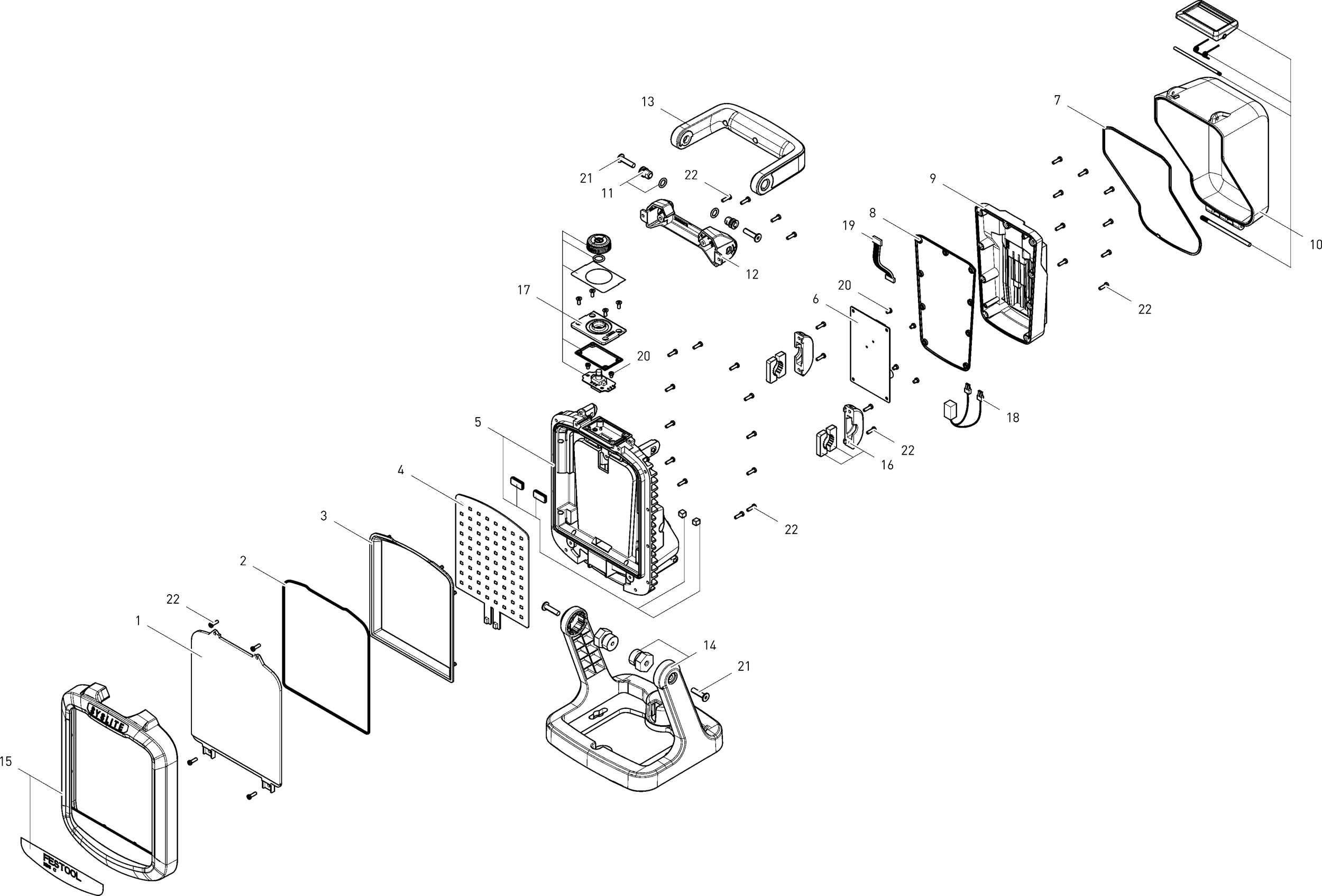

Technical drawing of model Festool 10878388 (KBSCSysliteEU/US)
Spare parts list of model Festool 10878388 (KBSCSysliteEU/US)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| LENS KBS C ET-BG | ||||
| 1 | 10946077 | 8.14 | 9.85 | |
| SEALING RING KBS C ET-BG | ||||
| 2 | 10946078 | 2.02 | 2.44 | |
| REFLECTOR KBS C ET-BG | ||||
| 3 | 10946079 | 5.62 | 6.80 | |
| LIGHT MODULE KBS C ET-BG | ||||
| 4 | 10946080 | 24.08 | 29.14 | |
| HOUSING KBS C ET-BG | ||||
| 5 | 10946081 | 48.64 | 58.85 | |
| ELECTRONICS KBS C ET-BG | ||||
| 6 | 10946091 | 50.09 | 60.61 | |
| SEALING RING KBS C ET-BG | ||||
| 7 | 10946092 | 2.52 | 3.05 | |
| SEALING RING KBS C ET-BG | ||||
| 8 | 10946093 | 2.30 | 2.78 | |
| BASE PLATE KBS C ET-BG | ||||
| 9 | 10946094 | 11.02 | 13.33 | |
| COVER KBS C ET-BG | ||||
| 10 | 10946095 | 18.15 | 21.96 | |
| UNION NUT KBS C ET-BG | ||||
| 11 | 10946098 | 8.86 | 10.72 | |
| STOP KBS C ET-BG | ||||
| 12 | 10946099 | 3.38 | 4.09 | |
| HANDLE KBS C ET-BG | ||||
| 13 | 10946100 | 11.29 | 13.66 | |
| BRACKET KBS C ET-BG | ||||
| 14 | 10946101 | 41.62 | 50.36 | |
| GUARD BODY KBS C ET-BG | ||||
| 15 | 10946102 | 18.76 | 22.70 | |
| BRACKET KBS C ET-BG | ||||
| 16 | 10946105 | 6.84 | 8.28 | |
| SWITCH KBS C ET-BG | ||||
| 17 | 10946106 | 12.22 | 14.79 | |
| WIRING HARNESS KBS C ET-BG | ||||
| 18 | 10946107 | 4.03 | 4.88 | |
| CONTROL CABLE KBS C ET-BG | ||||
| 19 | 10946108 | 11.59 | 14.02 | |
| SCREW PM3*4 | ||||
| 20 | 10881714 | 1.44 | 1.74 | |
| SCREW M5*20 | ||||
| 21 | 10881651 | 1.44 | 1.74 | |
| SCREW PB 3*10 | ||||
| 22 | 10881733 | 1.37 | 1.66 | |
