Here you will find all available parts and drawings of the 'Festool 200797 (KA-UG-KS60-Rrechts)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

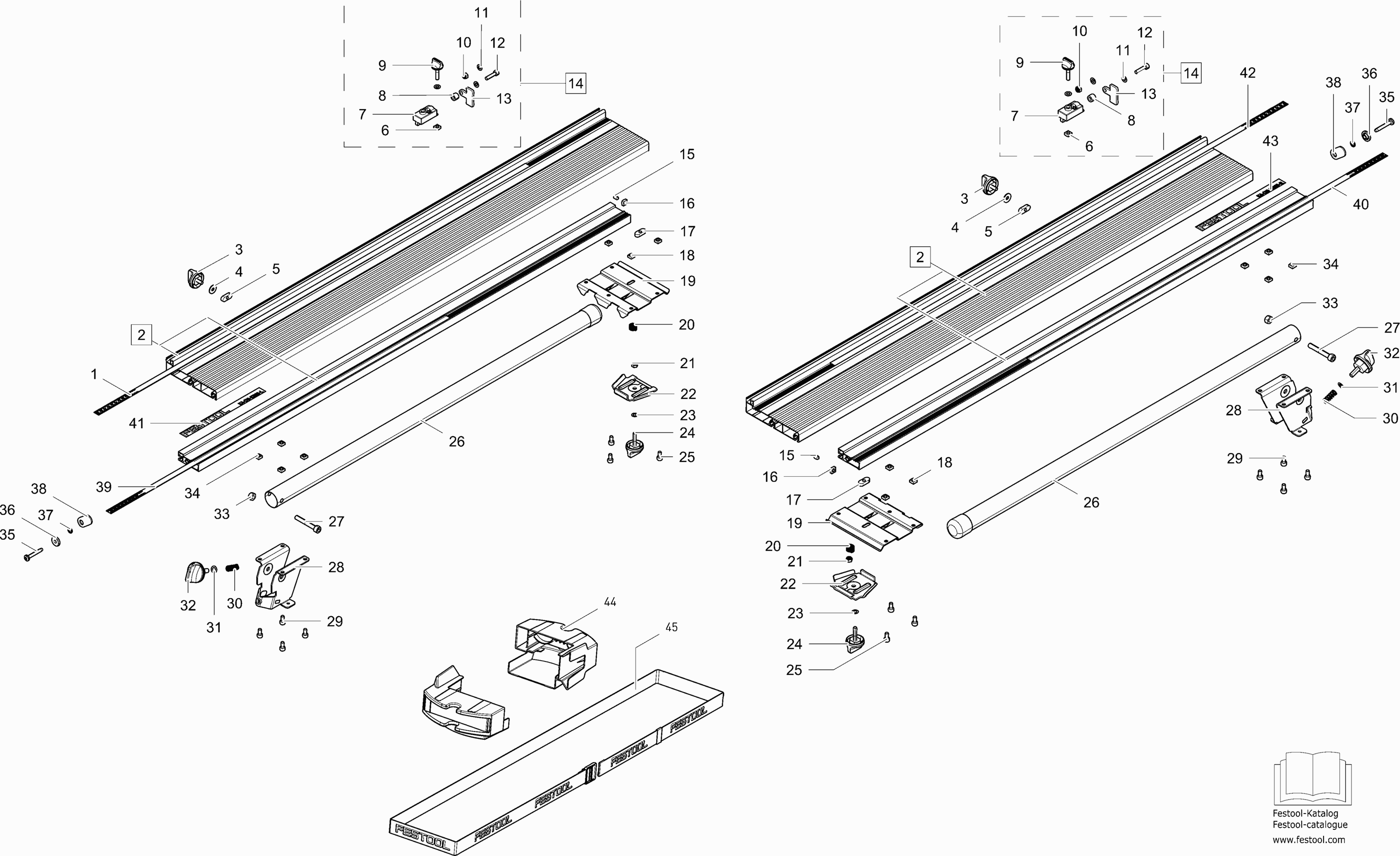

Technical drawing of model Festool 200797 (KA-UG-KS60-Rrechts)
Spare parts list of model Festool 200797 (KA-UG-KS60-Rrechts)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Scale KA-UG-KS60-R | ||||
| 1 | 10026113 | 15.00 | 18.15 | |
| Support UG 1800 ET-BG | ||||
| 2 | 10711428 | 118.58 | 143.48 | |
| Rotary knob D34 M6x11,5 blau | ||||
| 3 | 482098 | 2.38 | 2.88 | |
| Disc DIN 9021-6,4-100 HV | ||||
| 4 | 228546 | 1.51 | 1.83 | |
| SPRING CS 70 KA 10x6x25 | ||||
| 5 | 451630 | 4.54 | 5.49 | |
| Square nut DIN 557-M6-05 | ||||
| 6 | 228566 | 1.51 | 1.83 | |
| Limit stop MFT/3-AR | ||||
| 7 | 474734 | 3.10 | 3.75 | |
| Bush GGB 061210 BP25 | ||||
| 8 | 474741 | 4.10 | 4.96 | |
| Rotary knob BASIS 2 D 23 M6x28 blau | ||||
| 9 | 436420 | 2.02 | 2.44 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 10 | 228541 | 1.51 | 1.83 | |
| Disc DIN 125-B-6,4-140 HV | ||||
| 11 | 200578 | 1.51 | 1.83 | |
| Ch. head screw DIN 912-M6x25-8.8 | ||||
| 12 | 400477 | 1.51 | 1.83 | |
| Limit plate KA-UG 1800 | ||||
| 13 | 700184 | 4.46 | 5.40 | |
| Adjustable stop KA-UG 1800 | ||||
| 14 | 497356 | 21.78 | 26.35 | |
| Grub screw DIN 914-M6x10-45H | ||||
| 15 | 772440 | 1.51 | 1.83 | |
| Square nut DIN 557-M6-05 | ||||
| 16 | 228566 | 1.51 | 1.83 | |
| SPRING CS 70 KA 10x6x25 | ||||
| 17 | 451630 | 4.54 | 5.49 | |
| Square nut DIN 557-M6-05 | ||||
| 18 | 228566 | 1.51 | 1.83 | |
| Supporting plat KA-UG | ||||
| 19 | 479734 | 15.13 | 18.31 | |
| Spring VL -4-1/4 | ||||
| 20 | 207813 | 1.51 | 1.83 | |
| Hexagon nut DIN 985-M6-04 | ||||
| 21 | 228541 | 1.51 | 1.83 | |
| Lug support KA-UG-KS 60 | ||||
| 22 | 10020256 | 11.23 | 13.59 | |
| Shim ring DIN 988-6x12x0,1 | ||||
| 23 | 400643 | 1.51 | 1.83 | |
| Rotary knob D34 M6x27,5 blau | ||||
| 24 | 486202 | 2.81 | 3.40 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 25 | 200684 | 1.51 | 1.83 | |
| support stand KA-UG | ||||
| 26 | 498166 | 31.46 | 38.07 | |
| Ch. head screw DIN 912-M8x55-8.8 | ||||
| 27 | 479747 | 1.51 | 1.83 | |
| Bearing sheet KA-UG | ||||
| 28 | 10001420 | 24.93 | 30.17 | |
| Ch. head screw DIN 912-M6x12-10.9 | ||||
| 29 | 200684 | 1.51 | 1.83 | |
| Compression spr KS 120 EB | ||||
| 30 | 471026 | 2.02 | 2.44 | |
| Shim ring DIN 988-8x14x0,5 | ||||
| 31 | 400884 | 1.51 | 1.83 | |
| Rotary knob MIC 1600 D 40 M8x21 bla | ||||
| 32 | 484280 | 4.61 | 5.58 | |
| Hexagon nut DIN 985-M8-04 | ||||
| 33 | 200735 | 1.51 | 1.83 | |
| Square nut DIN 557-M6-05 | ||||
| 34 | 228566 | 1.51 | 1.83 | |
| Oval head screw CS 50-M6x40-DUO-TAPTITE | ||||
| 35 | 401137 | 1.51 | 1.83 | |
| Distance bush KA-UG 1800 | ||||
| 36 | 479755 | 8.28 | 10.02 | |
| O-ring 8x2-NBR-75SHORE | ||||
| 37 | 200053 | 1.51 | 1.83 | |
| Limit plate KA-UG | ||||
| 38 | 479738 | 1.94 | 2.35 | |
| Scale KA-UG-KS 60-L | ||||
| 39 | 10025886 | 15.00 | 18.15 | |
| Scale KA-UG-KS60-L | ||||
| 40 | 10026114 | 16.34 | 19.77 | |
| Scale KA-UG-KS 60-L | ||||
| 40 | 10025886 | 15.00 | 18.15 | |
| Type plate KA-UG-KS60-L | ||||
| 41 | 10026390 | 8.57 | 10.37 | |
| Scale KA-UG-KS60-R | ||||
| 42 | 10026113 | 15.00 | 18.15 | |
| Type plate KA-UG-KS60-L | ||||
| 43 | 10026390 | 8.57 | 10.37 | |
| Protecting cap KA-UG-R/L | ||||
| 44 | 700176 | 18.15 | 21.96 | |
| Belt KA-UG-R/L | ||||
| 45 | 700549 | 20.57 | 24.89 | |
