Festool Ka 65 230V-240V spare parts and technical drawings

Here you will find all available parts and drawings of the 'Festool 10000233 (KA65230V-240V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

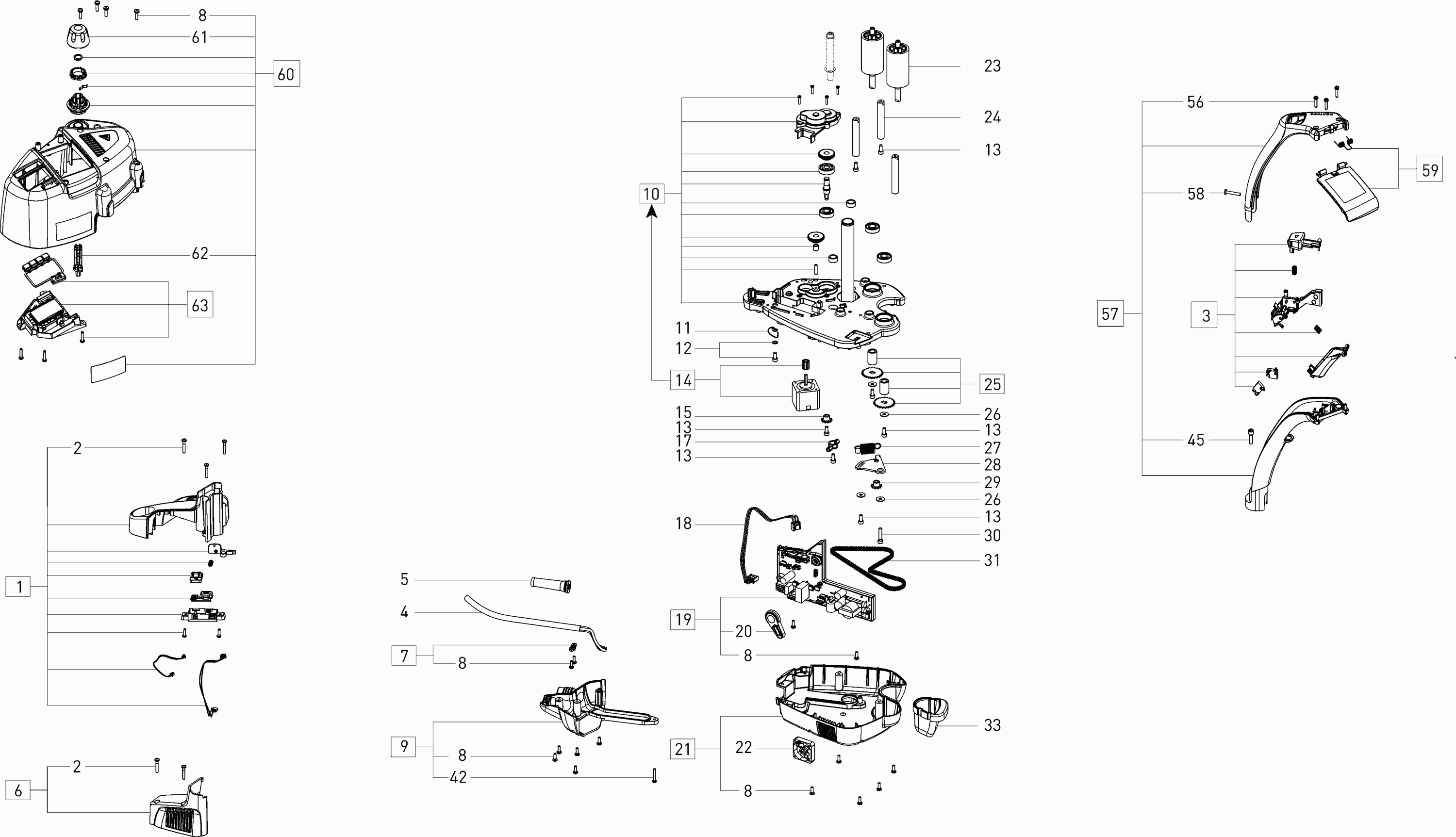

Technical drawing of model Festool 10000233 (KA65230V-240V)

Spare parts list of model Festool 10000233 (KA65230V-240V)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Hood KA 65
1	499761	98.13	118.74

Oval head screw M4x25-TAPTITE-T15
2	400928	1.51	1.83

Switch KA 65
3	500080	57.23	69.25

CABLE W.CONNECT KA 65 DIN-H07RN-F 3x1.5
4	706512	56.51	68.38

Cable sleeve KA 65
5	10010760	2.09	2.53

Cover KA 65
6	499762	28.07	33.96

Clamping elemen KA 65
7	499763	22.14	26.79

Oval head screw M4x12-TAPTITE-KT15
8	400050	1.51	1.83

Cover KA 65
9	499764	37.27	45.10

Base plate KA 65
10	499765	200.26	242.31

Flexible lead KL
11	10000907	1.51	1.83

Comb. screw M5x16-8.8 with DIN6798-J5
12	10012842	1.51	1.83

Ch. head screw DIN 912-M5x12-12.9
13	761437	1.51	1.83

Motor KA 65
14	499766	93.05	112.59

Sprocket ISO 03-1 Z11
15	10003012	3.46	4.19

Magnetic holder KL 65
17	10000098	9.43	11.41

Flexible lead KL
18	10002609	14.76	17.86

Electronics KA 65
19	499767	253.37	306.58

Lever KA 65
20	10002833	3.10	3.75

Floor KA 65
21	499768	42.83	51.82

Fan KA 65
22	500535	45.74	55.35

Roller KL 65
23	10000091	57.11	69.10

Support KL 65
24	10004878	8.14	9.85

Collet KA 65
25	499769	33.52	40.56

Disc DIN 9021-5,3-100 HV
26	418269	1.51	1.83

Draw spring KL 65
27	10002961	2.88	3.48

Board KA 65
28	10004048	21.18	25.63

Sprocket ISO 03-1 Z11
29	10002960	3.38	4.09

Ch. head screw DIN 912-M5x25-8.8
30	400526	1.51	1.83

Chain 03-1 5x 2,5 DIN 8187
31	10000046	42.83	51.82

Container KA 65
33	10000034	12.67	15.33

Plate KA 65
34	499774	168.80	204.25

Lever KA 65
35	499775	47.80	57.84

Oval head screw M4x8-TAPTITE-T15
36	228570	9.17	11.10

Electronics KA 65
37	499776	48.28	58.42

Oval head screw M4x12-TAPTITE-T15
38	228509	1.51	1.83

Cable holder KA 65
39	10009014	2.38	2.88

Flexible lead KL
40	10002617	14.40	17.42

Motor KA 65
41	499777	128.62	155.63

Oval head screw PT-3,5x25-PZV
42	400233	1.51	1.83

Eccentric shaft KA 65
43	499778	73.08	88.43

Electronics KA 65 ET-BG
44	205230	55.18	66.77

Ch. head screw DIN 912-M5x16-8.8
45	228643	1.51	1.83

Rotary knob OF 1000 EB D 23 M6x8 bla
46	451533	2.30	2.78

Plate KA 65
47	499780	118.34	143.19

Shaft KA 65
48	499781	42.11	50.95

Guide KA 65
49	499772	353.80	428.10

Oval head screw DIN 7985-M3x14-KOMBITORX
50	401089	1.51	1.83

Microswitch KL vollst ndig UL approb
51	704875	20.09	24.31

Motor KA 65
52	500538	104.54	126.49

Heat sink KA 65
53	499773	521.87	631.46

Sensor KA 65 PT100
54	500537	66.91	80.96

Flexible lead KL
55	10002540	2.95	3.57

Oval head screw PT-3,5x14-KT15
56	400468	1.51	1.83

Pistol stock KA 65
57	499770	62.80	75.99

Oval head screw PT-3,5x25-KT15
58	219068	1.51	1.83

Pistol stock KA 65
59	499783	30.86	37.34

Hood KA 65
60	499784	73.93	89.46

HANDLE UP OF 2200 EB
61	471476	3.31	4.01

Shaft KA 65
62	10000317	2.38	2.88

Electronics KA 65
63	499785	101.28	122.55

Slideway lining KA 65
64	10000191	16.82	20.35

Countersink M4x8-TAPTITE-T15
65	219043	1.51	1.83

Base KA 65
66	499782	113.14	136.90

Joint piece KA 65
67	500563	35.33	42.75

Shim ring DIN 988-11x17x0,2 ST
68	400329	1.51	1.83

Heating cartridge KL 230V vollst.
69	10000207	99.10	119.91

Heating cartrid KL 230V vollst.
70	10002397	49.25	59.59

Filter KA65 ET-BG
71	10541856	38.84	47.00

Filter unit KA 65
71	203496	36.90	44.65

Moer KL 65 9999→xxx Niet meer leverbaar 0 ?
72	10004566	14.52	17.57
