Here you will find all available parts and drawings of the 'Festool 497213 ( IAS-SLANGLIGHT5000AS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

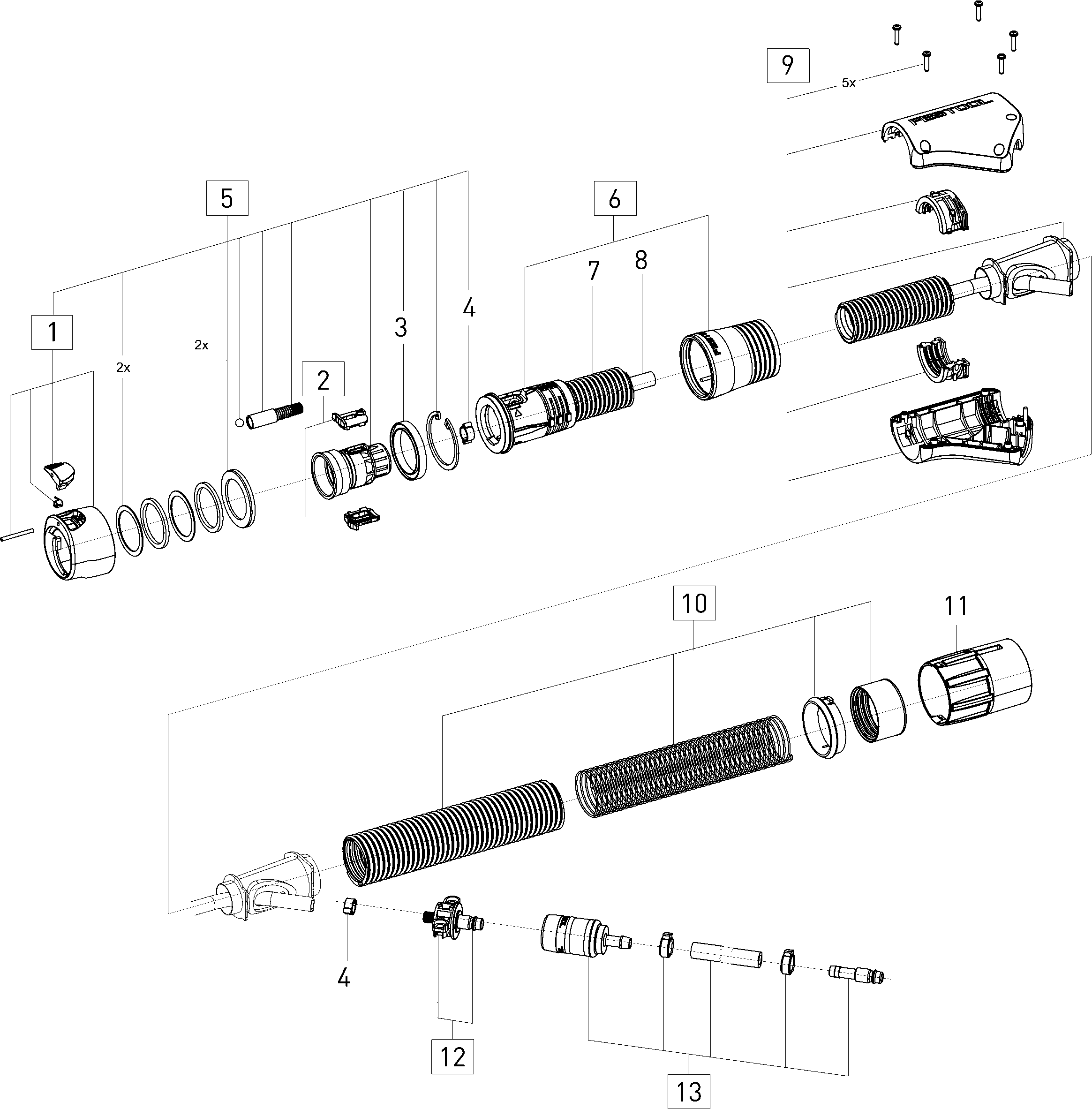

Technical drawing of model Festool 497213 ( IAS-SLANGLIGHT5000AS )
Spare parts list of model Festool 497213 ( IAS-SLANGLIGHT5000AS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Casing box IAS 3 | ||||
| 1 | 499267 | 23.11 | 27.96 | |
| Filter IAS 3 light | ||||
| 2 | 499266 | 13.79 | 16.69 | |
| Ball bearing 61808 2RS DIN 625 | ||||
| 3 | 401132 | 26.14 | 31.63 | |
| Hose clamp IAS 3 | ||||
| 4 | 10003260 | 4.49 | 5.43 | |
| Rotary body IAS 3 light | ||||
| 5 | 499193 | 52.15 | 63.10 | |
| Antikink IAS 3 light | ||||
| 6 | 499611 | 32.19 | 38.95 | |
| Extractor hose IAS 3-light 5000 D29 | ||||
| 7 | 701949 | 143.99 | 174.23 | |
| Hose 8.7x12,4 IAS3 light 5000 | ||||
| 8 | 701957 | 150.16 | 181.69 | |
| Housing set IAS 3 | ||||
| 9 | 499667 | 40.78 | 49.34 | |
| Hose IAS 3 D36 | ||||
| 10 | 499246 | 46.10 | 55.78 | |
| Muff D 36 IAS 3 | ||||
| 11 | 479359 | 9.96 | 12.05 | |
| Connection IAS 3-light | ||||
| 12 | 497559 | 35.70 | 43.20 | |
| Connection IAS 3 0,5m | ||||
| 13 | 499269 | 72.84 | 88.14 | |
