Here you will find all available parts and drawings of the 'Festool 497211 (IAS-slang10000AS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

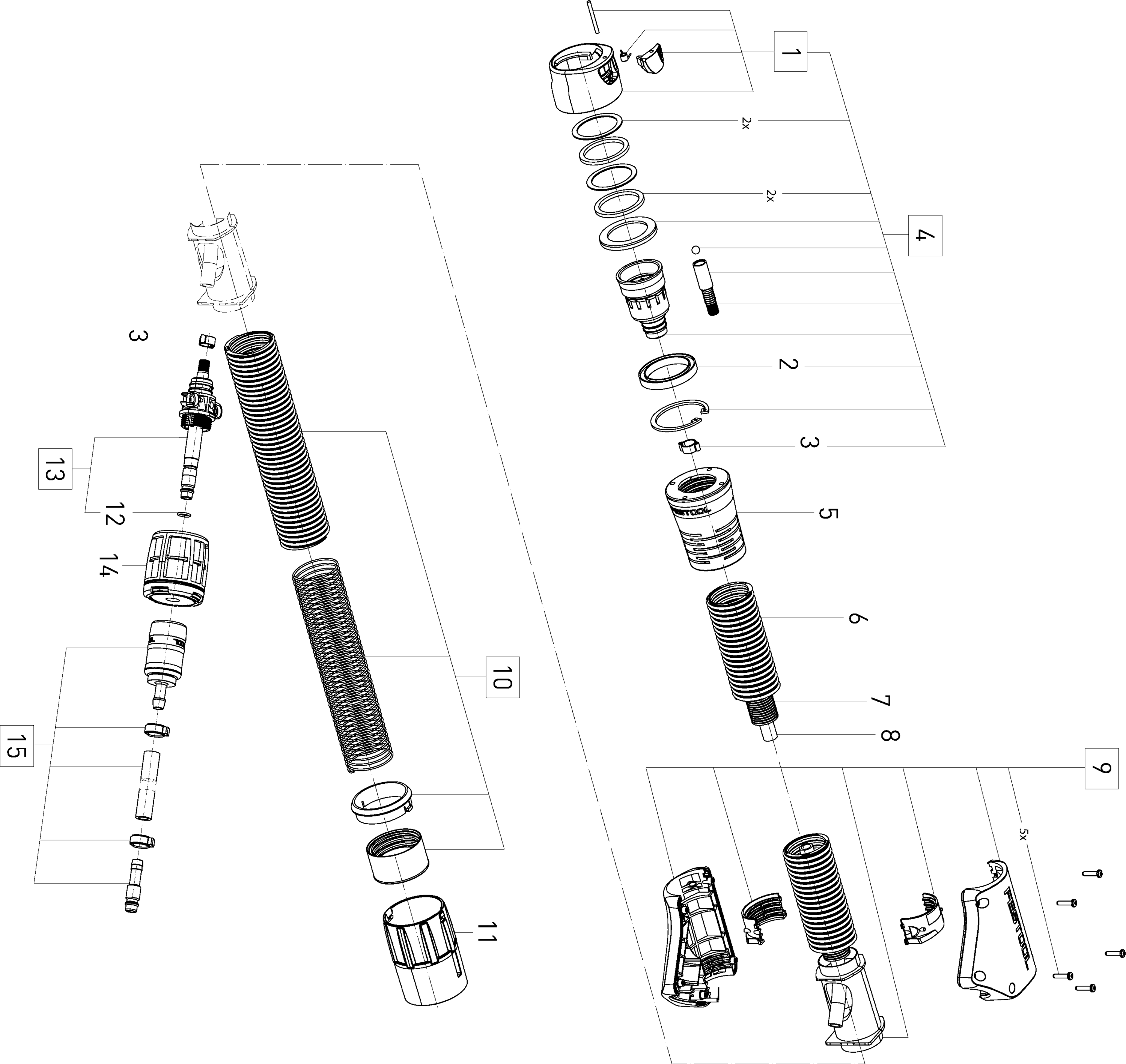

Technical drawing of model Festool 497211 (IAS-slang10000AS)
Spare parts list of model Festool 497211 (IAS-slang10000AS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Casing box IAS 3 | ||||
| 1 | 499267 | 24.08 | 29.14 | |
| Ball bearing 61808 2RS DIN 625 | ||||
| 2 | 401132 | 26.14 | 31.63 | |
| Hose clamp IAS 3 | ||||
| 3 | 10003260 | 5.40 | 6.53 | |
| Rotary body IAS 3 | ||||
| 4 | 499017 | 57.11 | 69.10 | |
| Antikink IAS 3 | ||||
| 5 | 700618 | 15.00 | 18.15 | |
| Extractor hose IAS 2-10000 AS | ||||
| 6 | 703377 | 332.27 | 402.05 | |
| Air exhaust hos IAS 2 10200mm | ||||
| 7 | 470794 | 35.09 | 42.46 | |
| Hose 8.7x12,4 IAS3 light10000 | ||||
| 8 | 701959 | 197.47 | 238.94 | |
| Housing set IAS 3 | ||||
| 9 | 499268 | 42.35 | 51.24 | |
| Hose IAS 3 D36 | ||||
| 10 | 499246 | 47.92 | 57.98 | |
| Muff D 36 IAS 3 | ||||
| 11 | 479359 | 10.87 | 13.15 | |
| O-ring 9x1,5-NBR-75SHORE | ||||
| 12 | 200923 | 2.09 | 2.53 | |
| Connection IAS 3 | ||||
| 13 | 499019 | 47.55 | 57.54 | |
| Filter IAS 3 | ||||
| 14 | 499265 | 39.69 | 48.02 | |
| Connection IAS 3 0,5m | ||||
| 15 | 499269 | 75.75 | 91.66 | |
