Here you will find all available parts and drawings of the 'Festool 486021 (HL850E220V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

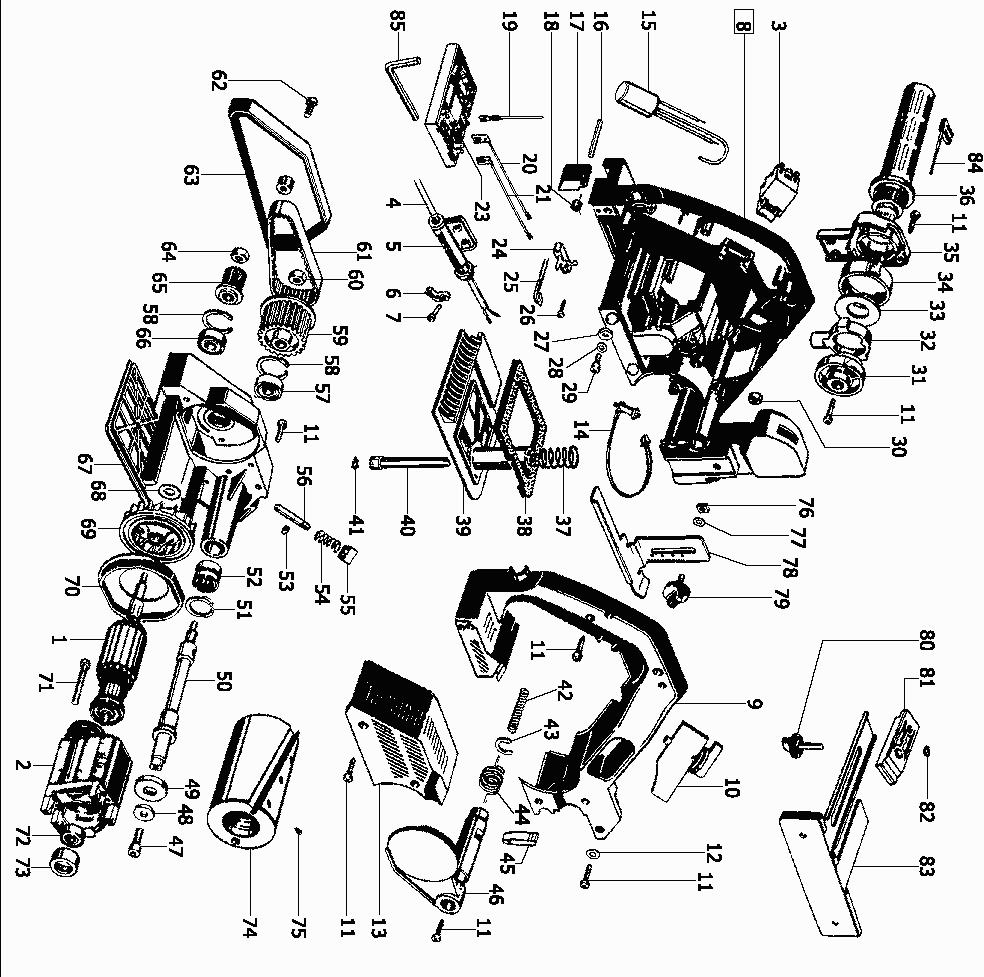

Technical drawing of model Festool 486021 (HL850E220V)
Spare parts list of model Festool 486021 (HL850E220V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 230V HL 850 E 230V ET-BG | ||||
| 1 | 492300 | 149.80 | 181.26 | |
| FIELD COIL HL 850 EB 230V ET-BG | ||||
| 2 | 492302 | 87.24 | 105.56 | |
| Schakelaar | ||||
| 3 | 490843 | 42.96 | 51.98 | |
| CABLE WITH PLUG AP 85 E DIN-H05RN-F | ||||
| 4 | 457600 | 24.32 | 29.43 | |
| CABLE SLEEVE RO 1 E 210.218 | ||||
| 5 | 437024 | 2.88 | 3.48 | |
| Cable clamp RS 3 | ||||
| 6 | 439288 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x16-KT15 | ||||
| 7 | 228663 | 1.51 | 1.83 | |
| HOUSING HL 850 E KOMPL. | ||||
| 8 | 485889 | 142.78 | 172.76 | |
| Handle cover HL 850 E | ||||
| 9 | 715176 | 14.40 | 17.42 | |
| EXTRACTION SELE HL 850 E | ||||
| 10 | 715039 | 3.38 | 4.09 | |
| LENSKOPSCHROEF PT-4,0X20-KT15 | ||||
| 11 | 10896186 | 1.51 | 1.83 | |
| Oval head screw PT-4.0x20-KT15 | ||||
| 11 | 228567 | 1.51 | 1.83 | |
| Serrated washer DIN 6797-A-4,3 | ||||
| 12 | 200762 | 1.51 | 1.83 | |
| Motor cover HL 850 E | ||||
| 13 | 455589 | 4.82 | 5.83 | |
| Coil shell HL 850 E VOLLST. | ||||
| 14 | 612012 | 15.00 | 18.15 | |
| CAPACITOR HL 850 E VOLLST. | ||||
| 15 | 715125 | 9.72 | 11.76 | |
| Cylinder pin DIN 7-4m6x36-ST | ||||
| 16 | 228651 | 1.51 | 1.83 | |
| PIVOT BLOCK HL 850 E | ||||
| 17 | 715030 | 1.51 | 1.83 | |
| SPRING HL 850 E | ||||
| 18 | 715033 | 1.51 | 1.83 | |
| WIRE HL 850 E VOLLST. | ||||
| 19 | 715124 | 1.51 | 1.83 | |
| No information available, not orderable | ||||
| 20 | xxx | |||
| No information available, not orderable | ||||
| 21 | xxx | |||
| PLATE HL 850 E ELELTRONIK | ||||
| 23 | 490305 | 119.55 | 144.66 | |
| BRUSH HOLDER AP 65 E | ||||
| 24 | 488915 | 17.55 | 21.24 | |
| Plug-in bracket AP 65 E | ||||
| 25 | 443331 | 1.73 | 2.09 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 26 | 219031 | 7.32 | 8.86 | |
| WASHER HL 850 E | ||||
| 27 | 715166 | 4.82 | 5.83 | |
| Disc DIN 125-B-5,3-140 HV | ||||
| 28 | 200577 | 1.51 | 1.83 | |
| Oval head screw DIN 7985-M4x12-8.8-PR30+ | ||||
| 29 | 476787 | 1.51 | 1.83 | |
| Hexagon nut DIN 934-M6-10 | ||||
| 30 | 228689 | 1.51 | 1.83 | |
| Cam HL 850 E | ||||
| 31 | 715053 | 7.70 | 9.32 | |
| DEPTH ADJ. HOUS HL 850 E | ||||
| 32 | 715055 | 12.14 | 14.69 | |
| SPACER HL 850 E | ||||
| 33 | 715037 | 2.66 | 3.22 | |
| Clamping ring HL 850 E | ||||
| 34 | 715054 | 3.17 | 3.84 | |
| DEPTH ADJ. HOUS HL 850 E | ||||
| 35 | 715051 | 2.95 | 3.57 | |
| Handle HL 850 E | ||||
| 36 | 715052 | 11.38 | 13.77 | |
| SPRING DIN 2098-2,25x19,50x32,0 | ||||
| 37 | 715029 | 1.80 | 2.18 | |
| NEOPRENE SEAL HL 850 E | ||||
| 38 | 715022 | 4.61 | 5.58 | |
| ADJ. TABLE HL 850 E VOLLST. | ||||
| 39 | 487656 | 45.25 | 54.75 | |
| BOLT HL 850 E SPEEDLACK | ||||
| 40 | 400040 | 1.51 | 1.83 | |
| Tooth ring ZJ-12-SEEGER | ||||
| 41 | 213646 | 1.51 | 1.83 | |
| SPRING DIN 2098-0,90x8,30x37,6 | ||||
| 42 | 715038 | 1.51 | 1.83 | |
| Circlip H-16x1-SEEGER | ||||
| 43 | 228656 | 1.51 | 1.83 | |
| SPRING HL 850 E | ||||
| 44 | 715020 | 4.68 | 5.66 | |
| Depresser HL 850 E | ||||
| 45 | 715049 | 1.51 | 1.83 | |
| SWINGING GUARD HL 850 E | ||||
| 46 | 715048 | 5.62 | 6.80 | |
| Ch. head screw DIN 912-M6x16-10.9 | ||||
| 47 | 200685 | 1.51 | 1.83 | |
| Disc DIN 7349-6,4 | ||||
| 48 | 402935 | 1.51 | 1.83 | |
| Clamping flange HL 850 E | ||||
| 49 | 715036 | 2.30 | 2.78 | |
| SHAFT HL 850 E | ||||
| 50 | 715015 | 34.36 | 41.58 | |
| CIRCLIP I 24x1,2V SEEGER | ||||
| 51 | 202930 | 1.51 | 1.83 | |
| ROLLER BEARING 4901.2RS H +16 +21 | ||||
| 52 | 788849 | 26.98 | 32.65 | |
| Circlip H-5x0,6-SEEGER | ||||
| 53 | 229597 | 1.51 | 1.83 | |
| SPRING DIN 2098-0,63x10,63x20,0 | ||||
| 54 | 715027 | 1.58 | 1.91 | |
| Cap HL 850 E | ||||
| 55 | 715050 | 1.51 | 1.83 | |
| Bolt HL 850 E | ||||
| 56 | 715021 | 5.04 | 6.10 | |
| BALL BEARING 6000 DDU-CM NS7 S | ||||
| 57 | 400583 | 7.42 | 8.98 | |
| CIRCLIP I 26x1,2V SEEGER | ||||
| 58 | 209608 | 2.02 | 2.44 | |
| Serrated washer HL 850 E Z 48 | ||||
| 59 | 715034 | 15.37 | 18.60 | |
| Hexagon nut DIN 934-M6-10 | ||||
| 60 | 228689 | 1.51 | 1.83 | |
| TOOTHED DRIVE B 150 S 3M 267 | ||||
| 61 | 714043 | 12.83 | 15.52 | |
| Oval head screw DIN 7985-M4x12-8.8-PR30+ | ||||
| 62 | 476787 | 1.51 | 1.83 | |
| Gear box HL 850 E | ||||
| 63 | 455585 | 6.70 | 8.11 | |
| Hexagon nut DIN 439-M6 | ||||
| 64 | 772997 | 1.58 | 1.91 | |
| TOOTHED BELT PU Z 22 | ||||
| 65 | 715035 | 5.98 | 7.24 | |
| BALL BEARING 6000 DDU-C3 D8S L (NSK) | ||||
| 66 | 789575 | 6.91 | 8.36 | |
| BEARING FLANGE HL 850 E VOLLST. | ||||
| 67 | 487655 | 118.70 | 143.63 | |
| Shim ring DIN 988-10x16x1,0 | ||||
| 68 | 782510 | 1.51 | 1.83 | |
| Fan HL 850 E | ||||
| 69 | 715024 | 2.30 | 2.78 | |
| COVER HL 850 E | ||||
| 70 | 715017 | 1.58 | 1.91 | |
| Oval head screw PT-4,0x50-KT15 | ||||
| 71 | 228707 | 1.51 | 1.83 | |
| BALL BEARING 608 2Z C3 DIN 625 | ||||
| 72 | 228559 | 4.68 | 5.66 | |
| Bearing ring AT 55 E | ||||
| 73 | 438613 | 1.51 | 1.83 | |
| Planing head | ||||
| 74 | 484520 | 143.00 | 173.03 | |
| THREADED PIN M4x8 (3x) 10.9 Leitz | ||||
| 75 | 715102 | 1.58 | 1.91 | |
| Square nut DIN 557-M6-05 | ||||
| 76 | 228566 | 1.51 | 1.83 | |
| O-ring 5x1,5-NBR-70SHORE | ||||
| 77 | 200052 | 1.51 | 1.83 | |
| Rebate stop HL 850 E | ||||
| 78 | 715040 | 9.50 | 11.50 | |
| Button KF 4 E D 23 M6x10 blau | ||||
| 79 | 436195 | 1.80 | 2.18 | |
| Rotary knob BASIS 2 D 23 M6x28 blau | ||||
| 80 | 436420 | 2.02 | 2.44 | |
| GLIDE PIECE WA-HL | ||||
| 81 | 715156 | 10.51 | 12.72 | |
| O-ring 5x1,5-NBR-70SHORE | ||||
| 82 | 200052 | 1.51 | 1.83 | |
| SUB FRAME HL 850 E | ||||
| 83 | 715056 | 24.44 | 29.57 | |
| Hexagon wrench HL 850 E SW 2 | ||||
| 84 | 439803 | 5.83 | 7.05 | |
| Screw driver SW 5 DIN911 | ||||
| 85 | 202752 | 1.51 | 1.83 | |
