Here you will find all available parts and drawings of the 'Festool 10013170 ( GROEFFREES )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

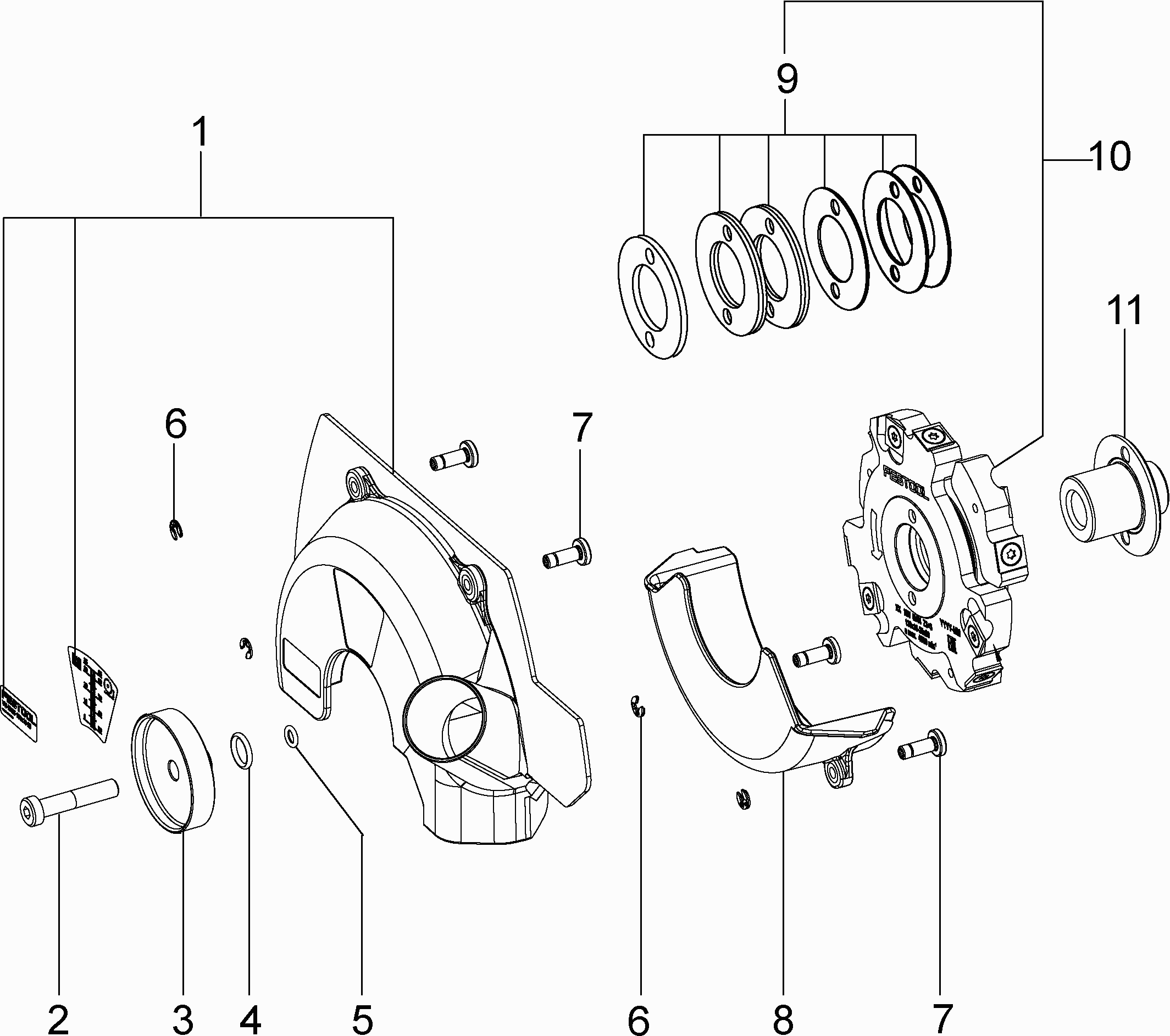

Technical drawing of model Festool 10013170 ( GROEFFREES )
Spare parts list of model Festool 10013170 ( GROEFFREES )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Dust-extr. Syst HK 85 ET-BG | ||||
| 1 | 707691 | 53.00 | 64.13 | |
| Screw M8x40 DIN 7984 | ||||
| 2 | 10013171 | 1.39 | 1.68 | |
| Counter flange VN-HK 85 | ||||
| 3 | 10005282 | 32.79 | 39.68 | |
| O-RING 11,8x2,4 - 70 SH | ||||
| 4 | 400639 | 1.39 | 1.68 | |
| O-ring 6x2-NBR-75SHORE | ||||
| 5 | 200915 | 1.39 | 1.68 | |
| Securing ring 4 | ||||
| 6 | 633635 | 1.39 | 1.68 | |
| Screw VN-HK 85 | ||||
| 7 | 10021707 | 12.70 | 15.37 | |
| Pendulum guard VN-HK 85 | ||||
| 8 | 10013169 | 35.09 | 42.46 | |
| Spacer ring VN-HK ET-BG | ||||
| 9 | 201818 | 65.46 | 79.21 | |
| Groove cutter VN-HK 85 | ||||
| 10 | 10013167 | 432.82 | 523.71 | |
| Clamping flange VN-HK 85 | ||||
| 11 | 10005280 | 41.74 | 50.51 | |
