Here you will find all available parts and drawings of the 'Festool 494681 ( GELEIDEAANSLAGFS-OF2200 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

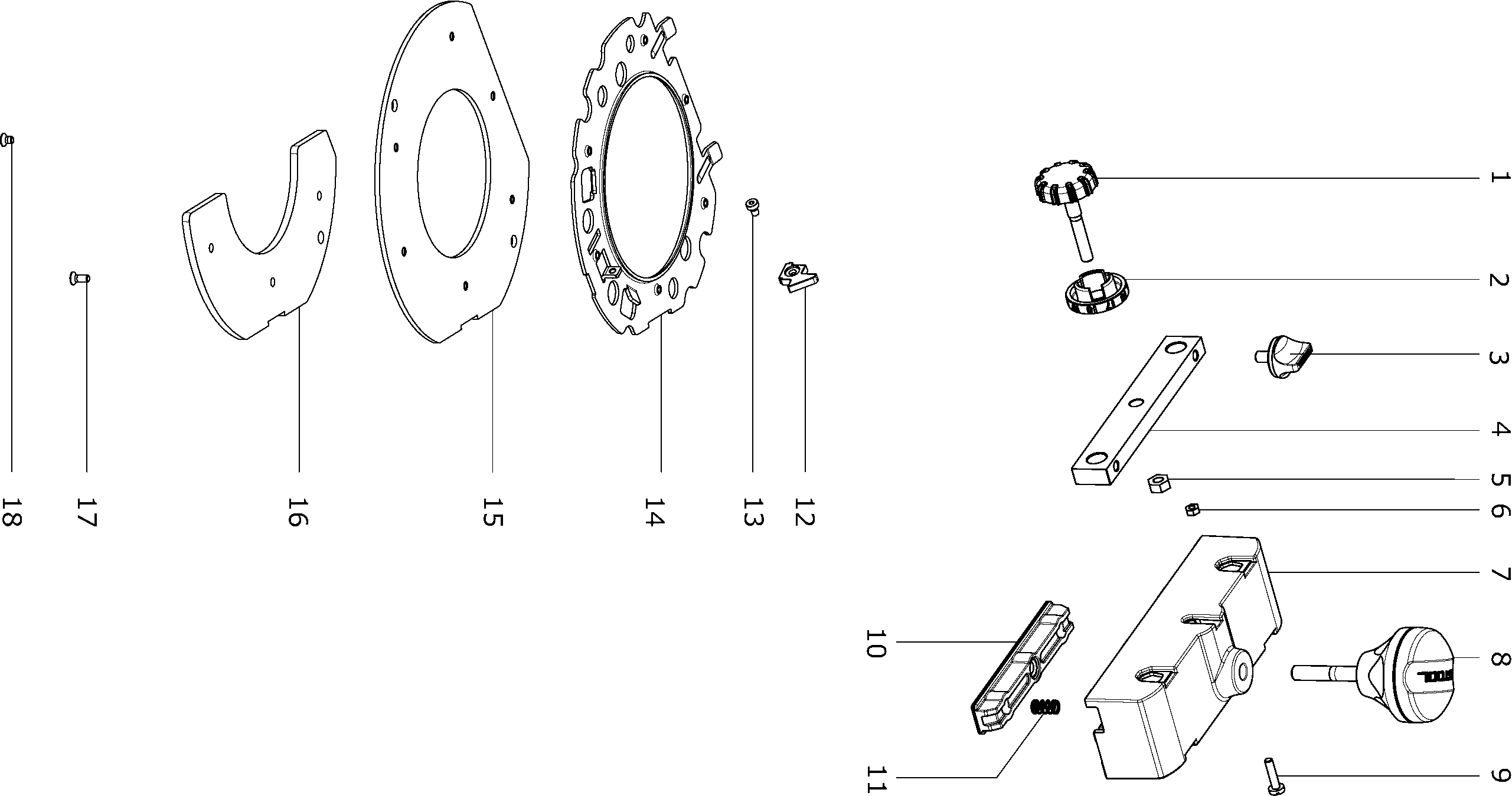

Technical drawing of model Festool 494681 ( GELEIDEAANSLAGFS-OF2200 )
Spare parts list of model Festool 494681 ( GELEIDEAANSLAGFS-OF2200 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Adjusting screw OF 2200 EB | ||||
| 1 | 472731 | 13.07 | 15.81 | |
| ADJ. RING OF 2200 | ||||
| 2 | 465555 | 3.70 | 4.48 | |
| Button KF 4 E D 23 M6x10 blau | ||||
| 3 | 436195 | 1.58 | 1.91 | |
| CLAMP CONNECT. OF 2200 EB | ||||
| 4 | 470804 | 25.17 | 30.46 | |
| Hexagon nut DIN 934-M6-10 | ||||
| 5 | 228689 | 1.39 | 1.68 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 6 | 200715 | 1.39 | 1.68 | |
| BRACKET OF 2200 EB | ||||
| 7 | 494011 | 15.61 | 18.89 | |
| Handle OF 2200 EB | ||||
| 8 | 494495 | 8.32 | 10.07 | |
| Oval head screw DIN 7985-M4x18-4.8 | ||||
| 9 | 452456 | 1.39 | 1.68 | |
| CLAMPING DEVICE OF 2200 EB | ||||
| 10 | 470036 | 26.14 | 31.63 | |
| Compr. spring DIN 2098-0,70x7,50x14,7 | ||||
| 11 | 444754 | 1.39 | 1.68 | |
| GLIDE SHOE OF 2200 EB | ||||
| 12 | 470890 | 1.72 | 2.08 | |
| Cylinder screw M4 x 6 | ||||
| 13 | 453584 | 1.39 | 1.68 | |
| BRACKET OF 2200 EB | ||||
| 14 | 470034 | 17.42 | 21.08 | |
| Crosshd. guide OF 2200 EB | ||||
| 15 | 470035 | 22.63 | 27.38 | |
| Spacer plate OF 2200 EB | ||||
| 16 | 473450 | 31.10 | 37.63 | |
| Countersunk screw DIN 965-M4x10-4.8-TORX | ||||
| 17 | 228727 | 1.39 | 1.68 | |
| Countersink DIN 965-M4x6-4.8-T15 | ||||
| 18 | 401021 | 1.39 | 1.68 | |
