Here you will find all available parts and drawings of the 'Festool 11059052 (EU)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

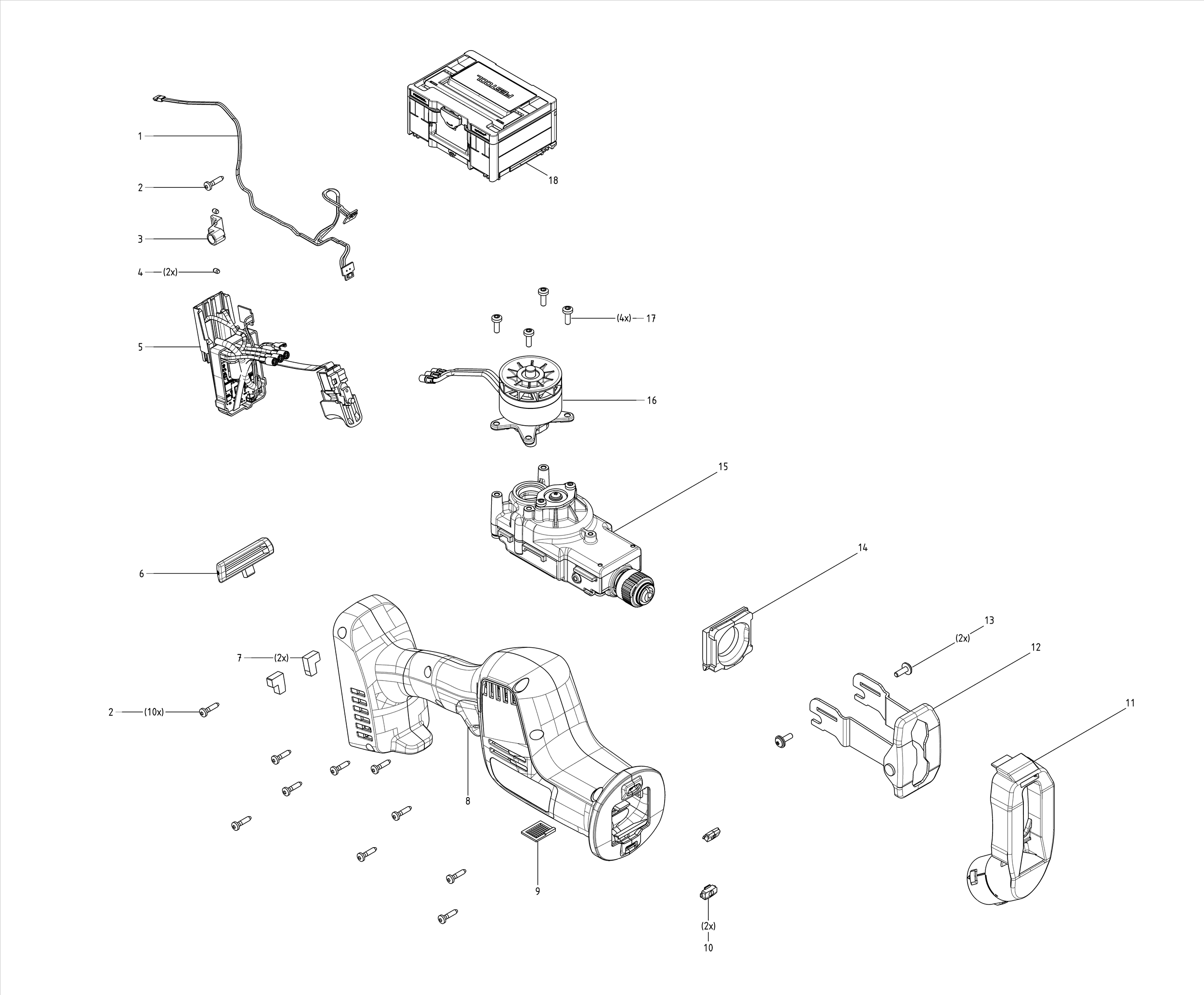

Technical drawing of model Festool 11059052 (EU)
Spare parts list of model Festool 11059052 (EU)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Light | ||||
| 1 | 11129134 | 23.47 | 28.40 | |
| Pan-head screw | ||||
| 2 | 11061440 | 6.34 | 7.67 | |
| Pressure plate | ||||
| 3 | 11129137 | 5.83 | 7.05 | |
| Rubber buffer | ||||
| 4 | 11129146 | 6.26 | 7.57 | |
| Electronics | ||||
| 5 | 11129133 | 132.07 | 159.80 | |
| Switch-off lock | ||||
| 6 | 11129138 | 5.83 | 7.05 | |
| Buffer AGC 18 | ||||
| 7 | 10113272 | 4.25 | 5.14 | |
| Housing set | ||||
| 8 | 11059591 | 31.64 | 38.28 | |
| Ventilation grille | ||||
| 9 | 11083005 | 6.26 | 7.57 | |
| Light guide | ||||
| 10 | 11129136 | 6.05 | 7.32 | |
| Dust extraction device | ||||
| 11 | 11129145 | 10.30 | 12.46 | |
| Saw table | ||||
| 12 | 11129143 | 17.79 | 21.53 | |
| Countersunk-head screw | ||||
| 13 | 11061443 | 5.62 | 6.80 | |
| Housing insert | ||||
| 14 | 11129135 | 7.20 | 8.71 | |
| Gear transmission | ||||
| 15 | 11082885 | 125.42 | 151.76 | |
| Electric motor | ||||
| 16 | 11082895 | 77.62 | 93.92 | |
| Pan-head screw | ||||
| 17 | 11061442 | 6.34 | 7.67 | |
| Rating plate | ||||
| 18 | 11058812 | 1.37 | 1.66 | |
