Here you will find all available parts and drawings of the 'Festool 10679061 (ETSC2125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

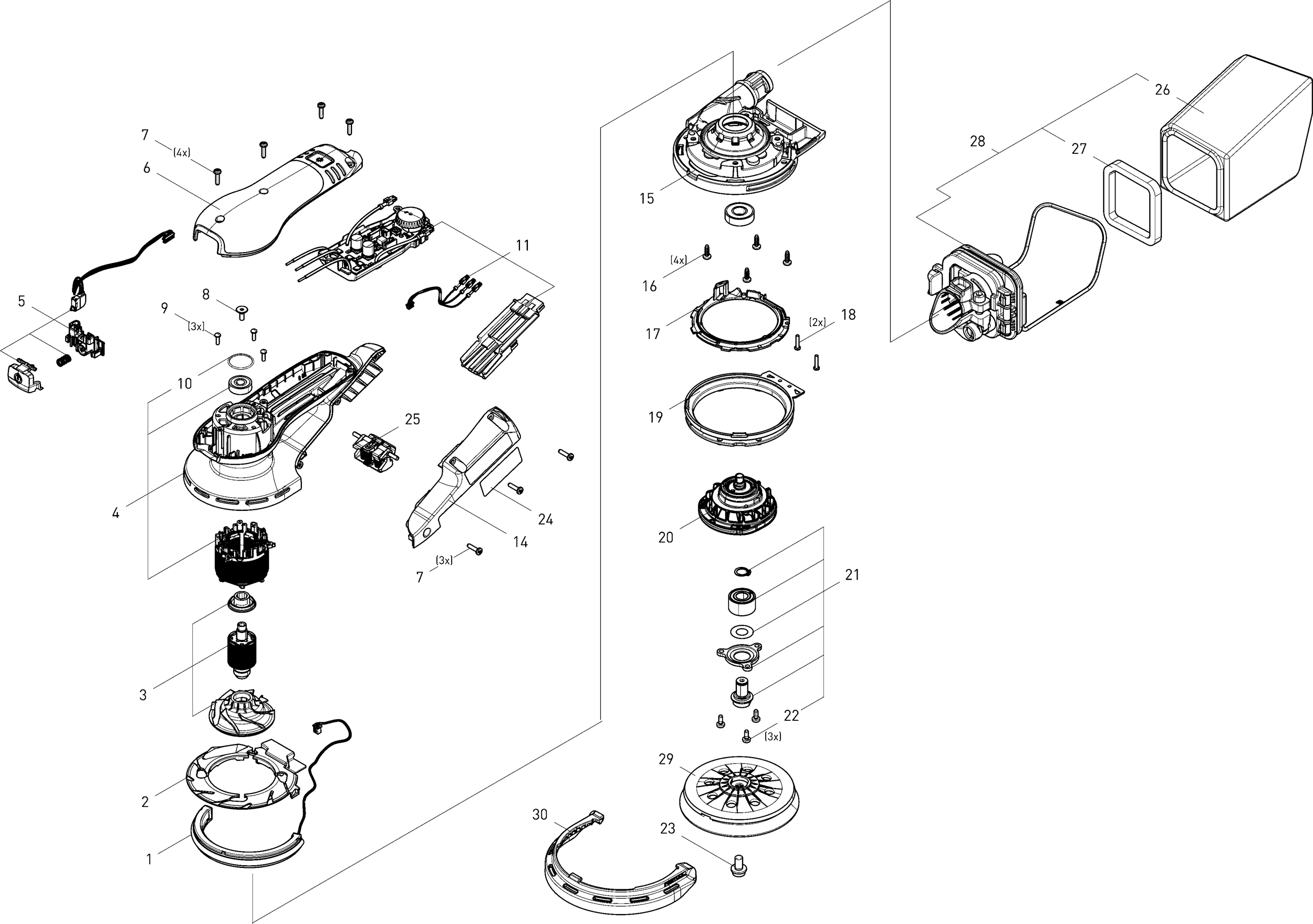

Technical drawing of model Festool 10679061 (ETSC2125)
Spare parts list of model Festool 10679061 (ETSC2125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| RAKING LIGHT ETSC 150/125 ET-BG | ||||
| 1 | 10795496 | 22.99 | 27.82 | |
| SHIELD ETSC 150/125 ET-BG | ||||
| 2 | 10795495 | 3.53 | 4.27 | |
| Rotor ETSC 150/125 ET-BG | ||||
| 3 | 10779091 | 65.70 | 79.50 | |
| Motor housing ETSC 150/125 ET-BG | ||||
| 4 | 10779090 | 60.98 | 73.79 | |
| SWITCH ETSC 150/125 ET-BG | ||||
| 5 | 10779093 | 14.40 | 17.42 | |
| Top handle ETSC 150/125 ET-BG | ||||
| 6 | 10779092 | 14.88 | 18.00 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 7 | 400468 | 1.51 | 1.83 | |
| Screw M 4x12 T15 | ||||
| 8 | 10006302 | 1.51 | 1.83 | |
| Oval head screw PT-3,0x10 Torx 10 | ||||
| 9 | 400231 | 1.51 | 1.83 | |
| O-ring 22x1,5-EPDM-70SHORE | ||||
| 10 | 10006642 | 1.51 | 1.83 | |
| ELECTRONICS ETSC 150/125 ET-BG EU | ||||
| 11 | 10779094 | 130.68 | 158.12 | |
| GUIDE PLATE ETSC2 / DTSC200 | ||||
| 12 | 10752918 | 1.58 | 1.91 | |
| GUIDE PLATE ETSC2 / DTSC200 | ||||
| 13 | 10756875 | 1.58 | 1.91 | |
| HOUSING COVER ETSC 150/125 ET-BG | ||||
| 14 | 10795494 | 8.50 | 10.28 | |
| BEARING FLANGE ETSC 150/125 ET-BG | ||||
| 15 | 10795498 | 48.40 | 58.56 | |
| Oval head screw PT-4,0x12-KT15 | ||||
| 16 | 219071 | 1.51 | 1.83 | |
| COVER DISC ETSC 150/125 ET-BG | ||||
| 17 | 10795497 | 3.17 | 3.84 | |
| Oval head screw PT-3,0x14-KT10 | ||||
| 18 | 400792 | 1.51 | 1.83 | |
| SLEEVE ETSC 150/125 ET-BG | ||||
| 19 | 10795501 | 20.93 | 25.33 | |
| EXTRACTION FAN ETSC 125 | ||||
| 20 | 10988126 | 83.97 | 101.60 | |
| Bearing ETS EC 125 | ||||
| 21 | 200017 | 74.17 | 89.75 | |
| Oval head screw DIN 7985-M4x10-8.8-PR30+ | ||||
| 22 | 228733 | 1.51 | 1.83 | |
| Ch. head screw ZUBEH R | ||||
| 23 | 401165 | 1.51 | 1.83 | |
| RATING PLATE ETSC 2 125 | ||||
| 24 | 10681267 | 1.37 | 1.66 | |
| LEVER ETSC 150/125 ET-BG | ||||
| 25 | 10961615 | 10.80 | 13.07 | |
| BAG ETSC 150/125 | ||||
| 26 | 10783974 | 30.61 | 37.04 | |
| SEAL ETSC 150/125 | ||||
| 27 | 10784010 | 3.60 | 4.36 | |
| STOFOPVANGZAK SB-LONGLIFE ETSC2 | ||||
| 28 | 578094 | 47.41 | 57.37 | |
| Sanding pad | ||||
| 29 | 492284 | 57.18 | 69.19 | |
| Sanding pad | ||||
| 29 | 492286 | 57.18 | 69.19 | |
| Sanding pad | ||||
| 29 | 492288 | 57.18 | 69.19 | |
| PROTECTOR PR ETSC 2 125 | ||||
| 30 | 578092 | 17.58 | 21.27 | |
