Here you will find all available parts and drawings of the 'Festool 10022936 (ETSC125Li3,1)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

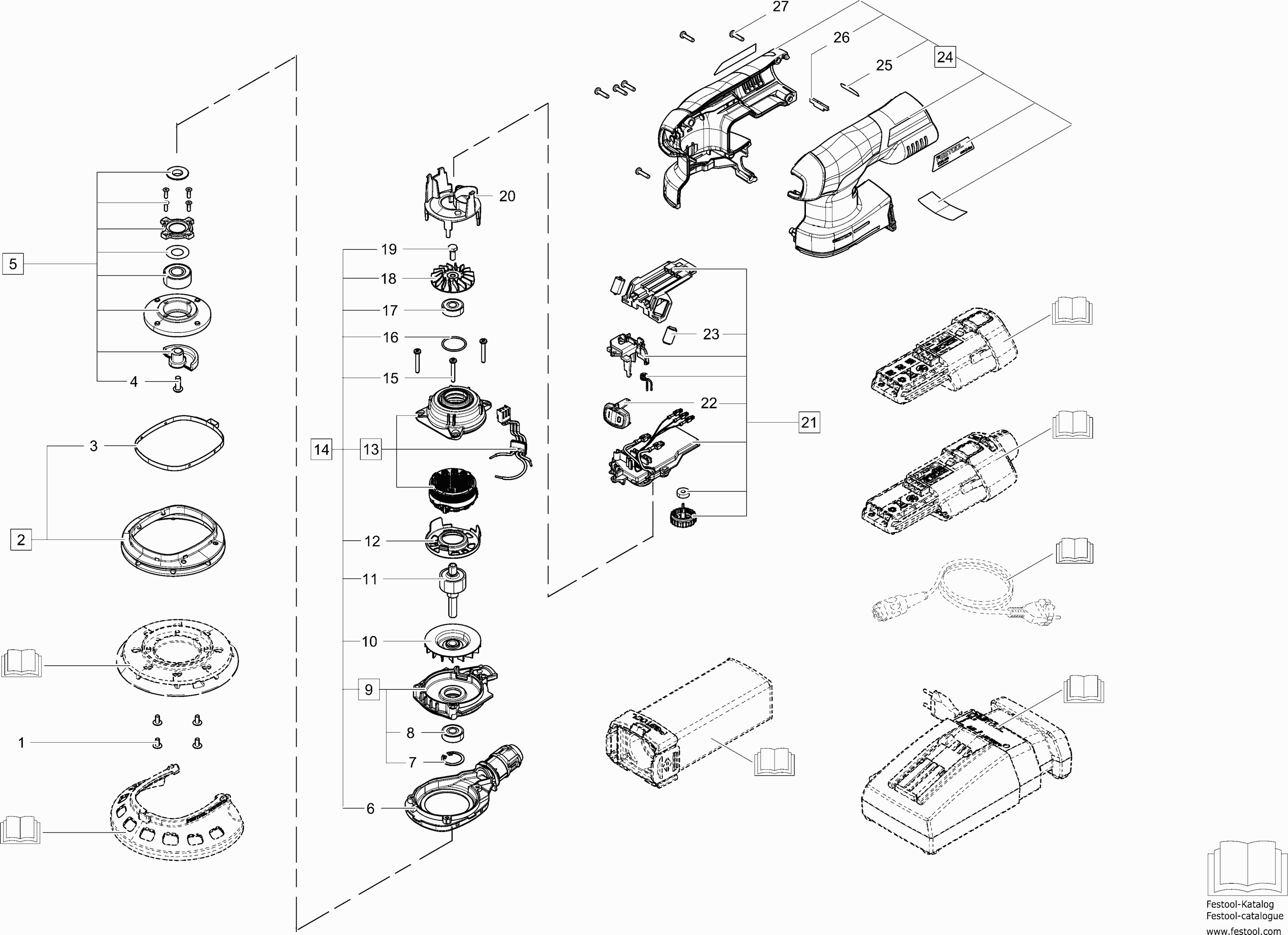

Technical drawing of model Festool 10022936 (ETSC125Li3,1)
Spare parts list of model Festool 10022936 (ETSC125Li3,1)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| C-h screw M4x8 10.9 verz. PR30 | ||||
| 1 | 401063 | 1.51 | 1.83 | |
| Collar ES 125 REQ | ||||
| 2 | 10037241 | 24.56 | 29.72 | |
| CLAMPING STRAP RS 400 | ||||
| 3 | 453707 | 11.02 | 13.33 | |
| Oval head screw DIN 7380 M5x14-10.9-PR80 | ||||
| 4 | 401150 | 3.82 | 4.62 | |
| Bearing flange ETS 125 R | ||||
| 5 | 201905 | 76.59 | 92.67 | |
| Extraction connector RTSC 400 | ||||
| 6 | 10602169 | 11.23 | 13.59 | |
| Extr. connector RTSC/DTSC/ETSC | ||||
| 6 | 10019199 | 10.22 | 12.37 | |
| Circlip DIN 472-22x1 | ||||
| 7 | 204471 | 1.51 | 1.83 | |
| Ball bearing 608 Z1D1 MC5E D8SL | ||||
| 8 | 400626 | 5.83 | 7.05 | |
| Flange RTSC/DTSC/ETSC | ||||
| 9 | 10037410 | 38.96 | 47.14 | |
| Extraction fan RTS 400 R | ||||
| 10 | 10680333 | 22.99 | 27.82 | |
| Afzuigventilator | ||||
| 10 | 10028628 | 22.99 | 27.82 | |
| Rotor RTSC/ETSC/DTSC | ||||
| 11 | 204024 | 70.18 | 84.92 | |
| Cover RTSC/DTSC/ETSC | ||||
| 12 | 10018459 | 2.09 | 2.53 | |
| Bearing cover RTSC/DTSC/ETSC | ||||
| 13 | 10037411 | 77.20 | 93.41 | |
| Drive unit RTSC/DTSC/ETSC | ||||
| 14 | 10037614 | 132.86 | 160.76 | |
| Oval head screw PT-3,5x25-KT15 | ||||
| 15 | 228725 | 1.51 | 1.83 | |
| O-ring 22x1,5-EPDM-70SHORE | ||||
| 16 | 479998 | 1.51 | 1.83 | |
| Ball bearing 608 Z1D1 MC5E D8SL | ||||
| 17 | 400626 | 5.83 | 7.05 | |
| Fan RTSC/DTSC/ETSC | ||||
| 18 | 10018487 | 9.65 | 11.68 | |
| Hex head cap sc DIN933 M5x12 8.8 A3F | ||||
| 19 | 10023324 | 1.51 | 1.83 | |
| Air guide washe RTSC/DTSC/ETSC | ||||
| 20 | 10018638 | 2.02 | 2.44 | |
| Electronics RTSC/DTSC/ETSC | ||||
| 21 | 10037413 | 72.12 | 87.27 | |
| Switching jack RTSC/DTSC/ETSC | ||||
| 22 | 10020290 | 4.25 | 5.14 | |
| spring rubber-b RTSC/DTSC/ETSC | ||||
| 23 | 10020282 | 1.73 | 2.09 | |
| Housing set RTSC/DTSC/ETSC | ||||
| 24 | 10037414 | 43.32 | 52.42 | |
| Label RTSC/DTSC/ETSC EC-TEC | ||||
| 25 | 10026311 | 2.23 | 2.70 | |
| Limit plate RTSC/DTSC/ETSC | ||||
| 26 | 10027023 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 27 | 400468 | 1.51 | 1.83 | |
