Here you will find all available parts and drawings of the 'Festool 201416 (ETS125REQ)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

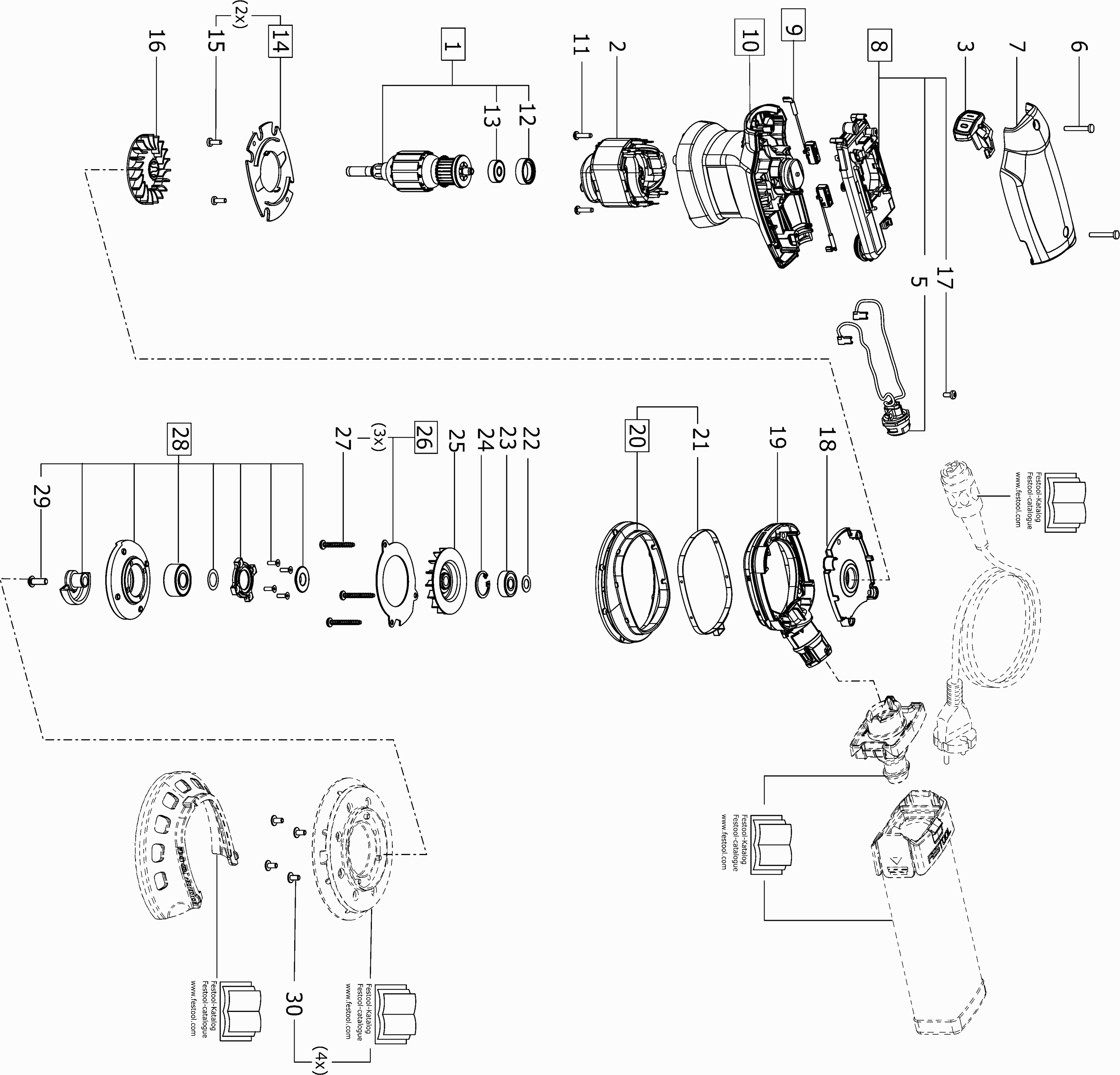

Technical drawing of model Festool 201416 (ETS125REQ)
Spare parts list of model Festool 201416 (ETS125REQ)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature RTS 400 R 230V | ||||
| 1 | 201896 | 80.22 | 97.07 | |
| Field assembly RTS 400 R 230V | ||||
| 2 | 201898 | 45.62 | 55.20 | |
| Switching jack RTS 400 REQ | ||||
| 3 | 10021901 | 4.61 | 5.58 | |
| Socket housing RTS 400 R | ||||
| 5 | 708213 | 13.13 | 15.89 | |
| Oval head screw PT-3,5x25-KT15 | ||||
| 6 | 219068 | 1.51 | 1.83 | |
| Cap RTS 400 REQ | ||||
| 7 | 10021835 | 11.69 | 14.14 | |
| Electronics RTS 400 R 230V | ||||
| 8 | 201900 | 36.66 | 44.36 | |
| Brush holder with carbon (pair) 230V | ||||
| 9 | 201902 | 17.30 | 20.93 | |
| Casing box RTSR/DTSR/ETSR | ||||
| 10 | 202388 | 40.17 | 48.61 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 11 | 228584 | 1.51 | 1.83 | |
| Rubber ring RS 400 | ||||
| 12 | 450508 | 1.51 | 1.83 | |
| Ball bearing 626 DD M5MTLY 121 | ||||
| 13 | 228672 | 6.79 | 8.22 | |
| INSULATION PLAT RS 400 ET-GR. | ||||
| 14 | 489213 | 18.27 | 22.11 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 15 | 219031 | 7.32 | 8.86 | |
| FAN RTS 400 | ||||
| 16 | 469328 | 2.23 | 2.70 | |
| Oval head screw PT-3,5x8-T15 | ||||
| 17 | 219047 | 1.51 | 1.83 | |
| INSERT | ||||
| 18 | 10729769 | 14.52 | 17.57 | |
| Bearing Cover RTS 400 R | ||||
| 19 | 10602127 | 14.04 | 16.99 | |
| Collar ES 125 REQ | ||||
| 20 | 10037241 | 24.56 | 29.72 | |
| CLAMPING STRAP RS 400 | ||||
| 21 | 453707 | 11.02 | 13.33 | |
| Shim ring DIN 988-8x14x0,5 | ||||
| 22 | 400884 | 1.51 | 1.83 | |
| Ball bearing 608 DD1 MC3 DIN625 NSK | ||||
| 23 | 401525 | 5.18 | 6.27 | |
| Circlip DIN 472-22x1 | ||||
| 24 | 204471 | 1.51 | 1.83 | |
| Extraction fan RTS 400 R | ||||
| 25 | 10680333 | 22.99 | 27.82 | |
| Afzuigventilator | ||||
| 25 | 10028628 | 22.99 | 27.82 | |
| PLATE RS 400 | ||||
| 26 | 489185 | 25.17 | 30.46 | |
| Oval head screw PT-4,0x30-KT15 | ||||
| 27 | 400528 | 1.51 | 1.83 | |
| Bearing flange ETS 125 R | ||||
| 28 | 201905 | 76.59 | 92.67 | |
| Oval head screw DIN 7380 M5x14-10.9-PR80 | ||||
| 29 | 401150 | 3.82 | 4.62 | |
| C-h screw M4x8 10.9 verz. PR30 | ||||
| 30 | 401063 | 1.51 | 1.83 | |
