Here you will find all available parts and drawings of the 'Festool 492324 (ES125EQ230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

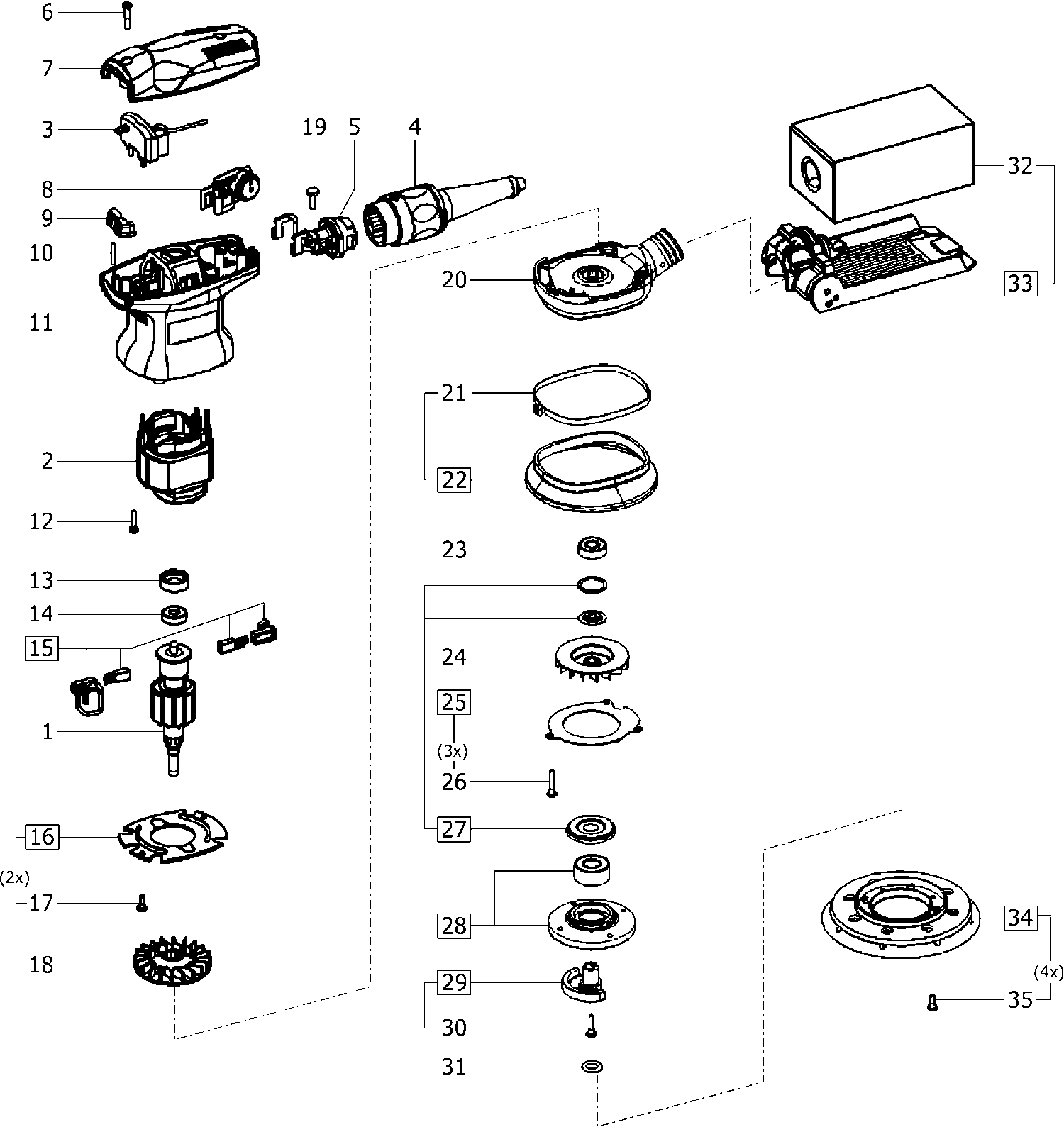

Technical drawing of model Festool 492324 (ES125EQ230V)
Spare parts list of model Festool 492324 (ES125EQ230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE COMPL. ES 125 230V | ||||
| 1 | 493165 | 80.22 | 97.07 | |
| FELDPAKET 230V ES 125 ET-BAUGRU | ||||
| 2 | 489224 | 53.24 | 64.42 | |
| SWITCH MODUL RS 4-97 ET-GRUPPE | ||||
| 3 | 488631 | 15.85 | 19.18 | |
| PLUG IT-KABEL H05 RN-F-4 | ||||
| 4 | 203914 | 24.00 | 29.04 | |
| Socket housing LS 130 EQ VOLLST. | ||||
| 5 | 489925 | 10.15 | 12.28 | |
| Oval head screw PT-3,5x25-KT15 | ||||
| 6 | 228725 | 1.51 | 1.83 | |
| CAP RS 400 EQ COMPLETE | ||||
| 7 | 491607 | 6.77 | 8.19 | |
| ELECTRONIC CARD RS 4-97 ET-GRUPPE | ||||
| 8 | 488630 | 36.30 | 43.92 | |
| TRIGGER LEVER RS 400 | ||||
| 9 | 450967 | 2.45 | 2.96 | |
| CYLINDER PIN 3 M6x16 DIN 6325 | ||||
| 10 | 223518 | 1.51 | 1.83 | |
| HOUSING RS 400 EQ | ||||
| 11 | 463618 | 11.88 | 14.37 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 12 | 228584 | 1.51 | 1.83 | |
| Rubber ring RS 400 | ||||
| 13 | 450508 | 1.51 | 1.83 | |
| Ball bearing 626 DD M5MTLY 121 | ||||
| 14 | 228672 | 6.79 | 8.22 | |
| CARBON HOLDER ES 150 | ||||
| 15 | 489632 | 11.74 | 14.21 | |
| INSULATION PLAT RS 400 ET-GR. | ||||
| 16 | 489213 | 18.27 | 22.11 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 17 | 219031 | 7.32 | 8.86 | |
| FAN RS 400 | ||||
| 18 | 450138 | 2.74 | 3.32 | |
| Oval head screw PT-3,5x10-KT15 | ||||
| 19 | 219031 | 7.32 | 8.86 | |
| No longer available, no replacement | ||||
| 20 | 450115 | |||
| CLAMPING STRAP RS 400 | ||||
| 21 | 453707 | 11.02 | 13.33 | |
| SLEEVE ES 125 E | ||||
| 22 | 489190 | 24.56 | 29.72 | |
| Ball bearing 608 DD1 MC3 DIN625 NSK | ||||
| 23 | 401525 | 5.18 | 6.27 | |
| No longer available, no replacement | ||||
| 24 | 450129 | |||
| PLATE RS 400 | ||||
| 25 | 489185 | 25.17 | 30.46 | |
| Oval head screw PT-4,0x30-KT15 | ||||
| 26 | 400528 | 1.51 | 1.83 | |
| WASHER RS 400 | ||||
| 27 | 489186 | 17.18 | 20.79 | |
| Flange ETS 125 E ET-BG | ||||
| 28 | 499233 | 75.26 | 91.06 | |
| ECCENTRIC BALAN RS 400 ET-GR. | ||||
| 29 | 489214 | 38.96 | 47.14 | |
| Oval head screw DIN 7985-M4x12-8.8-PR80+ | ||||
| 30 | 400290 | 1.51 | 1.83 | |
| No longer available, no replacement | ||||
| 31 | 400585 | |||
| Turbo filter bag | ||||
| 32 | 489128 | 11.00 | 13.31 | |
| TURBOFILTERSET TFS-RS 400 | ||||
| 33 | 489129 | 38.30 | 46.34 | |
| Sanding pad | ||||
| 34 | 492280 | 38.00 | 45.98 | |
| Oval head screw M4x10-TAPTITE-KT15 | ||||
| 35 | 228738 | 1.51 | 1.83 | |
