Here you will find all available parts and drawings of the 'Festool 10008100 (EHL65EQ230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

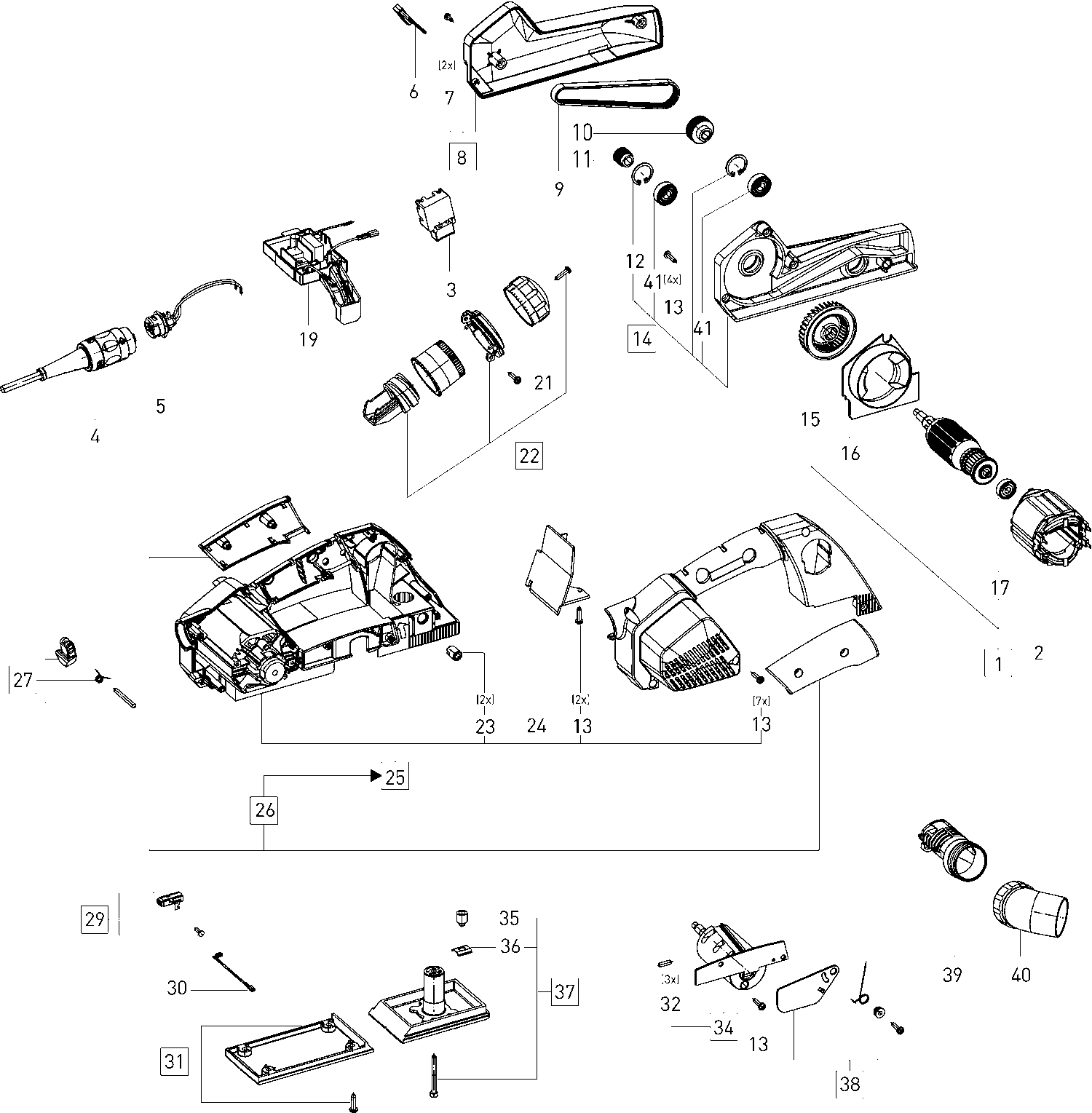

Technical drawing of model Festool 10008100 (EHL65EQ230V)
Spare parts list of model Festool 10008100 (EHL65EQ230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature EHL 65 | ||||
| 1 | 499676 | 90.15 | 109.08 | |
| FIELD COIL EHL 65 EB 230V | ||||
| 2 | 495162 | 43.44 | 52.56 | |
| Switch EHL 65 EQ | ||||
| 3 | 499571 | 15.85 | 19.18 | |
| PLUG IT-KABEL H05 RN-F-4 | ||||
| 4 | 203914 | 24.00 | 29.04 | |
| Socket housing EHL 65 EQ | ||||
| 5 | 721117 | 14.16 | 17.13 | |
| Hexagon wrench HL 850 E SW 2 | ||||
| 6 | 439803 | 5.83 | 7.05 | |
| Oval head screw M3x8-TAPTITE-KOMBI-TORX | ||||
| 7 | 228743 | 1.51 | 1.83 | |
| Belt cover EHL 65 | ||||
| 8 | 499673 | 12.71 | 15.38 | |
| RIPPED V-BELT EHL 65 EB | ||||
| 9 | 448235 | 19.60 | 23.72 | |
| DRIVE PULLEY EHL 65 EB | ||||
| 10 | 448928 | 14.76 | 17.86 | |
| DRIVE PULLEY EHL 65 EB | ||||
| 11 | 448927 | 11.88 | 14.37 | |
| Circlip DIN 472-22x1 | ||||
| 12 | 204471 | 1.51 | 1.83 | |
| Oval head screw PT-3,5x14-KT15 | ||||
| 13 | 400468 | 1.51 | 1.83 | |
| Drive pulley EHL 65 | ||||
| 14 | 499674 | 44.04 | 53.29 | |
| Fan EHL 65 EB | ||||
| 15 | 444869 | 3.17 | 3.84 | |
| Air guide washe EHL 65 EB | ||||
| 16 | 444870 | 2.66 | 3.22 | |
| BALL BEARING EHL 65 EB | ||||
| 17 | 400230 | 6.55 | 7.93 | |
| Electronics EHL 65 EQ 230V ET-BG | ||||
| 19 | 205138 | 63.04 | 76.28 | |
| Scale ring EHL 65 EQ | ||||
| 21 | 10005756 | 11.95 | 14.46 | |
| Bearing ring EHL 65 | ||||
| 22 | 499675 | 21.78 | 26.35 | |
| QUICKSERT M6x14 | ||||
| 23 | 448930 | 3.82 | 4.62 | |
| Air duct EHL 65 EB | ||||
| 24 | 446299 | 2.81 | 3.40 | |
| Casing box EHL 65 EQ ET-BG | ||||
| 25 | 205211 | 49.85 | 60.32 | |
| Pistol stock EHL 65 | ||||
| 26 | 499683 | 14.04 | 16.99 | |
| Support EHL 65 | ||||
| 27 | 499677 | 10.30 | 12.46 | |
| Brush EHL 65 | ||||
| 29 | 499679 | 11.52 | 13.94 | |
| Flexible lead EHL 65 | ||||
| 30 | 721116 | 4.82 | 5.83 | |
| Planer foot EHL 65 | ||||
| 31 | 499680 | 27.35 | 33.09 | |
| THREADED PIN M4x12 (3x) 10.9 Leitz | ||||
| 32 | 462187 | 3.53 | 4.27 | |
| Planing head EHL 65 | ||||
| 34 | 10009233 | 146.17 | 176.87 | |
| Nut EHL 65 EB | ||||
| 35 | 446297 | 7.42 | 8.98 | |
| Plate spring EHL 65 EB | ||||
| 36 | 446295 | 1.58 | 1.91 | |
| Adjusting table EHL 65 | ||||
| 37 | 499682 | 39.57 | 47.88 | |
| Guard plate EHL 65 | ||||
| 38 | 499685 | 13.43 | 16.25 | |
| Chip ejection EHL 65 EB | ||||
| 39 | 444883 | 3.38 | 4.09 | |
| ANGLE PIECE EHL 65 EB | ||||
| 40 | 448785 | 2.23 | 2.70 | |
| BALL BEARING EHL 65 EB | ||||
| 41 | 400225 | 6.12 | 7.41 | |
