Here you will find all available parts and drawings of the 'Festool 495760 (EAAEW/DWTURBO/A-EU)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

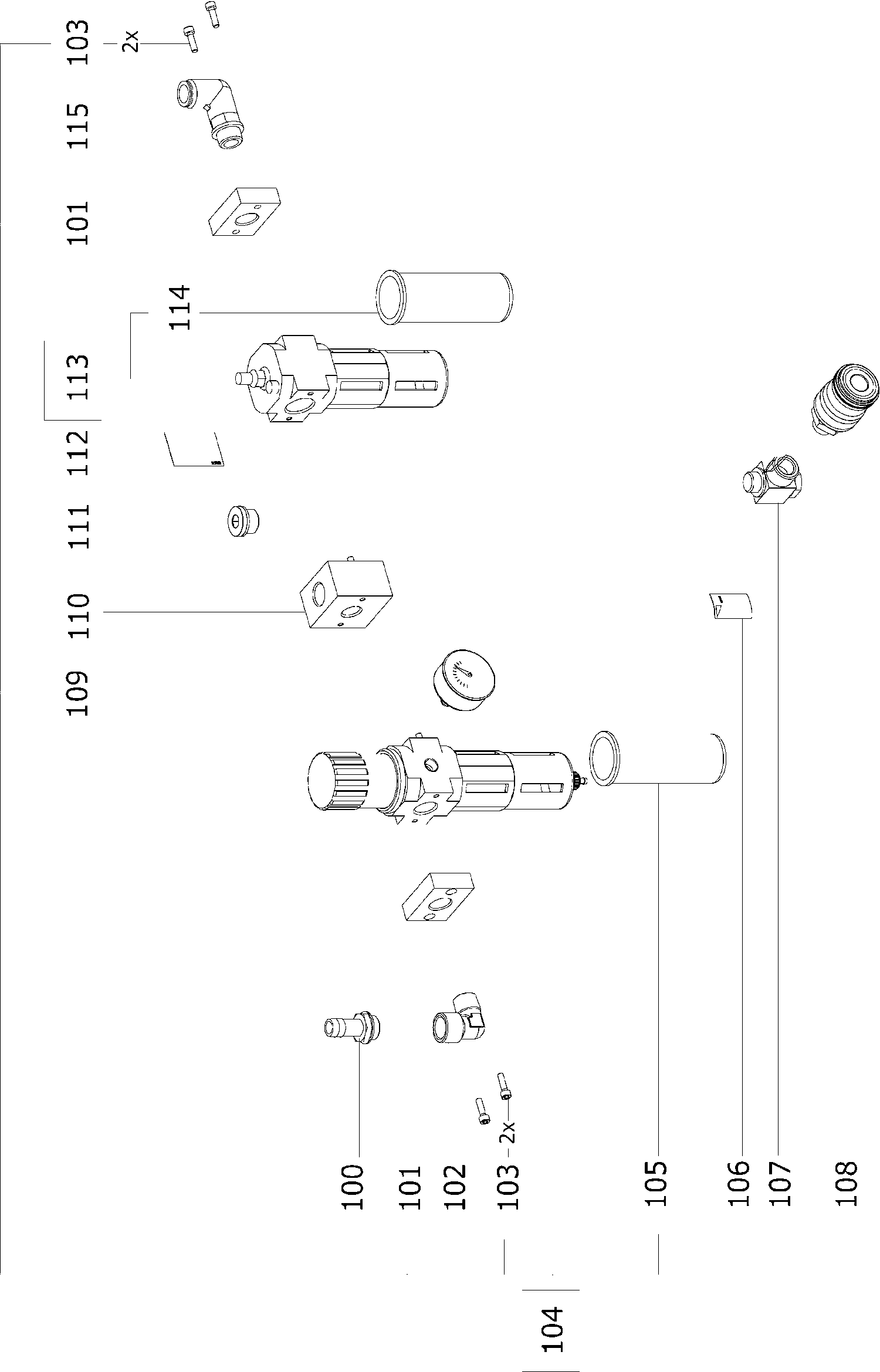

Technical drawing of model Festool 495760 (EAAEW/DWTURBO/A-EU)
Spare parts list of model Festool 495760 (EAAEW/DWTURBO/A-EU)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw PT-4,0x16-KT15 | ||||
| 1 | 228713 | 5.94 | 7.19 | |
| Ch. head screw DIN 912-M5x8-8.8 | ||||
| 2 | 204482 | 1.51 | 1.83 | |
| Back wall ET-BG EAA | ||||
| 3 | 496741 | 83.73 | 101.31 | |
| Oval head screw PT 3,0x20 T 10 | ||||
| 4 | 467650 | 2.23 | 2.70 | |
| Swivel elbow QSML-M7-4 | ||||
| 5 | 475839 | 11.48 | 13.89 | |
| Valve ET-BG EAA | ||||
| 6 | 496714 | 138.79 | 167.94 | |
| Male connector QSM-M7-4-I | ||||
| 7 | 475157 | 14.64 | 17.71 | |
| CABLE W.CONNECT 3x1,5 QMM H07RN-F ET-BG | ||||
| 8 | 200834 | 24.81 | 30.02 | |
| Flat gasket GSA 200-4 ET-BG | ||||
| 9 | 200610 | 17.79 | 21.53 | |
| Hose ET-BG PUN 16x11,00/600 | ||||
| 10 | 479118 | 25.53 | 30.89 | |
| Hose ET-BG PUN 12x2,00/350 | ||||
| 11 | 479117 | 16.34 | 19.77 | |
| Hose ET-BG PUN 4x0,75/170 | ||||
| 12 | 479119 | 13.00 | 15.73 | |
| Hose ET-BG PUN 4x0,75/340 | ||||
| 13 | 479120 | 10.94 | 13.24 | |
| Cable harness EAA EW/DW Magnetv. ET-BG | ||||
| 14 | 200646 | 91.48 | 110.69 | |
| Microswitch EAA spare-parts group | ||||
| 15 | 496740 | 19.97 | 24.16 | |
| Hexagon nut DIN 934-M4-08 | ||||
| 16 | 200715 | 1.51 | 1.83 | |
| Serrated washer DIN 6797-A-4,3 | ||||
| 17 | 200762 | 1.51 | 1.83 | |
| Disc DIN 125-A-4,3-140 HV | ||||
| 18 | 200576 | 1.51 | 1.83 | |
| Pan-head Parker DIN 7981-ST2,2x13-ST-FZ | ||||
| 19 | 401042 | 2.23 | 2.70 | |
| Plug lead EAA vollst. ET-BG | ||||
| 20 | 200835 | 48.16 | 58.27 | |
| Flat gasket GSSNA 300-2 ET-BG | ||||
| 21 | 200611 | 17.79 | 21.53 | |
| Casing box ET-BG EAA | ||||
| 22 | 496716 | 70.54 | 85.35 | |
| Adhesive label EAA EW/DW TURBO/A l | ||||
| 24 | 476118 | 12.58 | 15.22 | |
| Cable harness DL_ET-BG EAA | ||||
| 25 | 496717 | 111.32 | 134.70 | |
| Flat gasket EAA EW/DW TURBO/A | ||||
| 26 | 475100 | 5.18 | 6.27 | |
| Clamp rail EAA EW/DW TURBO/A | ||||
| 27 | 475079 | 25.65 | 31.04 | |
| Seal 6x6 Rechteckprofil ET-BG | ||||
| 28 | 200603 | 20.33 | 24.60 | |
| Oval head screw PT-4,0x16-KT15 | ||||
| 29 | 228713 | 5.94 | 7.19 | |
| Oval head screw PT-4,0x25-T15 | ||||
| 29 | 400695 | 1.51 | 1.83 | |
| Oval head screw PT-4,0x30-KT15 | ||||
| 30 | 400528 | 1.51 | 1.83 | |
| Module Druckluft_ET-BG EAA | ||||
| 31 | 496713 | 132.13 | 159.88 | |
| Cable clamp SYMMETRIC 70 | ||||
| 32 | 761618 | 1.51 | 1.83 | |
| Screw M6x80 DIN 912 8.8 verz. | ||||
| 33 | 718085 | 1.66 | 2.01 | |
| Disc DIN 7349-6,4 | ||||
| 34 | 402935 | 1.51 | 1.83 | |
| Clip EAA EW/DW TURBO/A | ||||
| 35 | 475080 | 22.99 | 27.82 | |
| Edge protection EAA EW/DW Turbo A ET-BG | ||||
| 37 | 200626 | 40.05 | 48.46 | |
| Insulation EAA EW/DW TURBO/A | ||||
| 38 | 475747 | 13.07 | 15.81 | |
| Clamp rail 3-polig 300V/16A | ||||
| 39 | 452099 | 7.56 | 9.15 | |
| Electronics ET-BG EAA | ||||
| 40 | 496715 | 124.75 | 150.95 | |
| Plate EAA EW/DW Turbo/A ET-BG | ||||
| 41 | 200605 | 31.34 | 37.92 | |
| Adhesive label EAA EW/DW TURBO/A Gewich | ||||
| 42 | 475728 | 13.43 | 16.25 | |
| Screw M4x14 DIN 912 | ||||
| 43 | 400854 | 1.51 | 1.83 | |
| Ch. head screw DIN 912-M6x25-10.9 | ||||
| 45 | 200128 | 1.51 | 1.83 | |
| Cap ASA 5000 | ||||
| 46 | 463766 | 7.06 | 8.54 | |
| Tool holder EAA ET-BG | ||||
| 47 | 203792 | 60.86 | 73.64 | |
| Threaded rail EAA EW/DW TURBO/A | ||||
| 48 | 475085 | 23.35 | 28.25 | |
| No information available, not orderable | ||||
| 100 | xxx | |||
| Conn. piece EAA links ET-BG | ||||
| 101 | 203380 | 8.93 | 10.81 | |
| Angle piece R1/axG1/2i ET-BG | ||||
| 102 | 200647 | 30.25 | 36.60 | |
| Cheese head scr M5x12 DIN 912 | ||||
| 103 | 401037 | 3.10 | 3.75 | |
| Maintenance uni ET-BG EAA | ||||
| 104 | 496712 | 141.81 | 171.59 | |
| No information available, not orderable | ||||
| 105 | 477312 | |||
| Sticker EAA EW/DW | ||||
| 106 | 477136 | 15.13 | 18.31 | |
| L-piece LJK-1/4 ET-BG | ||||
| 107 | 200375 | 28.68 | 34.70 | |
| Pressure gauge MA-50-16-1/4 Festo ET-BG | ||||
| 109 | 200652 | 67.64 | 81.84 | |
| Manifold FRZ-D-MIDI ET-BG | ||||
| 110 | 200842 | 71.87 | 86.96 | |
| Blanking plug | ||||
| 111 | 003571 | 6.91 | 8.36 | |
| Welsh plug B 1/2 Festo 3571 | ||||
| 111 | 3571 | 6.07 | 7.34 | |
| Adhesive label VE | ||||
| 112 | 476802 | 15.00 | 18.15 | |
| Lubricator LOE-D-MIDI Festo ET-BG | ||||
| 113 | 200631 | 109.63 | 132.65 | |
| Viewing glass EAA Festo 120539 | ||||
| 114 | 477313 | 41.38 | 50.07 | |
| Swivel elbow QSLG 1/2-16 Festo ET-BG | ||||
| 115 | 200607 | 75.87 | 91.80 | |
| Conn. piece EAA rechts ET-BG | ||||
| 116 | 203381 | 9.65 | 11.68 | |
| No information available, not orderable | ||||
| 200 | xxx | |||
| Male connector EAA EW/DW TURBO/A | ||||
| 201 | 475163 | 27.10 | 32.79 | |
| No information available, not orderable | ||||
| 202 | xxx | |||
| Piston CT Air pressure sch. ET-BG | ||||
| 203 | 201547 | 21.90 | 26.50 | |
| Manifold EAA EW/DW TURBO/A | ||||
| 204 | 475167 | 81.31 | 98.39 | |
| Male connector EAA EW/DW TURBO/A | ||||
| 205 | 475162 | 19.60 | 23.72 | |
| Cover EAA EW/DW TURBO/A | ||||
| 206 | 475516 | 13.79 | 16.69 | |
| Seal OK-1/4 Festo ET-BG | ||||
| 207 | 200613 | 18.63 | 22.54 | |
| Cable harness EAA vollst. ET-BG | ||||
| 300 | 200637 | 77.32 | 93.56 | |
| Case lid ET-BG EAA | ||||
| 301 | 496724 | 56.14 | 67.93 | |
| Seal EAA EW/DW Steckd. ET-BG | ||||
| 302 | 200630 | 13.31 | 16.11 | |
| Plug socket EAA EW/DW Turbo/A ET-BG | ||||
| 303 | 200629 | 30.37 | 36.75 | |
| Galvanized screw PT-4,0x20-KT15 ET-BG | ||||
| 304 | 10737259 | 1.94 | 2.35 | |
| Switch CT AUTO 4-polig ET-BG | ||||
| 305 | 200505 | 19.97 | 24.16 | |
| Galvanized Screw DIN 965-M4x8-6.8 ET-BG | ||||
| 306 | 10737121 | 1.94 | 2.35 | |
| O-ring 9.3x2.4-NBR ET-BG | ||||
| 307 | 10737044 | 1.94 | 2.35 | |
| Adhesive label CS 70 EB | ||||
| 308 | 450091 | 12.74 | 15.42 | |
| Rotary knob D45 CT MAN/AUTO ET-BG | ||||
| 309 | 200511 | 26.38 | 31.92 | |
| Oval head screw PT-3,5x14-T15 | ||||
| 310 | 452450 | 1.66 | 2.01 | |
| No information available, not orderable | ||||
| 311 | 200636 | |||
| Galvanized screw PT-4,0x20-KT15 ET-BG | ||||
| 312 | 10737259 | 1.94 | 2.35 | |
| Seal Y-Verteiler EAA ET-BG | ||||
| 400 | 201550 | 26.14 | 31.63 | |
| Y-distributor EAA EW/DW Turbo/A ET-BG | ||||
| 401 | 200596 | 38.24 | 46.27 | |
| Packing cord EAA EW/DW Turbo/A ET-BG | ||||
| 402 | 200622 | 26.74 | 32.36 | |
| Plate ET-BG EAA | ||||
| 403 | 496718 | 46.71 | 56.52 | |
| Sealing ring EAA EW SATZ | ||||
| 404 | 496208 | 38.36 | 46.42 | |
| Slide ET-BG EAA | ||||
| 405 | 496719 | 48.28 | 58.42 | |
| Plate ET-BG EAA | ||||
| 406 | 496723 | 63.40 | 76.71 | |
| Cover EAA EW/DW Turbo/A ET-BG | ||||
| 407 | 200624 | 5.69 | 6.88 | |
| Adhesive label EAA EW/DW Turbo S. ET-BG | ||||
| 408 | 200625 | 27.59 | 33.38 | |
| Coupler ERG 071 172 G3/8 ET-BG | ||||
| 409 | 200609 | 72.72 | 87.99 | |
| Flexible lead EAA EW/DW Erdung VP | ||||
| 410 | 203061 | 15.25 | 18.45 | |
| Interlock EAA EW/DW Turbo ET-BG | ||||
| 411 | 200833 | 51.91 | 62.81 | |
| Contact bracket EAA EW/DW Turbo/A ET-BG | ||||
| 412 | 200604 | 22.02 | 26.64 | |
| Ch. head screw DIN 912-M5x25-8.8 | ||||
| 413 | 200048 | 1.51 | 1.83 | |
| Disc DIN 9021-5,3-100 HV | ||||
| 414 | 418269 | 1.51 | 1.83 | |
| Cylinder ET-BG EAA | ||||
| 415 | 496721 | 127.05 | 153.73 | |
| Male connector QSM-M5-4 | ||||
| 416 | 475156 | 15.00 | 18.15 | |
| Disc DIN 9021-6,4-100 HV | ||||
| 417 | 228546 | 1.51 | 1.83 | |
| O-ring 7,52x3,53 ORAR 00203 | ||||
| 418 | 476245 | 11.48 | 13.89 | |
| Collet 8x1 ET-BG | ||||
| 419 | 200606 | 21.18 | 25.63 | |
