Here you will find all available parts and drawings of the 'Festool 205054 ( DWC18-2500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

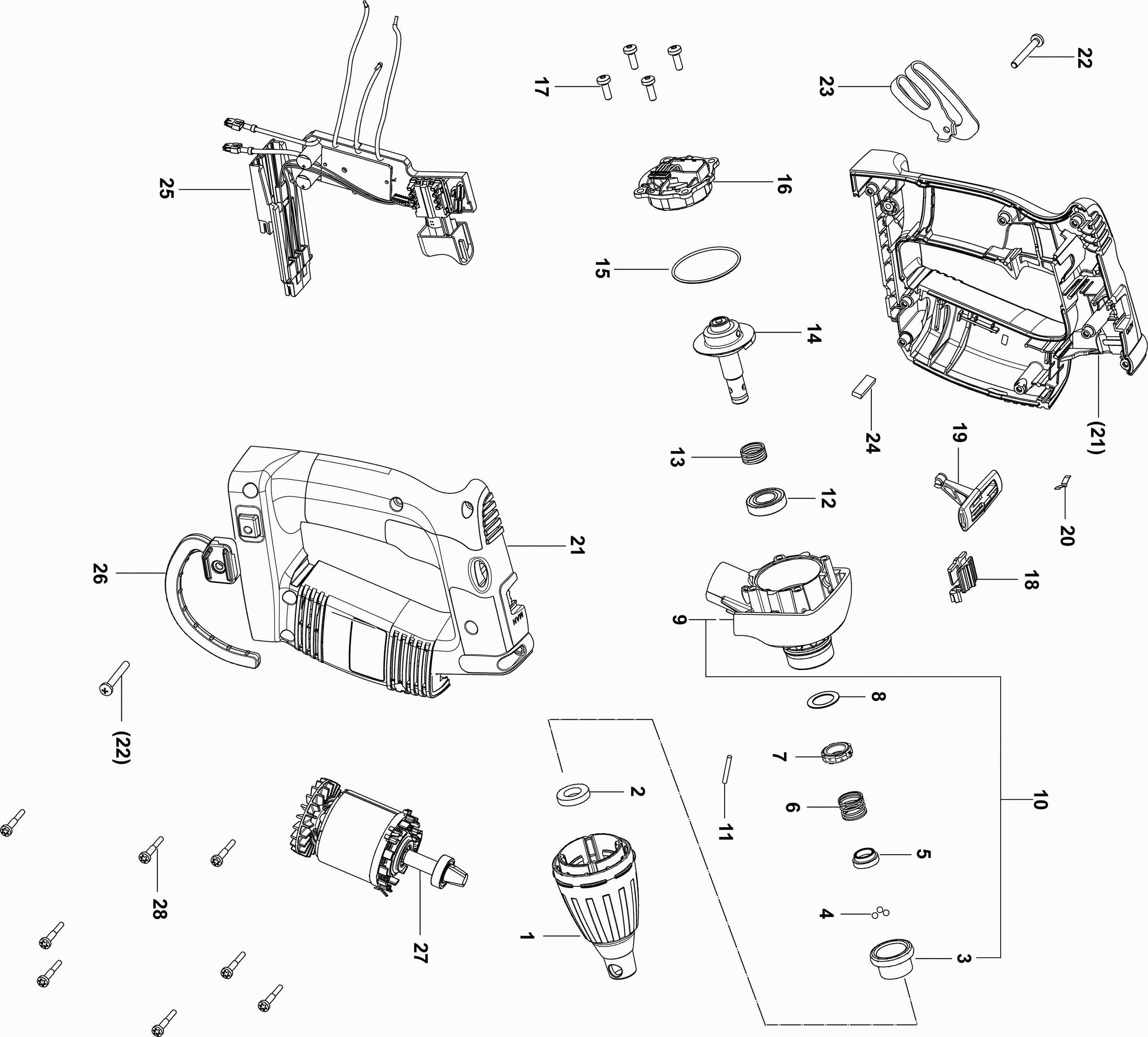

Technical drawing of model Festool 205054 ( DWC18-2500 )
Spare parts list of model Festool 205054 ( DWC18-2500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Depth stop DWC 18 | ||||
| 1 | 767822 | 17.79 | 21.53 | |
| Felt washer DWP | ||||
| 2 | 473231 | 1.39 | 1.68 | |
| Collet DWP | ||||
| 3 | 477767 | 2.64 | 3.19 | |
| Ball 3.5-40 CSN 02 3680 | ||||
| 4 | 614484 | 1.39 | 1.68 | |
| Collet DWP | ||||
| 5 | 477092 | 2.24 | 2.71 | |
| Spring DWP | ||||
| 6 | 472940 | 1.85 | 2.24 | |
| Felt washer DWP ET-BG | ||||
| 7 | 496827 | 3.89 | 4.71 | |
| Shim 12x18x0.5 | ||||
| 8 | 761529 | 1.92 | 2.32 | |
| Gear box DWC 18 | ||||
| 9 | 767818 | 47.43 | 57.39 | |
| Gear housing DWC 18-2500 Li 4,2 ET-BG | ||||
| 10 | 769372 | 52.03 | 62.96 | |
| Cylinder pin DIN 7-2,5m6x20-ST | ||||
| 11 | 478178 | 1.39 | 1.68 | |
| Ball bearing 6901LLU C3 V2 L21 | ||||
| 12 | 477292 | 8.52 | 10.31 | |
| Spring DWP | ||||
| 13 | 476613 | 2.71 | 3.28 | |
| Output shaft DWC 18-2500 DEC Li ET-BG | ||||
| 14 | 767856 | 74.42 | 90.05 | |
| O-ring 40x1,5-NBR | ||||
| 15 | 761594 | 1.39 | 1.68 | |
| Electronics DWC 18 | ||||
| 16 | 767845 | 37.39 | 45.24 | |
| Oval head screw M4x12 TAPTITE | ||||
| 17 | 400647 | 1.39 | 1.68 | |
| Slide DWC 18 | ||||
| 18 | 767836 | 4.22 | 5.11 | |
| Change-over swi BHC | ||||
| 19 | 767835 | 4.09 | 4.95 | |
| Plate spring TDK 12 | ||||
| 20 | 457753 | 1.39 | 1.68 | |
| Housing set DWC 18-2500 DEC Li | ||||
| 21 | 767857 | 35.21 | 42.60 | |
| Oval head screw M 4x30 ISO7045 PR30 | ||||
| 22 | 701232 | 2.18 | 2.64 | |
| Clamp DWP | ||||
| 23 | 475437 | 13.07 | 15.81 | |
| Solenoid PDC/DRC/IDC | ||||
| 24 | 475515 | 3.62 | 4.38 | |
| Electronics DWC 18-2500 ET-BG | ||||
| 25 | 720932 | 152.70 | 184.77 | |
| Hook DWC 18 | ||||
| 26 | 767838 | 3.70 | 4.48 | |
| Motor DWC 18-2500 DEC Li | ||||
| 27 | 767855 | 175.69 | 212.58 | |
| Gear DWC 18 Kpl. ET-GB | ||||
| 29 | 203851 | 121.12 | 146.56 | |
