Here you will find all available parts and drawings of the 'Festool 493488 ( DWARSAANSLAGQA-DF500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

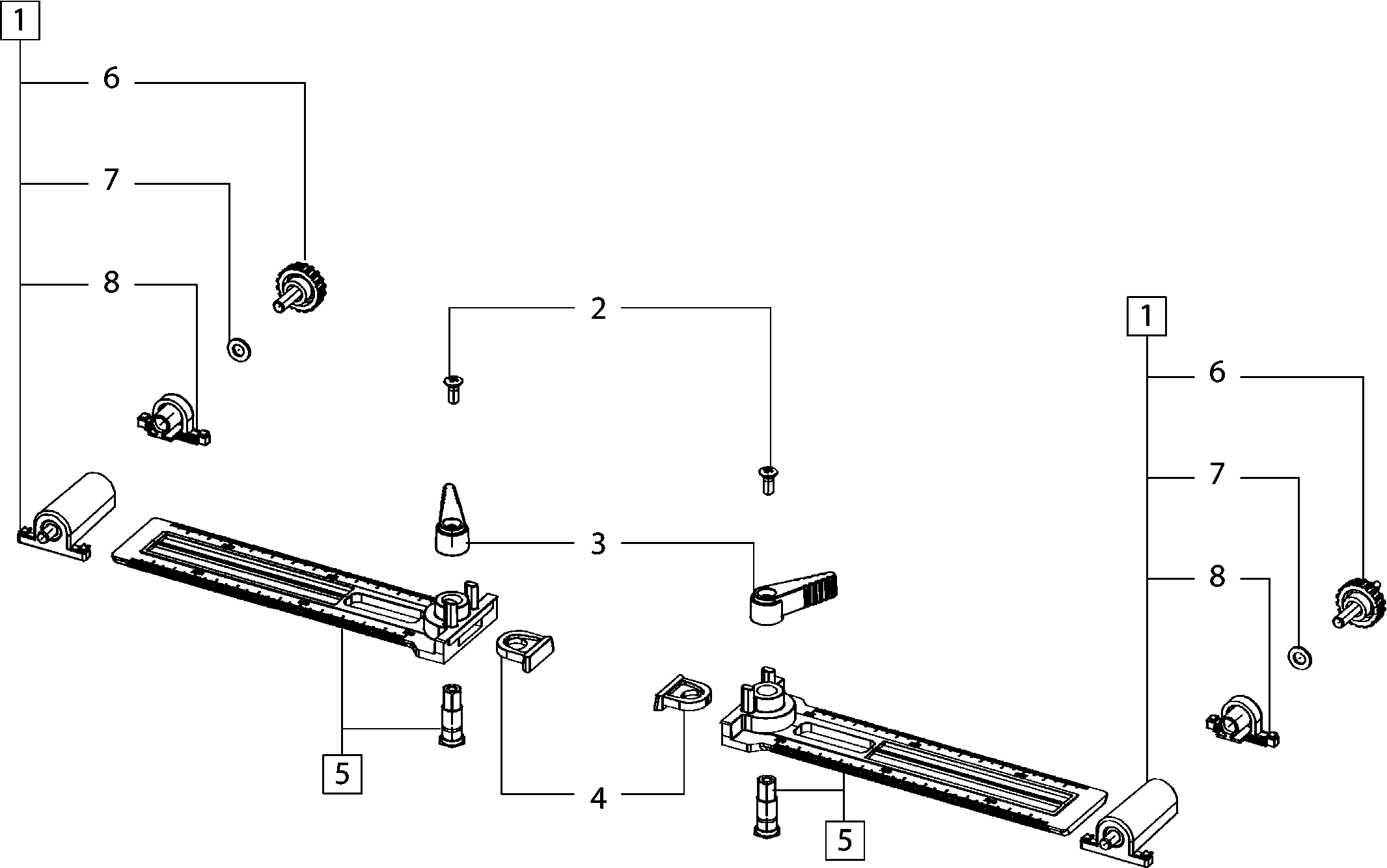

Technical drawing of model Festool 493488 ( DWARSAANSLAGQA-DF500 )
Spare parts list of model Festool 493488 ( DWARSAANSLAGQA-DF500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Slide QA-DF 500/700 | ||||
| 1 | 498648 | 55.30 | 66.91 | |
| Countersink DIN 965-M4x8-8.8-PR30 | ||||
| 2 | 400211 | 1.39 | 1.68 | |
| Lever DF 500 Q | ||||
| 3 | 465079 | 1.39 | 1.68 | |
| End Stop QA-DF500 | ||||
| 4 | 469228 | 1.66 | 2.01 | |
| GUIDE RAIL QA-DF500 | ||||
| 5 | 494197 | 36.42 | 44.07 | |
| Clamping screw LA-DF500 | ||||
| 6 | 469502 | 2.18 | 2.64 | |
| Disc DIN 125-A-5,3-140 HV | ||||
| 7 | 761515 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 8 | 469867 | |||
