Here you will find all available parts and drawings of the 'Festool 492617 (Dubbele-zuignap)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

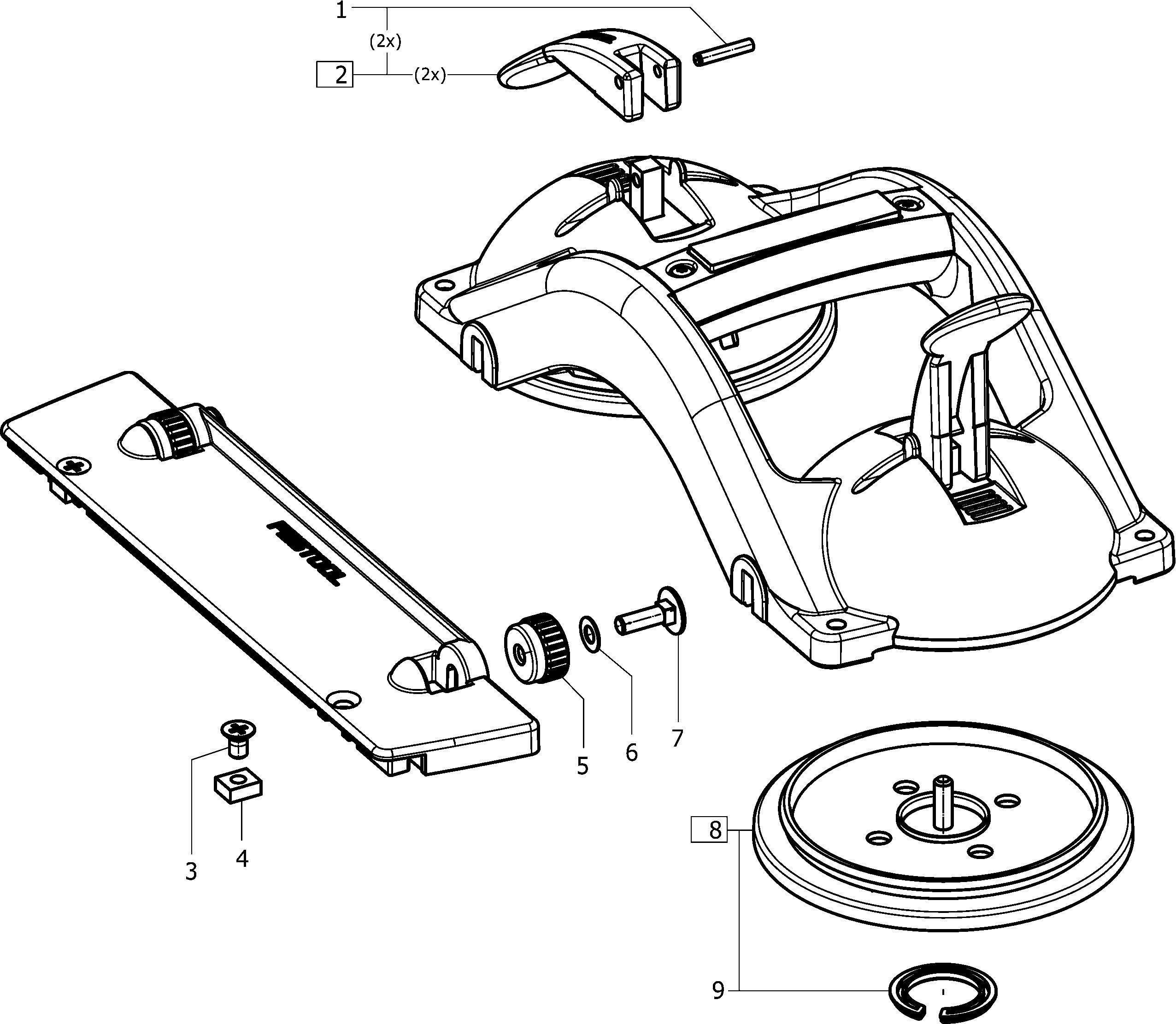

Technical drawing of model Festool 492617 (Dubbele-zuignap)
Spare parts list of model Festool 492617 (Dubbele-zuignap)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| PIN 4 M6x22 DIN 6325 | ||||
| 1 | 400536 | 1.51 | 1.83 | |
| LEVER DOSH | ||||
| 2 | 493306 | 17.79 | 21.53 | |
| Countersink DIN 965-M6x10-4.8-PR30 | ||||
| 3 | 402365 | 1.51 | 1.83 | |
| NUT FS-RSP M 6 | ||||
| 4 | 463723 | 4.10 | 4.96 | |
| HEX SHAFT DOSH | ||||
| 5 | 466490 | 3.46 | 4.19 | |
| Shim ring DIN 988-6x12x0,5 | ||||
| 6 | 400135 | 1.51 | 1.83 | |
| Cup square bolt DIN 603-M6x20-4.6 | ||||
| 7 | 228661 | 1.51 | 1.83 | |
| SUCTION CUP GECKO DOSH-SGT-S | ||||
| 8 | 493307 | 46.71 | 56.52 | |
| Disc DOSH | ||||
| 9 | 469140 | 1.51 | 1.83 | |
