Here you will find all available parts and drawings of the 'Festool 10774927 (DLI-CT26-48)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

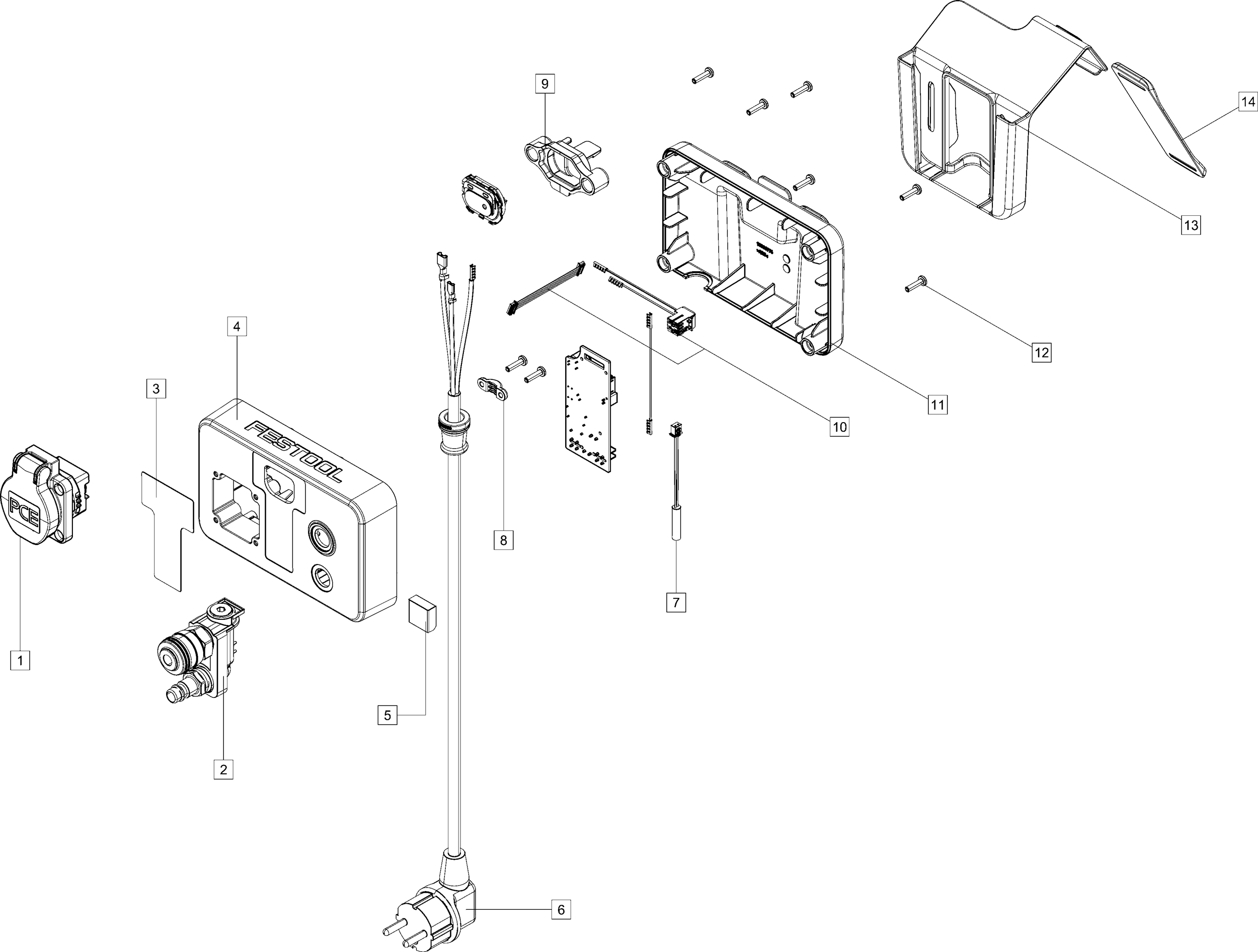

Technical drawing of model Festool 10774927 (DLI-CT26-48)
Spare parts list of model Festool 10774927 (DLI-CT26-48)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SOCKET OUTLET SD/DL-I RE. EU ET-BG | ||||
| 1 | 10987323 | 45.38 | 54.91 | |
| VALVE DL-I MODULE ET-BG | ||||
| 2 | 10987345 | 62.07 | 75.10 | |
| LABEL DLI/SDI ET-BG | ||||
| 3 | 11081598 | 2.95 | 3.57 | |
| FRONT HOUSING SD/DL-I ET-BG | ||||
| 4 | 10987349 | 28.68 | 34.70 | |
| CLAMP SD/DL-I ET-BG | ||||
| 5 | 10987340 | 18.03 | 21.82 | |
| POWER CORD SD/DL-I EU ET-BG | ||||
| 6 | 10987331 | 31.82 | 38.50 | |
| REED CONTACT SD/DL-I ET-BG | ||||
| 7 | 10987346 | 40.17 | 48.61 | |
| CLAMPING BRIDGE SD/DL-I ET-BG | ||||
| 8 | 10987348 | 15.97 | 19.32 | |
| HOLDER SD/DL-I IOT MODULE ET-BG | ||||
| 9 | 10987341 | 18.63 | 22.54 | |
| WIRING HARNESS SD/DL-I BL ET-BG | ||||
| 10 | 10987342 | 20.09 | 24.31 | |
| HOUSING SD/DL-I ET-BG | ||||
| 11 | 10987308 | 28.56 | 34.56 | |
| Oval head screw PT-3,5x14-T15 | ||||
| 12 | 452450 | 1.66 | 2.01 | |
| HOLDER SD/DL-I ET-BG | ||||
| 13 | 10987306 | 26.62 | 32.21 | |
| Strap CT-F I D 50 | ||||
| 14 | 204537 | 8.57 | 10.37 | |
