Here you will find all available parts and drawings of the 'Festool 10752007 (DFC500EU)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

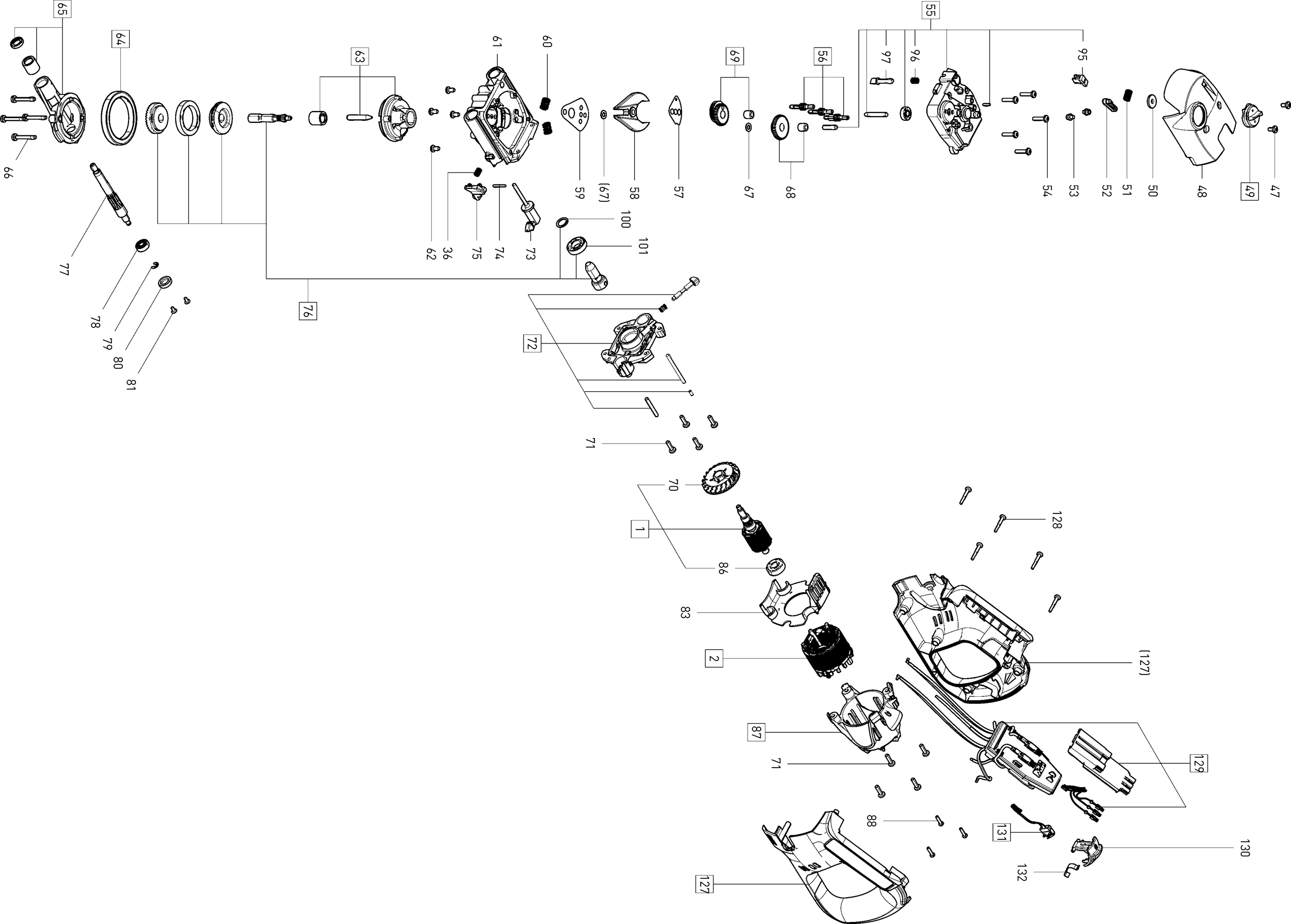

Technical drawing of model Festool 10752007 (DFC500EU)
Spare parts list of model Festool 10752007 (DFC500EU)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ROTOR DFC 500 SPARE ASSEMBLY | ||||
| 1 | 11101462 | 68.37 | 82.73 | |
| FIELD ASSEMBLY MFKC 700 ET-BG | ||||
| 2 | 11089777 | 48.47 | 58.65 | |
| UPPER HANDLE DF 500 R | ||||
| 6 | 10960058 | 6.55 | 7.93 | |
| Screw DF 700 EQ | ||||
| 7 | 401076 | 4.36 | 5.28 | |
| LOWER HANDLE DF 500 R | ||||
| 9 | 10960059 | 6.77 | 8.19 | |
| Grub screw DF 700 EQ | ||||
| 10 | 478995 | 14.88 | 18.00 | |
| Segment DF 500 Q | ||||
| 12 | 493779 | 12.03 | 14.56 | |
| Pin DF 500 Q | ||||
| 13 | 469141 | 10.10 | 12.22 | |
| TABLE DF 500 R | ||||
| 14 | 10880163 | 48.64 | 58.85 | |
| Grub screw DIN 913-M4x4-45H-PR30 | ||||
| 15 | 401104 | 11.75 | 14.22 | |
| Oval head screw M3x6-DUO-TAPTITE-TORX | ||||
| 16 | 400983 | 12.41 | 15.02 | |
| SCALE DF 700 | ||||
| 17 | 10962858 | 5.62 | 6.80 | |
| CARRIAGE DF 500 R ET-BG | ||||
| 18 | 11125886 | 69.76 | 84.41 | |
| FLEXIBLE KNIFE CS 70 EB 2208.006 | ||||
| 19 | 400286 | 11.22 | 13.58 | |
| Grub screw DIN 915-M4x12-45H-TUF | ||||
| 20 | 203387 | 4.56 | 5.52 | |
| Segment DF 700 | ||||
| 23 | 10001040 | 13.43 | 16.25 | |
| Oval head screw DIN 7380-M4x12-10.9 | ||||
| 25 | 470216 | 5.94 | 7.19 | |
| Oval head screw DIN 7985-M5x12-8.8 | ||||
| 29 | 400901 | 4.09 | 4.95 | |
| Table DF 500 R ET-BG | ||||
| 34 | 11126512 | 125.91 | 152.35 | |
| Limit stop DF 700 | ||||
| 38 | 702486 | 11.20 | 13.55 | |
| HOUSING SHELL DF 500 R | ||||
| 40 | 11059648 | 31.10 | 37.63 | |
| DRAWBAR DF 500 R | ||||
| 41 | 11035584 | 7.56 | 9.15 | |
| PRINTED SLIDE DF 500 | ||||
| 42 | 10515490 | 6.94 | 8.40 | |
| angle plate DF 500 Q | ||||
| 43 | 464821 | 4.49 | 5.43 | |
| Intake flange DF 500 Q | ||||
| 44 | 465203 | 4.94 | 5.98 | |
| Extractor tube DF 500 Q | ||||
| 45 | 465204 | 8.58 | 10.38 | |
| Suc. conn. piec DF 500 CT | ||||
| 46 | 10027879 | 7.99 | 9.67 | |
| Oval head screw M4x8-TAPTITE-KT15 | ||||
| 47 | 467961 | 6.53 | 7.90 | |
| Cover DF 500 Q | ||||
| 48 | 493153 | 9.90 | 11.98 | |
| switch handhold DF 500 Q | ||||
| 49 | 493815 | 9.64 | 11.66 | |
| Roller DF 500 Q | ||||
| 50 | 464837 | 4.36 | 5.28 | |
| SPRING 0,70x7,80x24,7 D115H11 | ||||
| 51 | 467959 | 4.22 | 5.11 | |
| LEVER DF 500 Q | ||||
| 52 | 464839 | 4.94 | 5.98 | |
| TAP DF 500 Q | ||||
| 53 | 466890 | 10.63 | 12.86 | |
| Oval head screw M4x18-TAPTITE-T20 | ||||
| 54 | 400904 | 11.48 | 13.89 | |
| HOUSING DFC 500 ET-BG | ||||
| 55 | 11101505 | 99.53 | 120.43 | |
| Cam spindle DF 500 Q | ||||
| 56 | 465947 | 17.18 | 20.79 | |
| INSERT DF 500 Q | ||||
| 57 | 466015 | 5.09 | 6.16 | |
| Lever pendular DF 500 Q | ||||
| 58 | 464840 | 52.64 | 63.69 | |
| INSERT DF 500 Q | ||||
| 59 | 466262 | 5.47 | 6.62 | |
| SPRING DF 500 | ||||
| 60 | 472015 | 6.79 | 8.22 | |
| Main girder DF 500 Q ET-BG | ||||
| 61 | 493895 | 111.08 | 134.41 | |
| Oval head screw M4x8-TAPTITE-T15 | ||||
| 62 | 228570 | 9.17 | 11.10 | |
| Inside pot DF 500 Q ET-BG | ||||
| 63 | 493920 | 106.06 | 128.33 | |
| Ball bearing DF 700 | ||||
| 64 | 401073 | 27.35 | 33.09 | |
| Pendular pot DF 500 Q ET-BG | ||||
| 65 | 493898 | 98.01 | 118.59 | |
| BUTTON-HEAD SCREW M4X30-10.9-T20-IPR-PR80 | ||||
| 66 | 10946232 | 1.51 | 1.83 | |
| Washer 5,3x10x1 DIN 125 PA | ||||
| 67 | 465024 | 7.06 | 8.54 | |
| Gear DF 500 Q ET-BG | ||||
| 68 | 493897 | 57.84 | 69.99 | |
| ECCENTRIC WHEEL DF 500 Q ET-BG | ||||
| 69 | 493896 | 84.58 | 102.34 | |
| FAN DFC 500 | ||||
| 70 | 10752284 | 6.26 | 7.57 | |
| Oval head screw M4x14-TAPTITE-KT15 | ||||
| 71 | 445566 | 14.59 | 17.65 | |
| BEARING FLANGE DF 500 Q ET-BG | ||||
| 72 | 493893 | 73.69 | 89.16 | |
| Setting slide DF 500 Q | ||||
| 73 | 492418 | 9.64 | 11.66 | |
| Cylinder pin DIN 7-2,5m6x18-ST | ||||
| 74 | 469645 | 4.03 | 4.88 | |
| Bolt DF 500 Q | ||||
| 75 | 469643 | 5.47 | 6.62 | |
| GEAR DRIVE DFC 500 ET-BG | ||||
| 76 | 11101533 | 230.08 | 278.40 | |
| Cutter spindle DF 500 Q | ||||
| 77 | 201683 | 50.03 | 60.54 | |
| Ball bearing 625 ZZ 1MC3 J2 EA3LN | ||||
| 78 | 479254 | 6.73 | 8.14 | |
| Lock washer Din 6799-4 | ||||
| 79 | 400106 | 3.89 | 4.71 | |
| TAP DF 500 Q | ||||
| 80 | 464847 | 4.49 | 5.43 | |
| screw RS 400 | ||||
| 81 | 400552 | 6.34 | 7.67 | |
| AIR GUIDE DFC 500 | ||||
| 83 | 10766433 | 7.20 | 8.71 | |
| Ball bearing 608 DD1 MC3 DIN625 NSK | ||||
| 86 | 401525 | 5.18 | 6.27 | |
| MOTOR HOUSING DFC 500 ET-BG | ||||
| 87 | 11101481 | 15.55 | 18.82 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 88 | 219069 | 1.51 | 1.83 | |
| O-ring 4x1,5-NBR-75SHORE | ||||
| 91 | 200911 | 5.74 | 6.95 | |
| ANGLE STOP DF 500 | ||||
| 92 | 10679826 | 7.92 | 9.58 | |
| Clamping screw AW-DF500 | ||||
| 93 | 469620 | 7.73 | 9.35 | |
| STOP DF 500 R ET-BG | ||||
| 94 | 11155475 | 11.88 | 14.37 | |
| LOCKING COVER DFC 500 | ||||
| 95 | 11073388 | 5.11 | 6.18 | |
| SPRING DIN 2098-0,50x6,50x15,0 | ||||
| 96 | 436528 | 2.04 | 2.47 | |
| Lock bolt DF 500 Q | ||||
| 97 | 701474 | 16.87 | 20.41 | |
| BUFFER DF 700 EQ | ||||
| 98 | 478994 | 1.37 | 1.66 | |
| Circlip AV 12-BLS-SEEGER | ||||
| 100 | 401062 | 4.36 | 5.28 | |
| Deep Groove Ball Bearing 6901 VV C3U 246T HA1S9 | ||||
| 101 | 10779006 | 12.83 | 15.52 | |
| Guide DF 500 R ET-BG | ||||
| 102 | 11126516 | 399.78 | 483.73 | |
| SPANNER SW 8 DIN894 | ||||
| 105 | 401739 | 8.18 | 9.90 | |
| CLAMPING LEVER DF 500 R | ||||
| 112 | 10866442 | 22.87 | 27.67 | |
| Clamp lever DF 700 | ||||
| 114 | 498315 | 14.83 | 17.94 | |
| Indicator DF 700 | ||||
| 116 | 10000925 | 6.34 | 7.67 | |
| Oval head screw DIN 7380-M4x12-10.9 | ||||
| 118 | 470216 | 5.94 | 7.19 | |
| Grub screw DIN 913-M4x4-45H-PR30 | ||||
| 119 | 401104 | 11.75 | 14.22 | |
| DOWEL PIN DIN 8734 3M6 X 32 | ||||
| 120 | 10848932 | 12.01 | 14.53 | |
| SPRING PLATE DF 500 R | ||||
| 123 | 10884559 | 7.56 | 9.15 | |
| Oval head screw M5x16-TAPTITE-T25 | ||||
| 124 | 10016393 | 6.94 | 8.40 | |
| COVER PLATE DF 500 R | ||||
| 125 | 10837571 | 7.56 | 9.15 | |
| HANDLE DFC 500 ET-BG | ||||
| 127 | 11101484 | 32.60 | 39.45 | |
| COMPRESSION SPRING 0,50 X 5,00X 11,10X 3,50 | ||||
| 128 | 467680 | 1.66 | 2.01 | |
| ELECTRONICS DFC 500 ET-BG | ||||
| 129 | 11101488 | 170.61 | 206.44 | |
| Switch lever DF 700 | ||||
| 130 | 479674 | 1.87 | 2.26 | |
| SWITCH DFC 500 ET-BG | ||||
| 131 | 11101502 | 17.01 | 20.58 | |
| Oval head screw M4x8-TAPTITE-KT15 | ||||
| 132 | 467961 | 6.53 | 7.90 | |
| SPACER TUBE DF 500 TRANSPORT LOCK | ||||
| 133 | 10575293 | 5.76 | 6.97 | |
| LID FOAM DFC500 SYS M237 | ||||
| 134 | 10966087 | 7.20 | 8.71 | |
