Here you will find all available parts and drawings of the 'Festool 498996 ( DF700EQ230V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

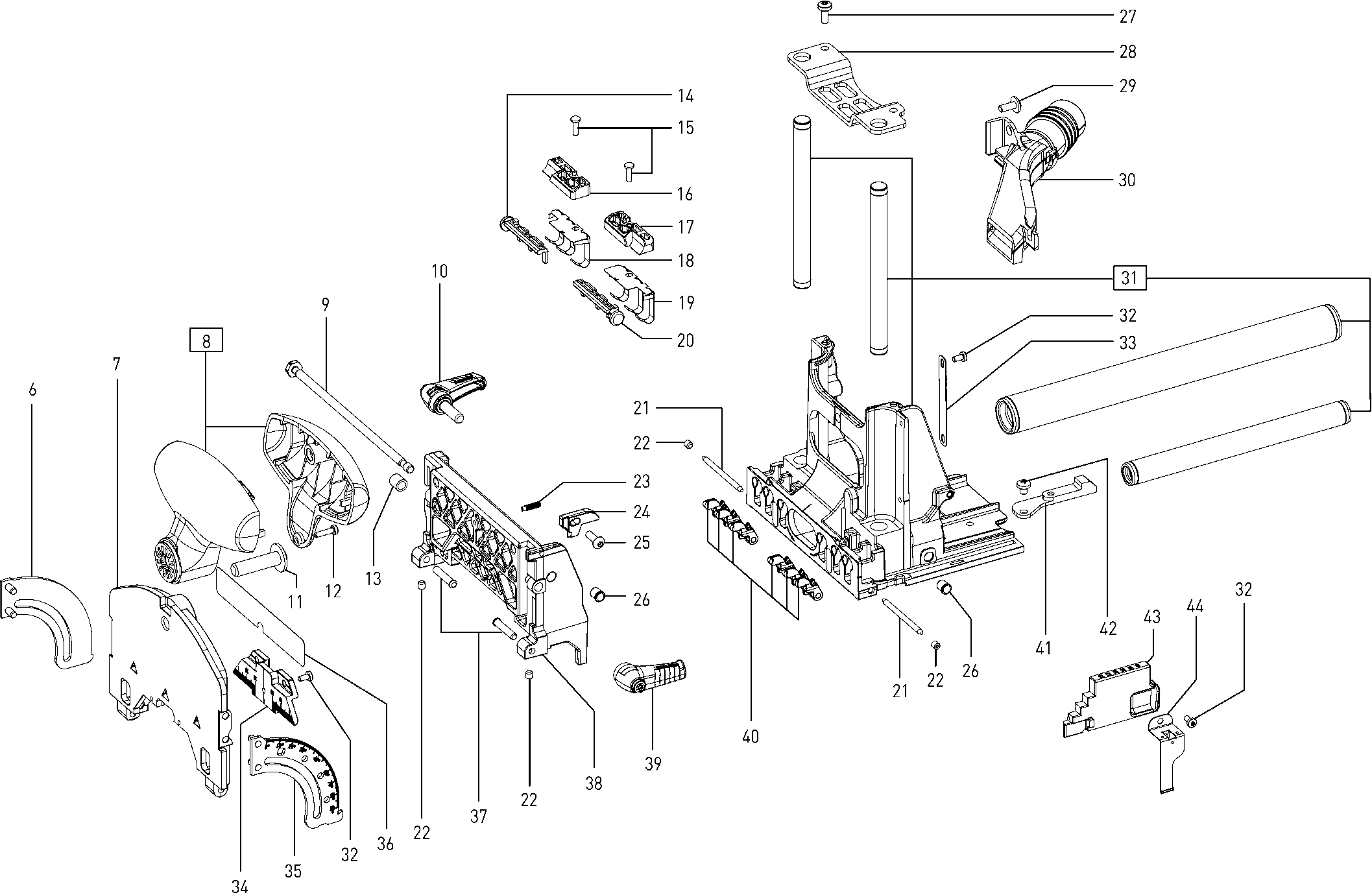

Technical drawing of model Festool 498996 ( DF700EQ230V )

Spare parts list of model Festool 498996 ( DF700EQ230V )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Armature DF 700 EQ 230V
1 498769 149.68 181.11
Field assembly DF 700 EQ 230V ET-BG
2 10008028 69.94 84.63
Switch PS 300 EQ
3 451383 11.42 13.82
plug it-kabel H05 RN-F-4
4 203914 25.62 31.00
Socket housing DF 700 EQ Plug it
5 700537 16.34 19.77
Segment DF 500 Q
6 493779 11.42 13.82
Base DF 700
7 10001284 44.16 53.43
Handle DF 700 EQ
8 498695 25.53 30.89
Grub screw DF 700 EQ
9 478995 14.64 17.71
Clamp lever DF 700
10 498316 14.76 17.86
Screw DF 700 EQ
11 401076 1.39 1.68
Oval head screw PT-3,0x12-KT10
12 219069 1.39 1.68
Threaded insert M 6 X 1,5 RE-COIL
13 401111 1.39 1.68
Interlock DF 700 EQ
14 478981 1.39 1.68
Oval head screw M3x14-TAPTITE-T10
15 10003527 1.39 1.68
Cover DF 700
16 700563 1.39 1.68
Cover DF 700
17 700564 1.39 1.68
Spring plate DF 700 EQ
18 478982 4.22 5.11
Spring plate DF 700 EQ
19 478979 4.22 5.11
Interlock DF 700 EQ
20 478978 1.39 1.68
Cylinder pin DF 700
21 479264 1.78 2.15
Grub screw DIN 913-M4x4-45H-PR30
22 401104 1.39 1.68
Grub screw DIN 915-M4x12-45H-TUF
23 203387 1.39 1.68
Indicator DF 700
24 10000925 2.71 3.28
Oval head screw DIN 7380-M4x12-10.9
25 470216 1.39 1.68
FLEXIBLE KNIFE CS 70 EB 2208.006
26 400286 4.22 5.11
Oval head screw M4x10-TAPTITE-T15
27 228582 1.39 1.68
Cover DF 700 EQ
28 478973 3.89 4.71
Cup square bolt M4x10-Taptite-Torx-Plus
29 401117 1.39 1.68
Extr. connector DF 700 CT
30 10027826 5.09 6.16
Base DF 700 EQ
31 499260 166.74 201.76
Oval head screw M3x6-DUO-TAPTITE-TORX
32 400983 1.39 1.68
Scale DF 700 EQ
33 478966 1.39 1.68
Scale DF 700
34 701458 5.15 6.23
Segment DF 700
35 10001040 12.03 14.56
Label DF 700
36 701872 1.39 1.68
Pin DF 500 Q
37 469141 3.24 3.92
Cradle DF 700 EQ
38 497651 60.62 73.35
Clamp lever DF 700
39 498315 13.19 15.96
Limit stop DF 700
40 702486 1.39 1.68
Tie rod DF 700
41 10002459 14.28 17.28
Oval head screw M4 x 5
42 228616 1.39 1.68
Slide DF 700
43 478969 3.24 3.92
Holding plate DF 700 EQ
44 478970 1.45 1.75
Oval head screw M4x18-TAPTITE-T20
45 400904 1.39 1.68
Gear cover DF 700
46 479956 27.83 33.67
Cylinder gear DF 700 3.1
47 497305 12.70 15.37
Oval head screw PT-3,5x22-KT15
48 473901 1.39 1.68
Cover DF 700
49 479661 1.39 1.68
Indic. washer DF 700 EQ
50 700376 3.62 4.38
Plug H03 Kiba DF700
51 10001078 1.39 1.68
Swivel arm DF 700 EQ
52 700374 1.39 1.68
Compression spr DIN2098-0,50X 5,00X 16,4
53 700375 1.39 1.68
Shim ring DIN 988-6x12x1
54 236065 1.39 1.68
Lock washer Din 6799-5
55 208623 1.39 1.68
Screw DF 700
56 700032 1.39 1.68
Compression spr DF 700
57 479606 1.39 1.68
Connect. member DF 700
58 701282 26.14 31.63
Cylinder gear DF 700 4.1,4.2
59 497307 14.88 18.00
Axis DF 700
60 479628 31.10 37.63
Restrictor DF 700
61 700178 1.39 1.68
Cylinder gear DF 700 3.1,3.2
62 497306 24.20 29.28
Bearing plate DF 700 EQ
63 498700 121.12 146.56
Countersink DIN 965-M4x10-12.9-PR80+
64 400681 1.39 1.68
Board DF 700 EQ
65 497344 6.79 8.22
Spring clamp DF 700
66 479637 1.39 1.68
Compression spr DF 700
67 479639 1.39 1.68
Cheese head scr M5x8 Torx Plus 20 IRP
68 10001832 1.39 1.68
Gear box DF 700 EQ
69 498699 119.55 144.66
Circlip AV 12-BLS-SEEGER
70 401062 1.39 1.68
Ball bearing 6001 RS/Z DIN 625 C3
71 400048 7.58 9.17
Slide DF 700 EQ
72 479649 2.04 2.47
Grub screw DIN 915-M2,5x8-45H
73 400882 1.39 1.68
C-h screw M4x8 10.9 verz. PR30
74 401063 1.39 1.68
Slide DF 700
75 497347 7.20 8.71
Cover DF 700
76 479610 1.92 2.32
Oval head screw M4x14-TAPTITE-KT15
77 445566 1.39 1.68
Fan wheel DF 700 EQ
78 700718 1.85 2.24
No information available, not orderable
79 498773
Oval head screw PS 300 EQ M3,5x5 TORX
80 455593 1.39 1.68
Compression spr DF 700
81 479612 1.39 1.68
Switch lever DF 700
82 479674 1.72 2.08
Catch spring DF 700 EQ
83 700658 1.39 1.68
Countersink DIN 965-M2,5x8-4.8-PR30
84 401127 1.39 1.68
Cap DF 700
85 479619 1.39 1.68
Housing set DF 700 EQ
86 498698 53.48 64.71
SPRING DIN 2098-0,50x6,50x15,0
87 436528 1.39 1.68
Lock bolt DF 700
88 479618 7.73 9.35
O-ring 19x1,5-NBR-75SHORE
89 200942 1.72 2.08
Inside pot DF 700 EQ
90 703502 45.50 55.06
Ball bearing DF 700
91 401073 27.35 33.09
Gear DF 700
92 205159 77.68 93.99
Ball bearing DF 700
93 401072 26.02 31.48
Lever DF 700 EQ
94 700505 16.58 20.06
Plunger DF 700 EQ
95 479656 9.17 11.10
Catch DF 700 EQ
96 479650 1.78 2.15
SPRING DIN 2098-0,63x10,63x20,0
97 715027 1.39 1.68
Support DF 700
98 700458 1.39 1.68
Oval head screw PT-3,5x10-KT15
99 219031 1.39 1.68
Cover DF 700 EQ
100 497593 18.27 22.11
O-ring 4x1,5-NBR-75SHORE
101 200911 1.39 1.68
Stop angle AW-DF 700
102 469159 8.26 9.99
Clamping screw AW-DF500
103 469620 2.18 2.64
Stop angle AW-DF700 ET-BG
104 498885 40.29 48.75
Fork wrench SW 12 DIN894
105 401081 7.92 9.58
Conical nipple SD 12x19x3 INA
106 700027 8.98 10.87
No information available, not orderable
107 401057
Oval head screw M4x30TORX -PLUS-IPR20
108 400094 1.39 1.68
Spindle housing DF 700 EQ
109 703503 34.48 41.72
Cutter spindle DF 700
110 201684 46.58 56.36
Ball bearing 626 DD M5MTLY 121
111 228672 4.49 5.43
Circlip DIN 471-6x0,7
112 200616 1.39 1.68
Cover DF 700
113 479644 1.39 1.68
Air guide washe DF 700
114 479698 1.78 2.15
Motor frame DF 700 EQ
115 700020 17.91 21.67
Brushes DF 700 EQ ET-BG
116 498697 17.30 20.93
PTC resistor DF 700 90 C
117 10007991 9.43 11.41
Electronics DF 700 EQ 230V
118 497467 48.64 58.85
