Here you will find all available parts and drawings of the 'Festool 10010708 ( CXS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

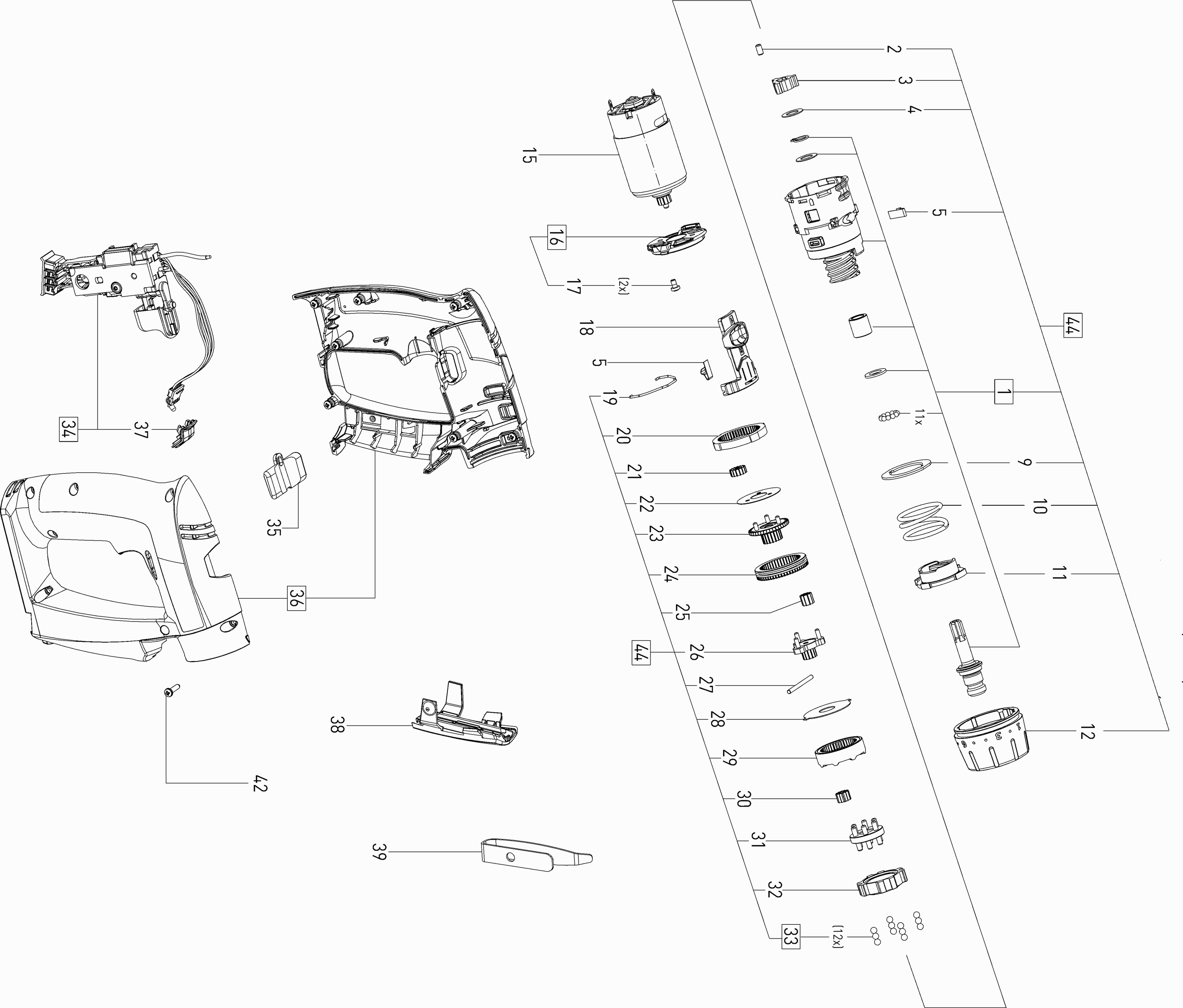

Technical drawing of model Festool 10010708 ( CXS )
Spare parts list of model Festool 10010708 ( CXS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear box TXS | ||||
| 1 | 500457 | 47.19 | 57.10 | |
| Cylinder roller CXS | ||||
| 2 | 476859 | 1.39 | 1.68 | |
| Carrier CXS Abtrieb | ||||
| 3 | 475778 | 2.24 | 2.71 | |
| Shim ring DIN 988-8x14x0,5 | ||||
| 4 | 400884 | 1.39 | 1.68 | |
| Spring CXS | ||||
| 5 | 479011 | 1.39 | 1.68 | |
| Pressure disk CXS | ||||
| 9 | 475783 | 1.39 | 1.68 | |
| Compression spr CXS | ||||
| 10 | 475784 | 1.78 | 2.15 | |
| Pressure ring CXS | ||||
| 11 | 475785 | 1.58 | 1.91 | |
| Adjusting ring CXS | ||||
| 12 | 478375 | 4.62 | 5.59 | |
| Motor CXS ET-BG | ||||
| 15 | 497615 | 46.22 | 55.93 | |
| Motor retainer CXS | ||||
| 16 | 497614 | 12.70 | 15.37 | |
| Oval head screw DIN 7985-M3x5-4.8-PR80 | ||||
| 17 | 478441 | 1.39 | 1.68 | |
| Gear slide CXS | ||||
| 18 | 475788 | 2.38 | 2.88 | |
| Switching clip CXS | ||||
| 19 | 475771 | 1.39 | 1.68 | |
| Ring gear CXS (1) | ||||
| 20 | 475766 | 3.10 | 3.75 | |
| Planet CXS (1) | ||||
| 21 | 475767 | 1.39 | 1.68 | |
| Disc CXS | ||||
| 22 | 475769 | 1.39 | 1.68 | |
| Carrier CXS (1) kompl. | ||||
| 23 | 495638 | 5.54 | 6.70 | |
| Switching ring CXS | ||||
| 24 | 475770 | 3.30 | 3.99 | |
| Planet CXS (2) | ||||
| 25 | 475772 | 1.39 | 1.68 | |
| Carrier CXS (2) kompl. | ||||
| 26 | 495639 | 3.70 | 4.48 | |
| Pin CXS | ||||
| 27 | 475774 | 1.39 | 1.68 | |
| Cover screw CXS | ||||
| 28 | 475800 | 1.39 | 1.68 | |
| Ring gear CXS (3) | ||||
| 29 | 475775 | 5.47 | 6.62 | |
| Planet CXS (3) | ||||
| 30 | 475776 | 1.39 | 1.68 | |
| Carrier CXS (3) kompl. | ||||
| 31 | 495640 | 8.64 | 10.45 | |
| Ring CXS Wellenstop | ||||
| 32 | 475780 | 6.00 | 7.26 | |
| Ball CXS 4 mm 12x | ||||
| 33 | 499321 | 7.32 | 8.86 | |
| Switch modul CXS | ||||
| 34 | 500375 | 75.50 | 91.36 | |
| Ch-over switch CXS | ||||
| 35 | 475787 | 1.39 | 1.68 | |
| Housing set CXS | ||||
| 36 | 500374 | 20.81 | 25.18 | |
| Window CXS LED | ||||
| 37 | 10012150 | 6.00 | 7.26 | |
| Bit reception CXS kompl. | ||||
| 38 | 495823 | 4.15 | 5.02 | |
| Retaining bow CXS | ||||
| 39 | 475760 | 3.62 | 4.38 | |
| Oval head screw PT-3,0x12-PZV | ||||
| 42 | 228717 | 1.39 | 1.68 | |
| Gear CXS Heavy Duty | ||||
| 44 | 499379 | 99.34 | 120.20 | |
