Here you will find all available parts and drawings of the 'Festool 10363213 ( CXS18EU )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

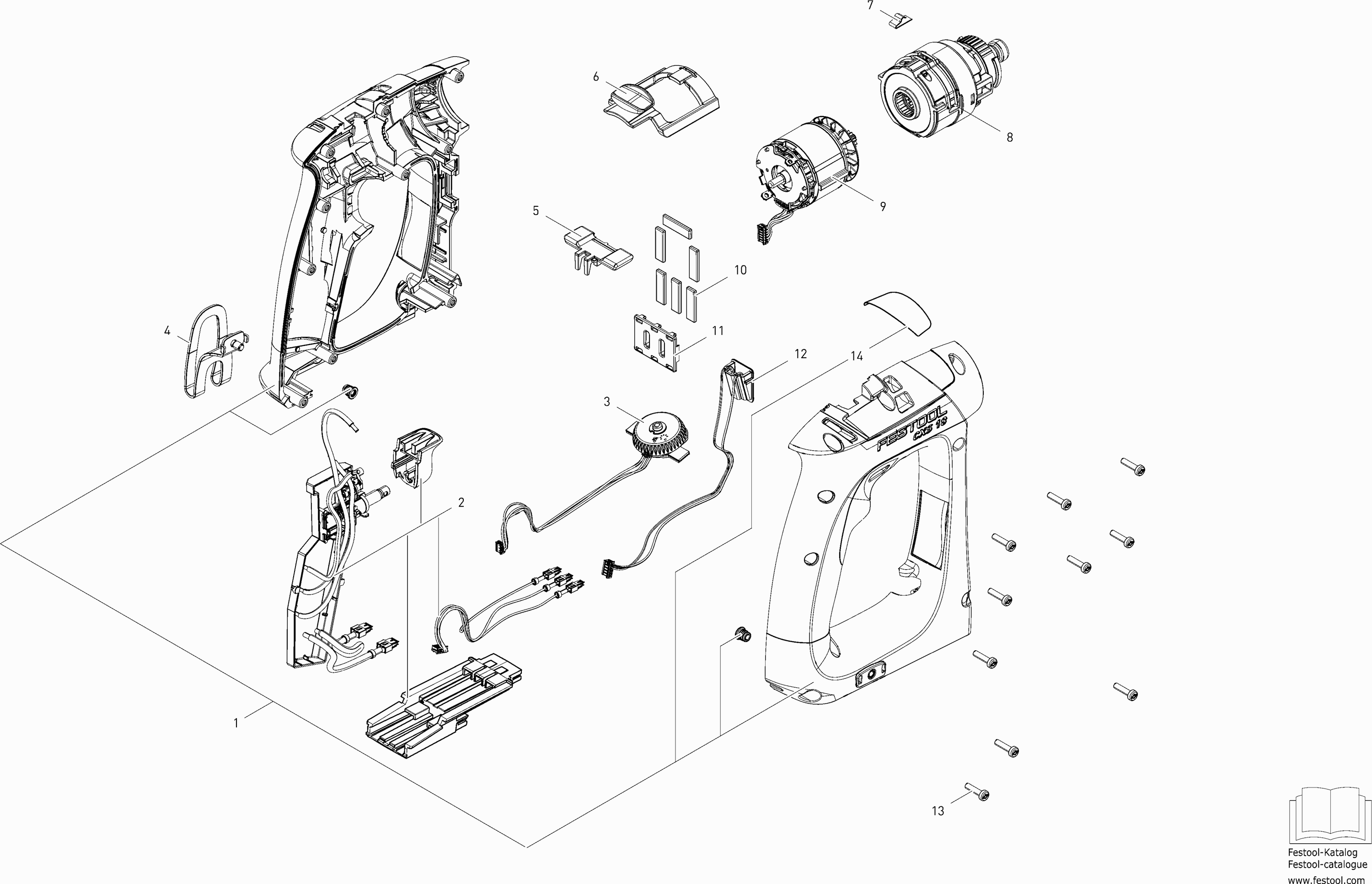

Technical drawing of model Festool 10363213 ( CXS18EU )
Spare parts list of model Festool 10363213 ( CXS18EU )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing set BHC 18 | ||||
| 1 | 10723956 | 32.79 | 39.68 | |
| Electronics HK 85 | ||||
| 2 | 10723960 | 127.41 | 154.17 | |
| Torque Setting | ||||
| 3 | 10723963 | 23.11 | 27.96 | |
| Clip T 18 FL | ||||
| 4 | 10026021 | 9.58 | 11.59 | |
| Changeover switch | ||||
| 5 | 10406437 | 2.83 | 3.42 | |
| Flat sander | ||||
| 6 | 10466320 | 4.42 | 5.35 | |
| Spring CXS | ||||
| 7 | 479011 | 1.39 | 1.68 | |
| Gear transmission | ||||
| 8 | 10724113 | 70.91 | 85.80 | |
| Drive | ||||
| 9 | 10724115 | 63.52 | 76.86 | |
| Solenoid CXS | ||||
| 10 | 700404 | 1.58 | 1.91 | |
| Holder | ||||
| 11 | 10539376 | 2.90 | 3.51 | |
| Lighting module | ||||
| 12 | 10724116 | 9.43 | 11.41 | |
| Oval head screw PT-3,0x12-KT10 | ||||
| 13 | 219069 | 1.39 | 1.68 | |
| Type plate HK 85 EB 230V | ||||
| 14 | 10523680 | 2.04 | 2.47 | |
