Here you will find all available parts and drawings of the 'Festool 202831 (CTM48ELEEC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

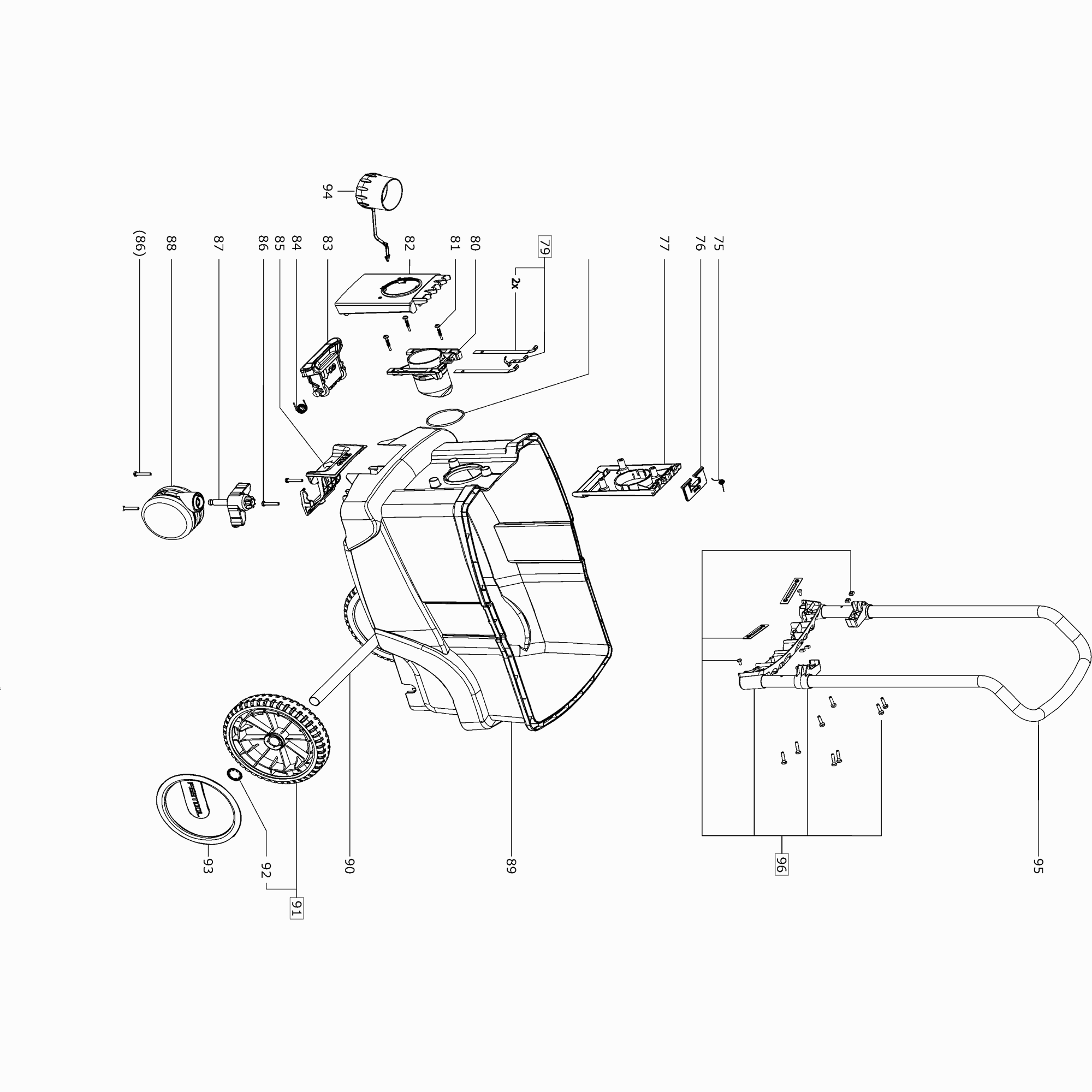

Technical drawing of model Festool 202831 (CTM48ELEEC)
Spare parts list of model Festool 202831 (CTM48ELEEC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Quick-coupl. so KD-1/4 ET-BG | ||||
| 1 | 200473 | 33.52 | 40.56 | |
| Packing set ET-BG CT 26/36 | ||||
| 2 | 496573 | 18.15 | 21.96 | |
| Distributor ET-BG Zubeh r CT 26/36 | ||||
| 3 | 499289 | 51.91 | 62.81 | |
| Cable harness EAA CT B22/EC ET-BG | ||||
| 5 | 498680 | 90.87 | 109.95 | |
| Conversion kit CTL/M EC/B22 | ||||
| 6 | 203982 | 129.47 | 156.66 | |
| Restrictor CTL/CTM EC/B22 ET-BG | ||||
| 6 | 10019916 | 58.32 | 70.57 | |
| Oval head screw PT-3,5x14-T15 | ||||
| 7 | 452450 | 1.66 | 2.01 | |
| Vent. grid CT EC/B22 ET-BG | ||||
| 9 | 203163 | 13.92 | 16.84 | |
| Lock washer 6 CAMLOC NR. 06530950005 | ||||
| 10 | 460025 | 1.51 | 1.83 | |
| air filter CT N B1 ET-BG | ||||
| 11 | 200816 | 45.13 | 54.61 | |
| Oval head screw PT-4,0x25-T15 | ||||
| 12 | 400695 | 1.51 | 1.83 | |
| Coupling piece KS4-1/4 ET-BG | ||||
| 13 | 200846 | 19.12 | 23.14 | |
| Rotary knob D44_ET-BG CT26/36 | ||||
| 15 | 496247 | 19.00 | 22.99 | |
| Closing Plug | ||||
| 17 | 700389 | 6.98 | 8.45 | |
| No information available, not orderable | ||||
| 18 | 479713 | |||
| O-ring 12x1.5 ET-BG | ||||
| 19 | 10739615 | 6.05 | 7.32 | |
| Handle cover CT 26/36 ET-BG | ||||
| 23 | 200581 | 12.71 | 15.38 | |
| Handle CT N B1 ET-BG | ||||
| 25 | 204111 | 19.36 | 23.43 | |
| Locking latch CT N B1 ET-BG | ||||
| 26 | 200873 | 12.71 | 15.38 | |
| Cover CT B22/EC R1 ET-BG | ||||
| 27 | 10021262 | 83.85 | 101.46 | |
| Flat belt cable CT B22/EC ET-BG | ||||
| 29 | 498671 | 74.42 | 90.05 | |
| Oval head screw PT-4,0x12-KT15 | ||||
| 30 | 219071 | 1.51 | 1.83 | |
| Interference fi CT B22/EC ET-BG | ||||
| 31 | 498672 | 92.08 | 111.42 | |
| Cable CT B22/EC ET-BG | ||||
| 32 | 498673 | 40.54 | 49.05 | |
| Flexible lead CT B22/EC ET-BG | ||||
| 33 | 200840 | 17.55 | 21.24 | |
| Cable harness CT N B1 ET-BG | ||||
| 34 | 200837 | 30.37 | 36.75 | |
| Conversion kit CTL/M EC/B22 | ||||
| 37 | 203982 | 129.47 | 156.66 | |
| Oval head screw PT-5,0x30-T25 | ||||
| 38 | 452447 | 1.58 | 1.91 | |
| Seal 6x6 Rechteckprofil ET-BG | ||||
| 39 | 200603 | 20.33 | 24.60 | |
| Cover plate CT N B1 ET-BG | ||||
| 40 | 200882 | 54.45 | 65.88 | |
| Signal generato CT B22/EC ET-BG | ||||
| 41 | 498674 | 52.27 | 63.25 | |
| Control electro 230V CT B22/EC ET-BG | ||||
| 42 | 498779 | 389.62 | 471.44 | |
| Flexible lead CT B22/EC Turbine ET-BG | ||||
| 43 | 200841 | 17.42 | 21.08 | |
| Seal Filterg. CT N B1 ET-BG | ||||
| 44 | 200821 | 25.29 | 30.60 | |
| Cable clamp CT MINI ET-BG | ||||
| 45 | 200536 | 14.64 | 17.71 | |
| Rubber sleeve CT N B1 ET-BG | ||||
| 46 | 200819 | 22.63 | 27.38 | |
| Adhesive label CT B22/EC ET-BG | ||||
| 47 | 498675 | 35.09 | 42.46 | |
| Oval head screw PT-5,0x80-T25 | ||||
| 48 | 452448 | 1.51 | 1.83 | |
| Casing box CT B22/EC R1 ET-BG | ||||
| 49 | 10021263 | 143.75 | 173.94 | |
| No information available, not orderable | ||||
| 50 | 479930 | |||
| Cup seal CT N B1 ET-BG | ||||
| 51 | 200848 | 23.35 | 28.25 | |
| Plug socket CT 16A/250V ET-BG | ||||
| 52 | 200507 | 20.57 | 24.89 | |
| Cover CT Steckdose mit Rahmen | ||||
| 53 | 200504 | 13.43 | 16.25 | |
| Cable harness Wasser CT B22/EC ET-BG | ||||
| 55 | 498678 | 46.46 | 56.22 | |
| Filter case CT 26/36 ET-BG | ||||
| 58 | 201794 | 90.51 | 109.52 | |
| Filter holder ET-BG CT26/36 | ||||
| 59 | 496255 | 26.86 | 32.50 | |
| Cover CT26/36 ET-BG | ||||
| 60 | 201975 | 43.80 | 53.00 | |
| Noise abat. par Abluft CTN-B1 ET-BG | ||||
| 62 | 200879 | 16.58 | 20.06 | |
| Clamp ET-BG CT26/36 | ||||
| 64 | 496262 | 20.33 | 24.60 | |
| Seal Turbine CT N EC B1 ET-BG | ||||
| 65 | 200858 | 41.87 | 50.66 | |
| Ch. head screw DIN 912-M4x18-8.8-TUF | ||||
| 67 | 702520 | 1.73 | 2.09 | |
| Collet CT N EC/B1 ET-BG | ||||
| 68 | 200897 | 18.63 | 22.54 | |
| Turbine 230V CT B22/EC ET-BG | ||||
| 69 | 498780 | 374.62 | 453.29 | |
| Cover CT26/36 ET-BG | ||||
| 71 | 201975 | 43.80 | 53.00 | |
| Oval head screw PT-4,0x16-KT15 | ||||
| 72 | 228713 | 5.94 | 7.19 | |
| Bolt CT 26/36 ET-BG | ||||
| 76 | 500314 | 18.15 | 21.96 | |
| Rest Filtersack CT N ET-BG | ||||
| 77 | 200591 | 10.01 | 12.11 | |
| Restrictor ET-BG CT36 | ||||
| 82 | 496267 | 20.33 | 24.60 | |
| Leg CT 26/36 ET-BG | ||||
| 83 | 500317 | 27.10 | 32.79 | |
| Torsion spring CT MINI ET-BG | ||||
| 84 | 200539 | 3.82 | 4.62 | |
| Leg CT 26/36 ET-BG | ||||
| 85 | 500317 | 27.10 | 32.79 | |
| Oval head screw PT-5,0x30-T25 | ||||
| 86 | 452447 | 1.58 | 1.91 | |
| Holder Lenkrolle CT 48 ET-BG | ||||
| 87 | 200824 | 10.15 | 12.28 | |
| Container CT B22/EC ET-BG | ||||
| 89 | 498669 | 266.93 | 322.99 | |
| Pipe Achse CT 48 ET-BG | ||||
| 90 | 200823 | 21.30 | 25.77 | |
| Wheel ET-BG CT26/36 | ||||
| 91 | 496230 | 34.24 | 41.43 | |
| Tooth ring CT 17 ET-BG | ||||
| 92 | 202484 | 3.67 | 4.44 | |
| Wheel cover D200 CT 26/36 ET-BG | ||||
| 93 | 200570 | 11.02 | 13.33 | |
| Blanking plug | ||||
| 94 | 452899 | 18.00 | 21.78 | |
| Handle | ||||
| 95 | 497295 | 136.00 | 164.56 | |
| Assembly kit SB ET-BG CT 48 | ||||
| 96 | 500253 | 66.07 | 79.94 | |
| Warning plate M | ||||
| 97 | 477177 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 9999 | xxx | |||
