Here you will find all available parts and drawings of the 'Festool 496546 ( CTM36EAC230V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

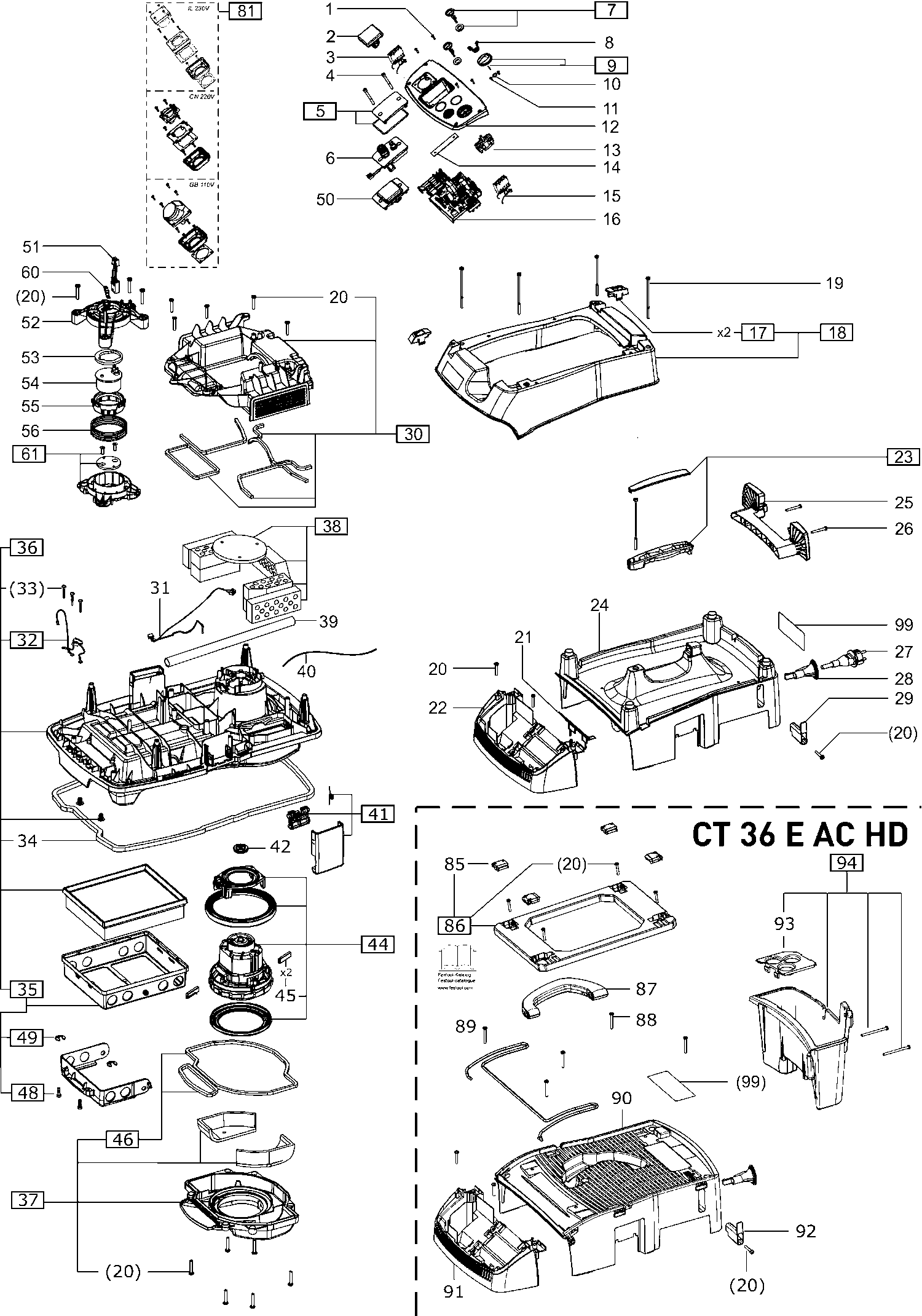

Technical drawing of model Festool 496546 ( CTM36EAC230V )
Spare parts list of model Festool 496546 ( CTM36EAC230V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oval head screw PT-3,5x14-T15 | ||||
| 1 | 452450 | 1.51 | 1.83 | |
| Plug socket CT MINI 230V Abd. ET-BG | ||||
| 2 | 200531 | 23.60 | 28.56 | |
| Cable harness CTN ET-BG | ||||
| 3 | 201717 | 8.02 | 9.70 | |
| No information available, not orderable | ||||
| 4 | 476004 | |||
| Cover ET-BG CT26/36 | ||||
| 5 | 496234 | 20.45 | 24.74 | |
| Module DL-CT26/36 | ||||
| 6 | 496141 | 213.23 | 258.01 | |
| Rotary knob D28_ET-BG CT26/36 | ||||
| 7 | 496249 | 19.60 | 23.72 | |
| Catch spring CT N ET-BG | ||||
| 8 | 201005 | 14.76 | 17.86 | |
| Rotary knob D44_ET-BG CT26/36 | ||||
| 9 | 496247 | 18.27 | 22.11 | |
| No information available, not orderable | ||||
| 10 | 452051 | |||
| No information available, not orderable | ||||
| 11 | 452452 | |||
| Conversion kit CTM AC 230V | ||||
| 12 | 203962 | 91.11 | 110.24 | |
| Switch CT N AC ET-BG | ||||
| 13 | 498082 | 19.60 | 23.72 | |
| Board segment CT 26/36 ET-BG | ||||
| 14 | 200599 | 4.49 | 5.43 | |
| Cable harness CT N ET-BG | ||||
| 15 | 200628 | 10.28 | 12.44 | |
| Conversion kit CTM AC 230V | ||||
| 16 | 203962 | 91.11 | 110.24 | |
| Clamp ET-BG CT26/36 | ||||
| 17 | 496236 | 21.30 | 25.77 | |
| Hood CT 26/36 FL VP | ||||
| 18 | 204040 | 61.47 | 74.38 | |
| Cylinder head screw PT5x140 T25 ET-BG | ||||
| 19 | 10737262 | 1.78 | 2.15 | |
| Oval head screw PT-5,0x30-T25 | ||||
| 20 | 452447 | 1.39 | 1.68 | |
| Housing insert ET-BG CT26/36 | ||||
| 22 | 496238 | 35.33 | 42.75 | |
| Handle ET-BG CT26/36 | ||||
| 23 | 496244 | 20.69 | 25.03 | |
| Casing box ET-BG CT26/36 | ||||
| 24 | 496243 | 50.70 | 61.35 | |
| Cable holder CT VP | ||||
| 25 | 203722 | 22.26 | 26.93 | |
| No information available, not orderable | ||||
| 26 | 476795 | |||
| CABLE W.CONNECT H07RN-F 3x1,5 DIN ET-BG | ||||
| 27 | 200639 | 70.42 | 85.21 | |
| No information available, not orderable | ||||
| 28 | xxx | |||
| Cable clamp CTN ET-BG | ||||
| 29 | 200586 | 3.43 | 4.15 | |
| Hood ET-BG CT 26/36 | ||||
| 30 | 496250 | 43.32 | 52.42 | |
| Flexible lead p ET-BG CT26/36 USA | ||||
| 32 | 496773 | 22.38 | 27.08 | |
| Oval head screw PT 5,0x30 T25 | ||||
| 33 | 467456 | 1.39 | 1.68 | |
| Reservoir seal CT N ET-BG | ||||
| 34 | 201007 | 25.05 | 30.31 | |
| Filter holder ET-BG CT26/36 | ||||
| 35 | 496255 | 25.77 | 31.18 | |
| Filter case AC I - II ET-BG | ||||
| 36 | 500203 | 265.60 | 321.38 | |
| Filter case CT 26/36 AC ET-BG | ||||
| 36 | 201806 | 124.15 | 150.22 | |
| Cover CT26/36 ET-BG | ||||
| 37 | 201975 | 42.11 | 50.95 | |
| Sound insulatio ET-BG CT26/36 | ||||
| 38 | 496258 | 36.42 | 44.07 | |
| Cable bushing CTN ET-BG | ||||
| 39 | 200584 | 15.12 | 18.30 | |
| Cable harness CTN ET-BG | ||||
| 40 | 200565 | 8.98 | 10.87 | |
| Clamp ET-BG CT26/36 | ||||
| 41 | 496262 | 19.48 | 23.57 | |
| Solenoid ring CT 26/36 ET-BG | ||||
| 42 | 200594 | 6.86 | 8.30 | |
| Packing set ET-BG CT26/36 | ||||
| 43 | 496263 | 24.32 | 29.43 | |
| No information available, not orderable | ||||
| 44 | 496264 | |||
| Brush ET-BG 240v CT26/36 | ||||
| 45 | 496268 | 37.63 | 45.53 | |
| Sealing set ET-BG CT26/36 | ||||
| 46 | 496256 | 21.90 | 26.50 | |
| Cover CT26/36 ET-BG | ||||
| 47 | 201975 | 42.11 | 50.95 | |
| Electrical outlet module Modul SD E/A | ||||
| 50 | 496405 | 59.39 | 71.86 | |
| Electrical outlet module Modul SD | ||||
| 50 | 496142 | 59.39 | 71.86 | |
| Cable harness Magnet Ct 26/36 AC ET-BG | ||||
| 51 | 200889 | 24.20 | 29.28 | |
| Rest CT 26/36 AC ET-BG | ||||
| 52 | 200855 | 14.28 | 17.28 | |
| Damper ring CT 26/36 AC ET-BG | ||||
| 53 | 200854 | 18.76 | 22.70 | |
| Solenoid CT 26/36 AC ET-BG | ||||
| 54 | 200852 | 59.77 | 72.32 | |
| Magnetic holder CT 26/36 AC ET-BG | ||||
| 55 | 200853 | 12.03 | 14.56 | |
| Spring CT 26/36 AC II ET-BG | ||||
| 56 | 201004 | 17.30 | 20.93 | |
| Spring plate CT-N ET-BG | ||||
| 60 | 200528 | 17.42 | 21.08 | |
| Valve collar CT N AC ET-BG | ||||
| 61 | 498827 | 30.37 | 36.75 | |
| Bolt CT 26/36 ET-BG | ||||
| 62 | 500314 | 17.42 | 21.08 | |
| Bolt CT 26/36 ET-BG | ||||
| 63 | 500314 | 17.42 | 21.08 | |
| Rest Filtersack CT N ET-BG | ||||
| 64 | 200591 | 8.62 | 10.43 | |
| No information available, not orderable | ||||
| 65 | xxx | |||
| Contact ET-BG CT26/36 | ||||
| 66 | 496221 | 23.72 | 28.70 | |
| Muff CT 26/36 ET-BG | ||||
| 67 | 200568 | 12.03 | 14.56 | |
| Restrictor ET-BG CT36 | ||||
| 69 | 496267 | 19.48 | 23.57 | |
| Leg CT 26/36 ET-BG | ||||
| 70 | 500317 | 26.02 | 31.48 | |
| Torsion spring CT MINI ET-BG | ||||
| 71 | 200539 | 3.17 | 3.84 | |
| Leg CT 26/36 ET-BG | ||||
| 72 | 500317 | 26.02 | 31.48 | |
| Holder Lenkrolle CT26/36 ET-BG | ||||
| 74 | 200593 | 10.37 | 12.55 | |
| ROLLER CT | ||||
| 75 | 452840 | 18.76 | 22.70 | |
| Container ET-BG CT 36 | ||||
| 76 | 496232 | 80.34 | 97.21 | |
| Pipe CTN ET-BG | ||||
| 77 | 200571 | 16.82 | 20.35 | |
| Wheel ET-BG CT26/36 | ||||
| 78 | 496230 | 32.91 | 39.82 | |
| Tooth ring CT 17 ET-BG | ||||
| 79 | 202484 | 3.18 | 3.85 | |
| Wheel cover D200 CT 26/36 ET-BG | ||||
| 80 | 200570 | 10.34 | 12.51 | |
