Here you will find all available parts and drawings of the 'Festool 494406 (CTM22ESG230V)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

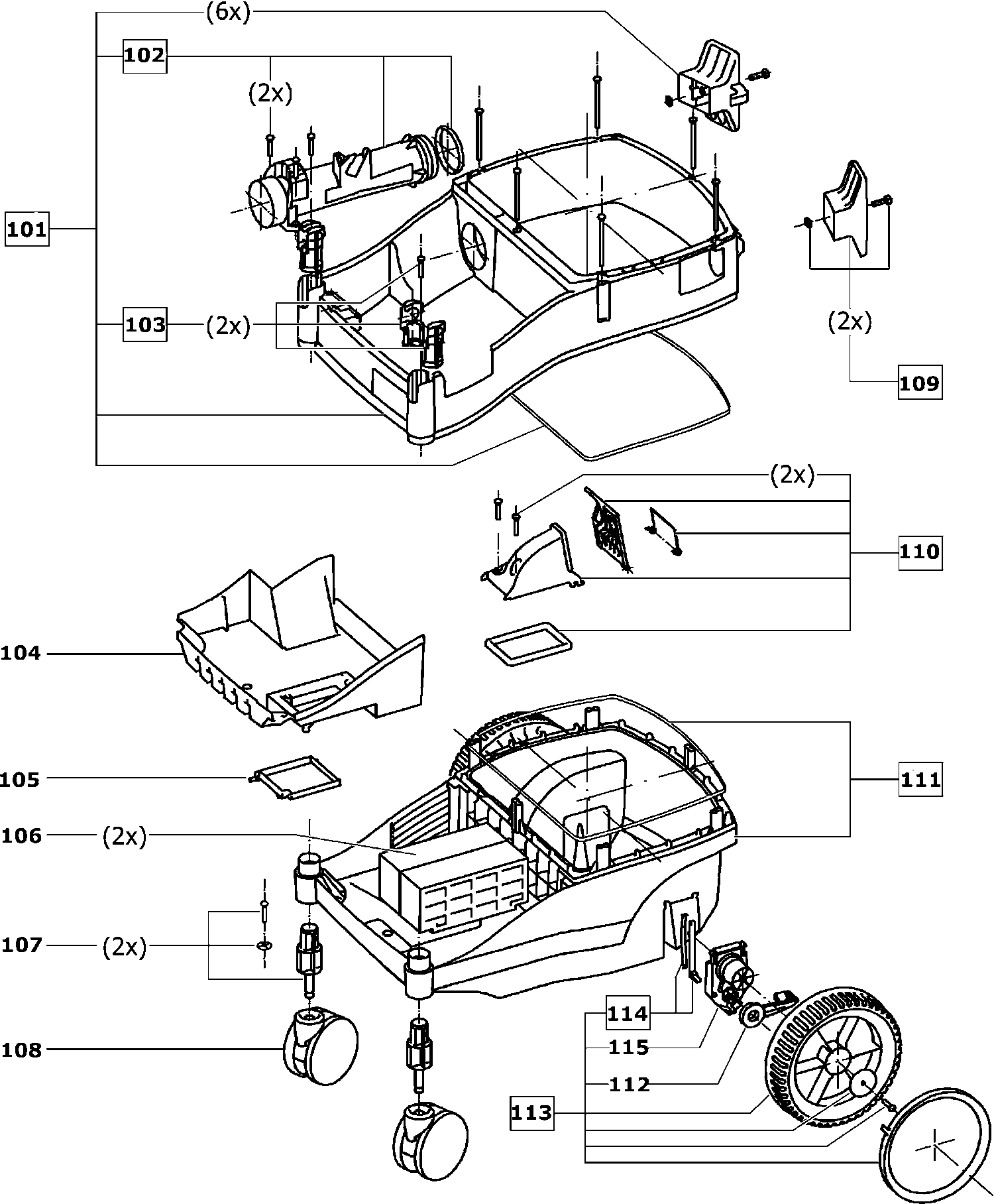

Technical drawing of model Festool 494406 (CTM22ESG230V)
Spare parts list of model Festool 494406 (CTM22ESG230V)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 452992 | |||
| SOCKET CT 16A/250V | ||||
| 2 | 452857 | 34.97 | 42.31 | |
| Cover CT Steckdose mit Rahmen | ||||
| 3 | 200504 | 13.43 | 16.25 | |
| SWITCH CT I/0/AUTO | ||||
| 4 | 452862 | 19.60 | 23.72 | |
| STOP SPRING CT | ||||
| 5 | 452477 | 1.58 | 1.91 | |
| ELECTRONIC CT FLOW | ||||
| 6 | 456774 | 132.25 | 160.02 | |
| Signal generato CT B22/EC ET-BG | ||||
| 7 | 498674 | 52.27 | 63.25 | |
| No information available, not orderable | ||||
| 8 | 452866 | |||
| FILTER HOUSING CT | ||||
| 9 | 452869 | 85.91 | 103.95 | |
| No longer available, no replacement | ||||
| 10 | 452993 | |||
| No longer available, no replacement | ||||
| 11 | 452854 | |||
| HOOD CT | ||||
| 12 | 454966 | 134.19 | 162.37 | |
| CLAMP CT | ||||
| 13 | 452858 | 14.64 | 17.71 | |
| No longer available, no replacement | ||||
| 14 | 452012 | |||
| HANDLE CT | ||||
| 15 | 452864 | 12.87 | 15.57 | |
| FORK CT | ||||
| 16 | 452021 | 9.58 | 11.59 | |
| No longer available, no replacement | ||||
| 17 | 452870 | |||
| SEALING-SET CT | ||||
| 18 | 454750 | 28.31 | 34.26 | |
| FILTER HOLDER CT-STANDARD | ||||
| 19 | 452960 | 50.58 | 61.20 | |
| CABLE WITH PLUG CT DIN-H07RN-F 7,5M | ||||
| 20 | 452078 | 70.42 | 85.21 | |
| No longer available, no replacement | ||||
| 21 | 452871 | |||
| Clamp rail 3-polig 300V/16A | ||||
| 22 | 452099 | 7.56 | 9.15 | |
| No longer available, no replacement | ||||
| 23 | 452872 | |||
| DRIVE UNIT CT DOMEL 230V | ||||
| 24 | 454737 | 200.86 | 243.04 | |
| No information available, not orderable | ||||
| 25 | 452968 | |||
| No information available, not orderable | ||||
| 26 | 452873 | |||
| SUPPORT CT | ||||
| 27 | 452091 | 3.10 | 3.75 | |
| No longer available, no replacement | ||||
| 28 | 454746 | |||
| No information available, not orderable | ||||
| 29 | 454748 | |||
| BRUSH CT DOMEL | ||||
| 30 | 452876 | 43.92 | 53.14 | |
| SOUND INSULATOR CT | ||||
| 31 | 454747 | 18.76 | 22.70 | |
| HOOD CT | ||||
| 32 | 454749 | 82.52 | 99.85 | |
| Blanking plug | ||||
| 33 | 452899 | 18.00 | 21.78 | |
| PTC CT | ||||
| 34 | 452149 | 7.42 | 8.98 | |
| CONTAINER CT | ||||
| 101 | 452848 | 166.74 | 201.76 | |
| No information available, not orderable | ||||
| 102 | 452846 | |||
| BEARING SHELL CT | ||||
| 103 | 452847 | 15.37 | 18.60 | |
| No information available, not orderable | ||||
| 104 | 452845 | |||
| DOOR CT | ||||
| 105 | 452955 | 30.61 | 37.04 | |
| No information available, not orderable | ||||
| 106 | xxx | |||
| Cable hook CT ET-BG | ||||
| 107 | 452837 | 19.00 | 22.99 | |
| No information available, not orderable | ||||
| 108 | xxx | |||
